API Cast Steel/ Carbon Steel/ Stainless Steel Pneumatic Actuated Fluorine Lined Ball Valve

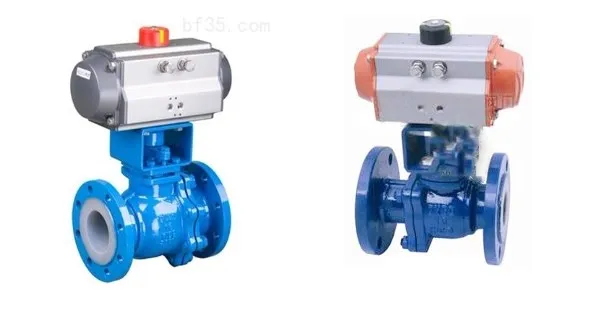

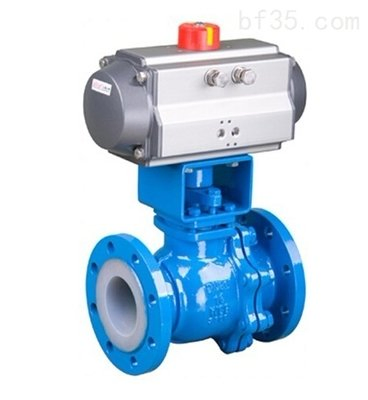

PN16 Flow Master Forged Fluorine Lined Ball ValveSummary: Q641F46 pneumatic fluorine lined ball valve is designed for the automatic opening and closing control of various highly corrosive medium pipelines, widely applicable to petroleum, chemical industry, dyeing, acid production and so on. It is o......
Send Inquiry
Product Description
PN16 Flow Master Forged Fluorine Lined Ball Valve
Summary:
Q641F46 pneumatic fluorine lined ball valve is designed for the automatic opening and closing control of various highly corrosive medium pipelines, widely applicable to petroleum, chemical industry, dyeing, acid production and so on. It is one of the most ideal choice of anticorrosive valve equipment. Pneumatic lined teflon ball valve is lined with fluorine plastic, the shell is precision cast by investment mold, high strength, bright and clean appearance, all parts in contact with liquid are fluorine plastic. So pneumatic rubber fluorine ball valve can be in - 50 ºC ~ + 180 ºC within the scope of use for a long time in any concentration of rotting sex pipeline, pipeline work alone.

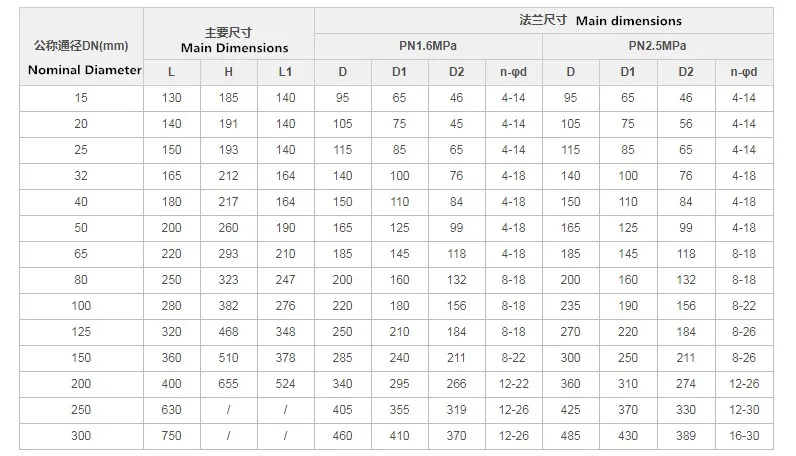

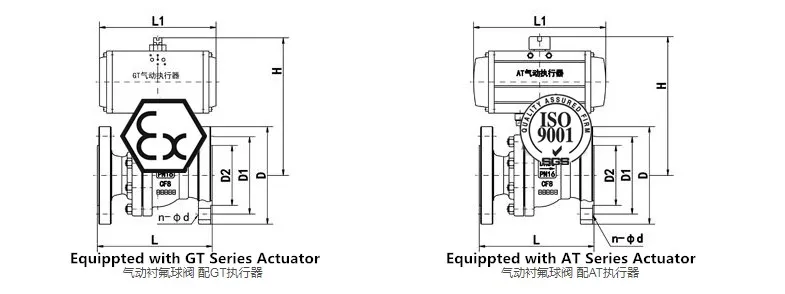

Main External Connection Dimensions
Pneumatic Fluorine Lined Flange Product Selection
(1) Valve body parameters: nominal size, working pressure, process medium, service situation, valve body material and other series parameters.
(2) Actuator parameters: actuator form, control mode, control signal (4-20ma, 1-5v), action mode (open air type; Air closed type)
Company Introduction
Zhitai Valve Co., Ltd is a member of Valve Association of Longwan District, is located in Longwan Central Industrial Zone, Wenzhou City. It'a professional technology company integrated with development, manufacturing, sales, and after-sales services of valve actuators and and self-controlled valves. Presently, our main products include: pneumatic actuators, pneumatic valves and pneumatic control valves; electric actuators, electeic valves and eletric control valves; automatic control products. Our products are widely applied in natural gas, electricity, petroleum, chemical, metallurgical, construction, pharmacy, paper, printing and dying. Zhitai series actuators and valves are the best choice for automatic fluid control engineering and equipment manufacturing. We sincerely welcome customers from home and abrode to visit us for supervision, communication and cooperation. It's a great honor for us to cooperate with you.
Q641F46 pneumatic fluorine lined ball valve is designed for the automatic opening and closing control of various highly corrosive medium pipelines, widely applicable to petroleum, chemical industry, dyeing, acid production and so on. It is one of the most ideal choice of anticorrosive valve equipment. Pneumatic lined teflon ball valve is lined with fluorine plastic, the shell is precision cast by investment mold, high strength, bright and clean appearance, all parts in contact with liquid are fluorine plastic. So pneumatic rubber fluorine ball valve can be in - 50 ºC ~ + 180 ºC within the scope of use for a long time in any concentration of rotting sex pipeline, pipeline work alone.
| Main Technical Parameters and Performance of Pneumatic Fluorine Ball Valve | |||
| Nominal Diameter | 15~300 | Actuator Type | GT;AT;AW;ST Series |
| Nominal Pressure | PN1.0MPa; PN1.6MPa | Air Supply | G1/4"; G1/8"; G3/8"; G1/2" |
| Valve Type | Floating Type/ Fixed Type | Environment Temperature | -30ºC~+70ºC |
| Conn Type | Flange | Action Type | Single action; Double action |
| Strim Type | "O" Type Spool | Accessory | Positioner/Air Filtration/Manual |
| Sealing Packing | PTFE | Features: Adopt new type pneumatic actuator, have double action type and single action type (spring reset). It is rack and pinion transmission, safe and reliable. Large diameter valves using AW series pneumatic actuator fork drive, reasonable structure, large output force, double acting and single acting. 1. Gear type double piston, large output torque, small volume. 2. The cylinder is made of aluminum alloy with light weight and beautiful appearance. 3. Manual operating mechanism can be installed at the top and bottom. 4, Rack type connection can adjust the opening Angle and rated flow. 5. The actuator can choose live signal feedback indication and accessories to realize automatic operation. 6. IS05211 standard provides convenience for product installation and replacement. 7. Both ends of the adjusting screw can make standard product 0 ° and 90 ° the plus or minus 4 ° adjustable range, ensure the synchronization precision with the valve. | |
| Flow Characteristic | Approximately Fast Open | ||
| Action Range | 0º~90º | ||
| Leak Amount(Q) | Soft Seal: Zero Leakage | ||
| Working Temperature | PTFE≤180ºC | ||
| Intrinsic Error | With indicator: ≤Whole trip±2% | ||
| Dead Zone | With indicator: ≤Whole trip of 2% | ||
| Adjustable Range | 250:1 | ||
| Actuator | GT;AT;AW;ST Series Pneumatic Actuator | ||
Control Type | ON-off Type; 4-20mA Type | ||
| Design Standard of Pneumatic Fluorine Ball Valve | |
| Design and Manufactur | GB12237-89. API608. API 6D, JPI 7S-48. BS5351. DIN3357 |
| Flange Size | JB/T74~90,GB9112~9131,HGJ44-76,SH3406,ANSIB16.5,JISB2212-2214,DIN2543 |
| Structure Length | GB12221-89,ANSIB16.10,JISB2002,NFE29-305,DIN3202 |
| Inspection and Test | JB/T9092, API 598. GB/T1392 |
| Material of Main Parts | ||||
| Patrs Name | Material | |||
| Body&Bonnet | WCB+F46 | 304(CF8)+F46 | 316(CF8M)+F46 | 316L(CF3M)+F46 |
| Ball | 2Cr13+nitriding+F46 | 304+F46 | 316+F46 | 316l+F46 |
| Stem | 2Cr13+F46 | 304+F46 | 316+F46 | 316l+F46 |
| Sealing Ring | PTFE+Carbon fiber | |||
| Sealing Packing | V-type PTFE | |||
