API 6D Forged Stainless Steel F316 Full Bore Flange Ends Trunnion Mounted Ball Valve
Product DescriptionAPI 6D forged stainless steel F316 full bore flange ends trunnion mounted Ball ValveThree Piece Forged Steel Ball ValveSplit BodyBolted Bonnet Fire Safe Design API 6Fa/API607Anti-static Design & Blow-out proof stemDesign standard: API6DFlanged Ends to ASME B16.5Testing accordi......
Send Inquiry
Product Description

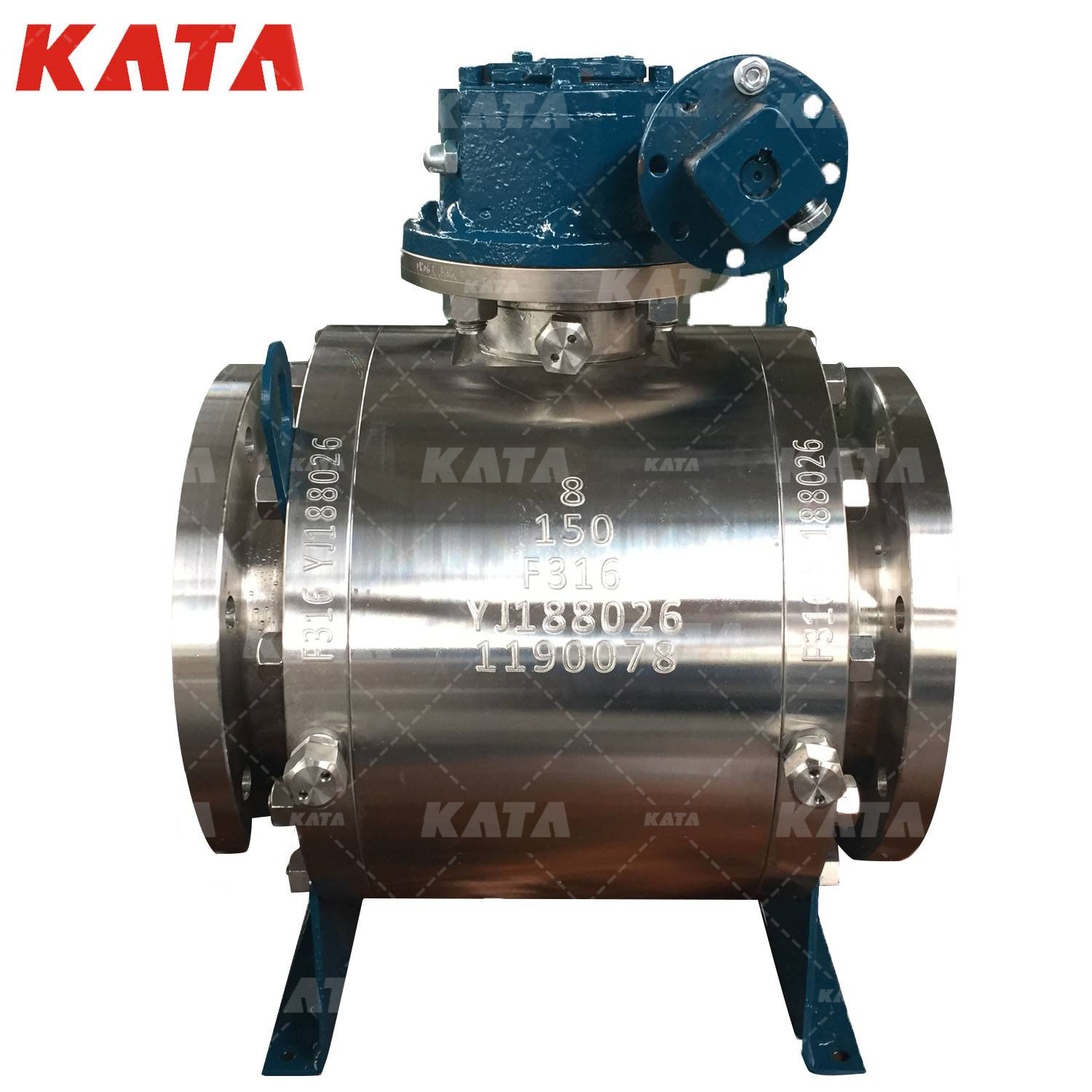

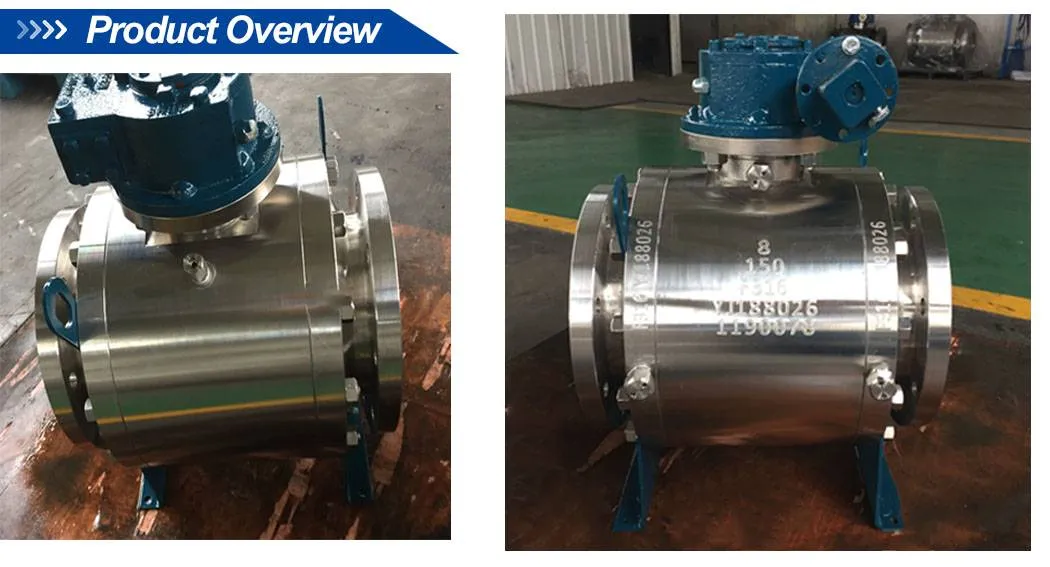

API 6D forged stainless steel F316 full bore flange ends trunnion mounted Ball Valve
Three Piece Forged Steel Ball ValveSplit Body
Bolted Bonnet
Fire Safe Design API 6Fa/API607
Anti-static Design & Blow-out proof stem
Design standard: API6D
Flanged Ends to ASME B16.5
Testing according to API 598
Marking: as per MSS SP-25
Normal Size Range
2"~56"
Pressure Rating
CLASS150~2500
Structual Features
1. Double Block And Bleed(DBB)
2. Low Operating Torque
3. Emergency Sealing Device
4. Fireproof Structure Design
5. Anti-static Structure
6. Reliable seat sealing structure
7. Blow-out Proof Stem
8. Corrosion Resistance And Sulfide Stress Resistance
Advantage
KATA ball valves are all designed with reasonable dimensions and outlook. It's size ranges from 2" to 56", with pressure rating from class 150 to class 2500. From 6'' and above, it's all designed with support plate structure instead of trunnion mounted. This design can greatly reduce the torque and external leakage point of the valve, ensuring that the drain valve at valve bottom is installed directly below the valve, so that residue can be completely drained when the valve works to clear the pipe.
Main Part & Materials
| Part Names | Part Materials | ||||||
| Body | WCB/A105 | LCB/LF2 | WC6/F22 | CF8/F304 | CF8M/F316 | CF3/F304L | CF3M/F316L |
| Bonnet | WCB/A105 | LCB/LF2 | WC6/F22 | CF8/F304 | CF8M/F316 | CF3/F304L | CF3M/F316L |
| Ball | A105+ENP | SS304 | F22 | SS304 | SS316 | SS304L | SS316L |
| Stem | A105 | F304 | F6a | F304 | F316 | F304L | F316L |
| Seat/Seat Ring | PTFE/RPTFE/NYLON/DEVLON/PEEK or METAL | ||||||
| Packing | Graphite/PTFE | ||||||
| Gasket | SS304+Graphite/SS304+Graphite | ||||||
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | |||||
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C |

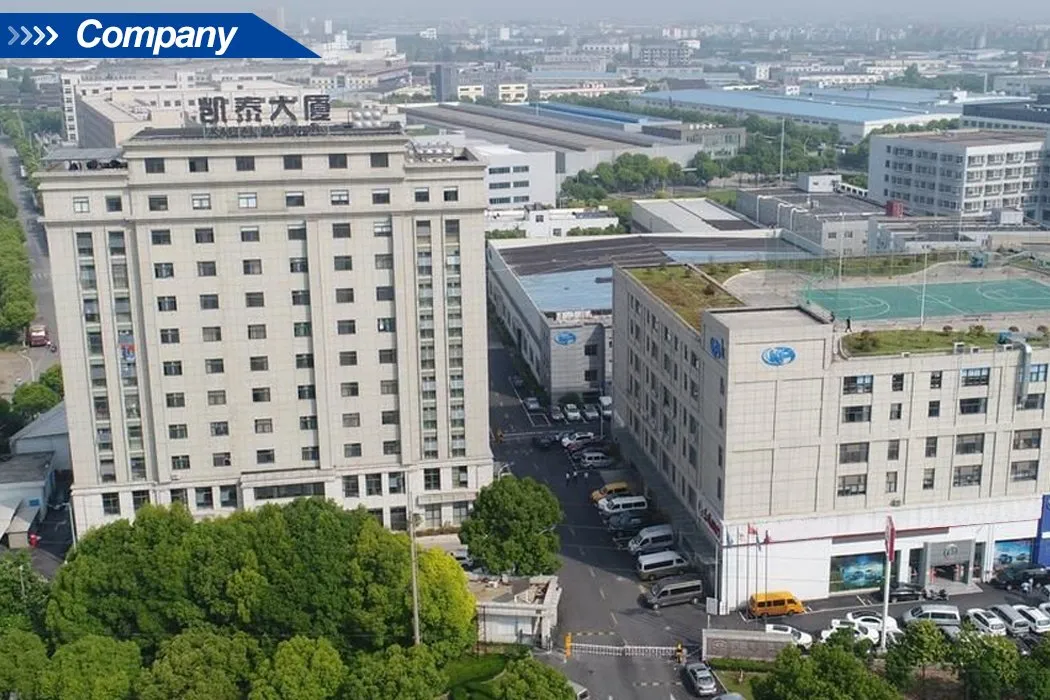

Kaitai Valve Group is headquartered at Shanghai China, occupying over 35 thousands square meters. The registration capital of the whole Group comes to RMB 11321 Millions. With an experience of about 30 years in manufacturing all kinds of valves, Kaitai specializes in designing, making and marketing valves for all industries. Its products range from Ball, Butterfly, Gate, Globe, Check, Plug valves to Marine valves and other valves; nominal size from 1/2" to 48"(DN 15 to DN 1200) nominal pressure form 150 Lb to 2500Lb(PN1.0Mpa to PN42.0Mpa); materials cover WCB.. WCC. WC6. WC9, CF8, CF3, CF3M,LCB,LCC. SS304,SS316,SS304L,SS316L, F11, F22, LF2, F51, etc.The products are widely used in the fields of petroleum, chemical metallurgy, power, fuel gas, city pipeline networks and so on. Certificated with ISO9001. API6D.CE/PED and etc.. Kaitai has developed excellent quality control and management system.
Kaitai has a series of modern machines and equipment such as vertical lathes, drill press, milling lathe, grinding machine, other general machine tools and physical & chemical analysis & experiment devices. Also it has developed a well-trained and dedicated team including engineers, technicians and other employees. This allows us to offer customers quality products, competitive prices and prompt deliveries. We always work hard to improve our existing products and pursue new ideas and ways to stay ahead of the ever changing market.
Q1: What is your lead-time?
A1: Generally it's 5-10 days, if there is the stock. Or it's 30-90 days depend on different product and quantity.
Q2: What about the payment term?
A2: T/T, LC, West Union, or negotiation .
Q3: Can I have a sample order?
A3: Yes, we could offer the free valve sample, but the freight cost needs to be paid by yourself.
Q4: What's your MOQ?
A4: 1 pc order can be accepted here.
Q5: What's your quality inspection? Do you test all your goods before delivery?
A5: Yes, 100% test. It integrates R&D, casting, production, processing, painting, assembly, testing, sales and after-sales service, and strict quality requirements, according to GB, ASME, API, DIN standard.
Q6: Could I customize special request valve or new design products?
A6: We had our R &D dept. to meet your demands for the valves. The ODM & OEM can be accepted here.
Q7: What certificate your company has?
A7: We had the certificates as ISO9001, ISO14001, ISO15848-1, API Q1, API6D, API607, SIL and CE/PED.
