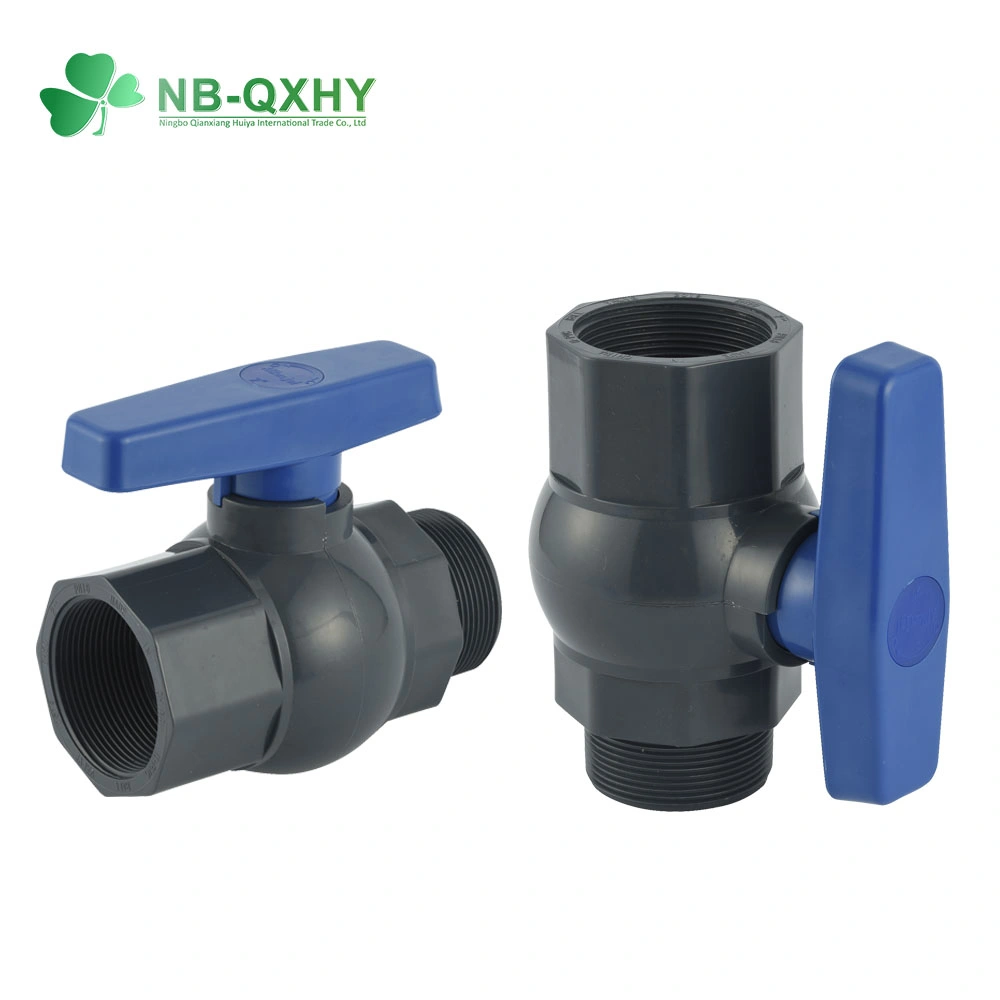

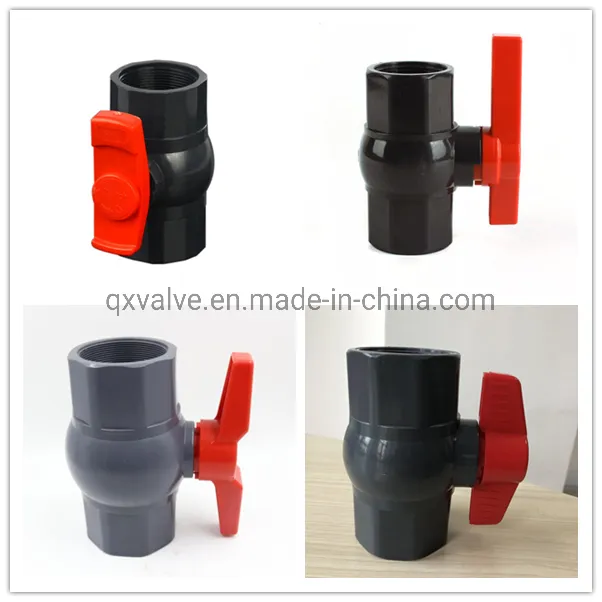

Agricultural Irrigation System PVC Ball Valve Male Female Threaded Valve
Agricultural Irrigation System PVC Ball Valve Male Female Threaded Valve 1.Product Introduction & Application PVC valve is mainly used to cut off or turn on the medium in the pipeline, and can also be used for fluid regulation and control. Our pvc valve is 100% new material.The application of pv......
Send Inquiry
Product Description
1.Product Introduction & Application
The application of pvc valve:
* Water supply
* Swimming pool
* Agricultural field
* Irrigation system
* Waste water treatment
* Other applications field
2. Product Parameters
Item Name: Ball valve
Material: PVC/UPVC/CPVC/PP
Standard: DIN/BS/ANSI/JIS/CNS/NPT/BSPT
Pressure: Normal/low/high pressure
Temperature: Normal Temperature
Handle: Butterfly Handle, long handle,etc. Determined by customer
Color: Many colors available for choice
Packing: Carton, Polybag, Color Box or Customized
SIZE: 1/2"-4"
Delivery port:Ningbo by sea
| NO. | PART | Material | QTY |
| 1 | Handle | PP, ABS, PVC | 1 |
| 2 | Body | UPVC, CPVC, PP | 1 |
| 3 | Stem | PP | 1 |
| 4 | O-Ring | EPDM, NBR | 1 |
| 5 | Seat Seal | TPE, PTFE | 2 |
| 6 | Ball | PP, UPVC, CPVC | 1 |
PVC Ball Valve International Standard Introduce
| SIZE | DIN(MM) | BS(MM) | JIS(MM) | ANSI(MM) | NPT THREADED | BSPT THREADED |
| DN15 (1/2") | 20 | 21.5 | 22.11 | 21.6 | 14 | 14 |
| DN20 (3/4") | 25 | 26.9 | 26.13 | 26.9 | 14 | 14 |
| DN25 (1") | 32 | 33.7 | 32.16 | 33.8 | 11.5 | 11 |
| DN32( 1 1/4") | 40 | 42.2 | 38.19 | 42.4 | 11.5 | 11 |
| DN40(1 1/2") | 50 | 48.4 | 48.21 | 48.5 | 11.5 | 11 |
| DN50 (2") | 63 | 60.5 | 60.25 | 60.7 | 11.5 | 11 |
| DN65( 21/2") | 75 | 75.3 | 76.6 | 73.4 | 8 | 11 |
| DN80 (3") | 90 | 89 | 89.6 | 89.4 | 8 | 11 |
| DN100 (4") | 110 | 114.5 | 114.7 | 114.8 | 8 | 11 |
| DN125 (5") | 140 | 140.6 | 140.7 | 141.3 | ||
| DN150(6") | 160 | 165.1 | 165.1 | 168.3 |
PVC Ball Valve Weight and Packing Size
| SIZE | Round TYPE Weight (G) | PCS/CTN | PACKING SIZE (MM) |
| DN15 (1/2") | 72 | 300 | 470*330*310 |
| DN20 (3/4") | 103 | 200 | 470*330*320 |
| DN25 (1") | 171 | 120 | 470*330*330 |
| DN32( 1 1/4") | 248 | 84 | 470*330*340 |
| DN40(1 1/2") | 358 | 54 | 470*330*340 |
| DN50 (2") | 548 | 30 | 470*330*295 |
| DN65( 21/2") | 1129 | 20 | 400*300*420 |
| DN80 (3") | 1750 | 12 | 420*360*390 |
| DN100 (4") | 3000 | 8 | 370*330*510 |
| DN125 (5") | 3300 | 6 | 530*520*230 |
| DN150(6") | 8821 | 2 | 515*255*440 |
3. Features
- High strength. The strength and anti-aging properties are 3-5 times that of ABS and PP. It can basically achieve no fading, small shrinkage of materials and beautiful appearance.
- Anti-sediment & anti-lock structure.
- Light weight, handle can be easily pulled.
- No leak water.
- The ball core is unified into a white ball core.
- Easy to install.
- 100% new material.
4. FAQ
A: Advantage
(1) High pressure can stand: PN10, PN16, PN35, PN40; 150psi, 235psi etc, as customers' request;
(2) Well and high quality control, within 1% leakage;
(3) Environment friendly, non-toxic, good looking and long service life;
(4) Light weight, easy to handle and transport;
(5) Soft colors and excellent design, suitable for installation either exposed or hidden;
(6) Wonderful ability in chemical corrosion resistance;
(7) Easy and fast installation, making cost minimized;
(8) Widely used in building, irrigation, industry and swimming pool;
(9) Small order acceptable;
(10) Customer's design and logo are welcome.
B Why choose QX?
(1) We provide OEM service and submit Various styles, latest designs to our clients;
(2) We work with big customers in Southeast Asia, Africa, Middle east, North America, South America;
(3) According to the needs of customers in different regions, we match different quality and thickness valves with various styles, so that our customers are very competitive in the market!
(4) Our high quality PVC valve can be consistent with European and American national brand valves!
(5) We have great experience on providing high quality products and most professional service to clients about 10 years more!
(6) Customers choose our products, can mix and match our PVC pipe fittings, PVC butterfly valves, PP Fittings, irrigation products to buy together, so that the customer product line is more abundant, both quality and delivery time are guaranteed.
(7) We can flexible from China any port export ! Welcome you inquiry us!

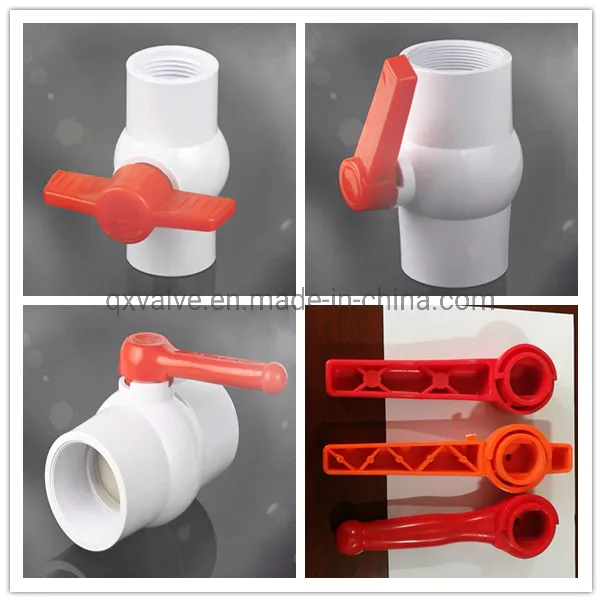

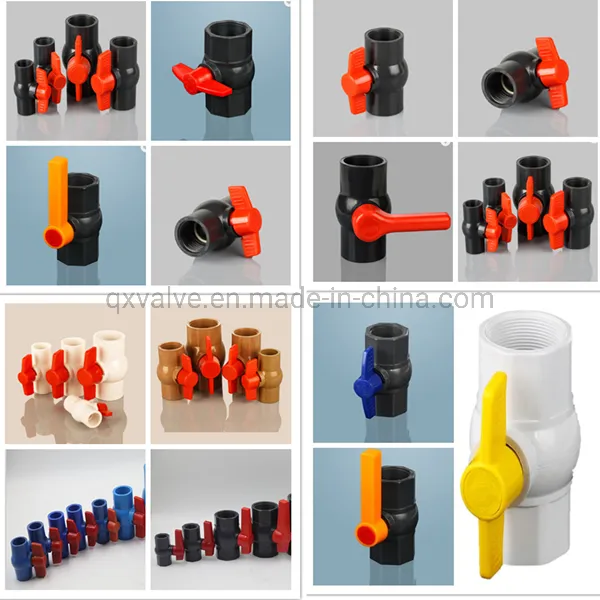

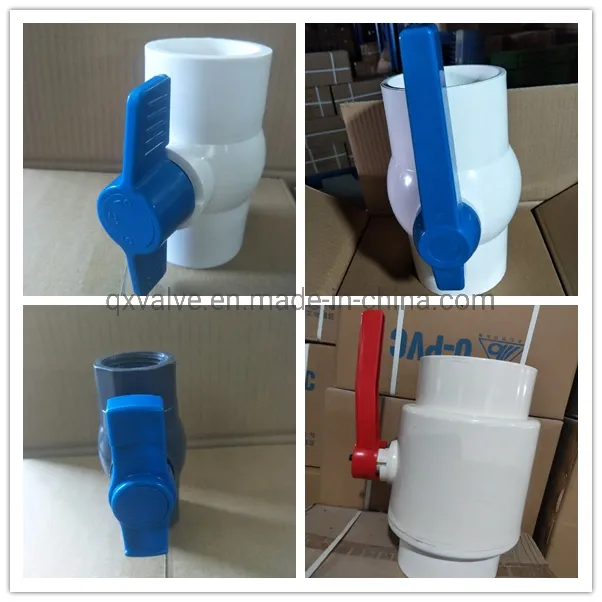

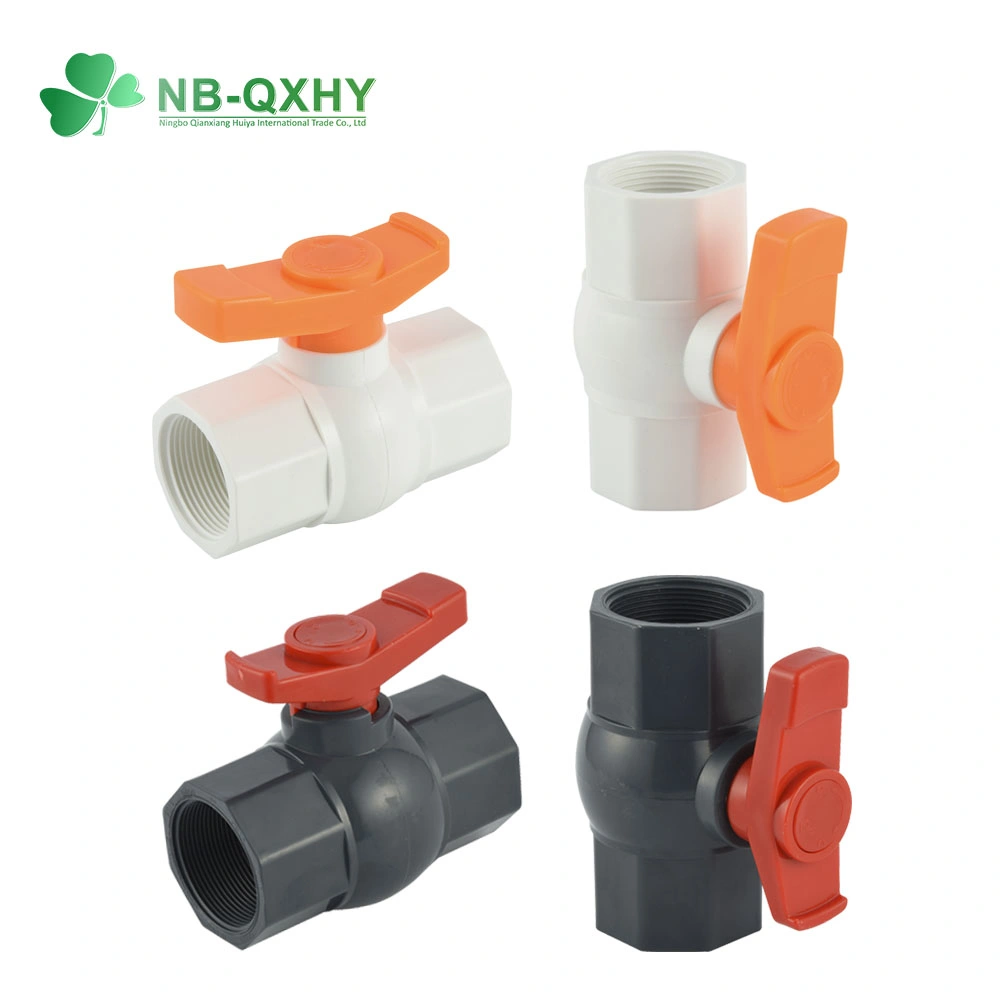

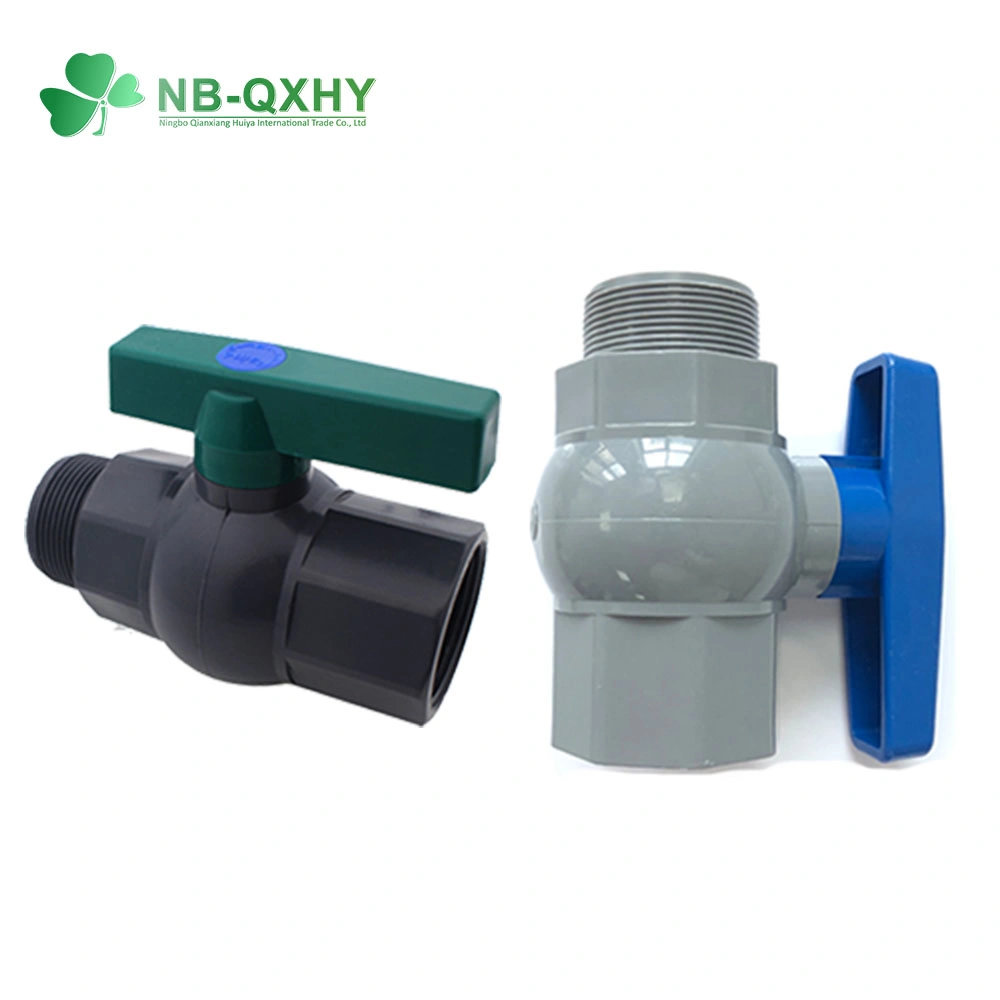

5. Product Display:
6.PVC Ball Valve Packing Way and Export Photo

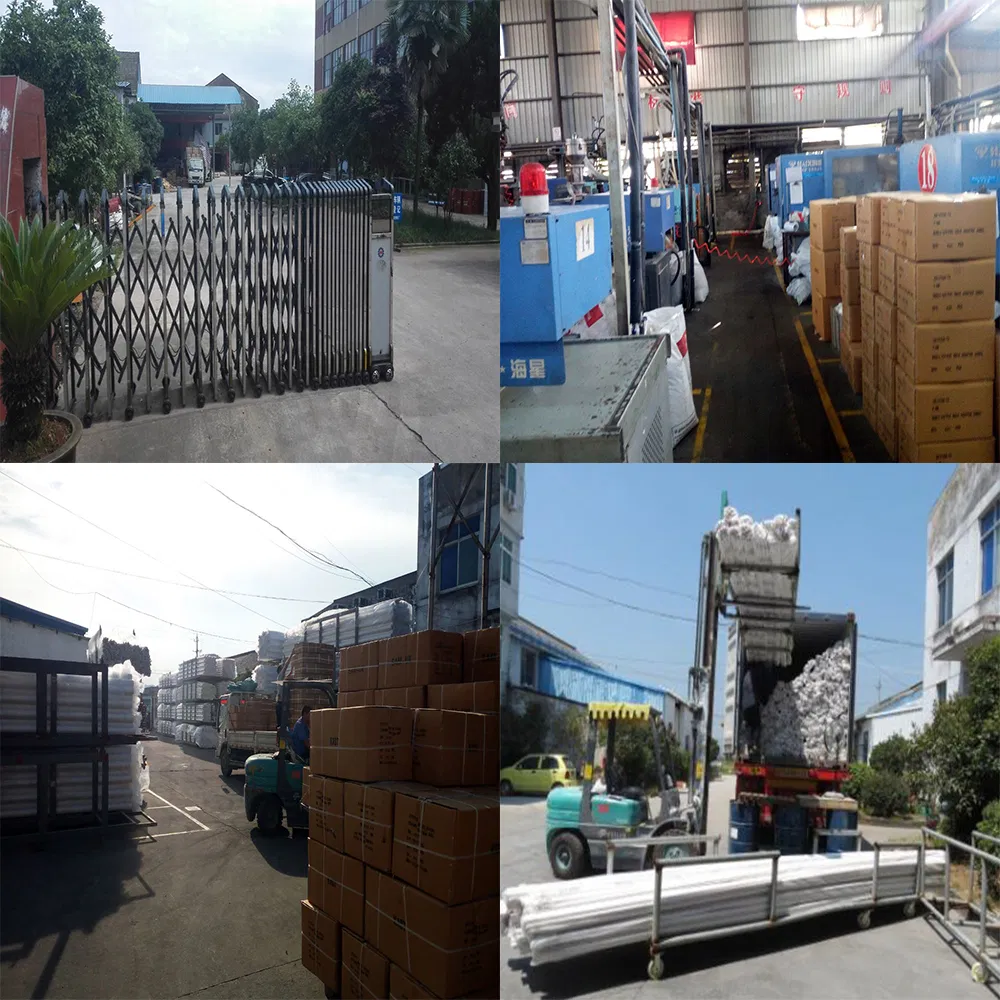

7. About us
Ningbo Qianxiang Huiya International Trade Co., Ltd (Set up in 2012) is a professional supply plastic valve/fitting and irrigation products company!
We can be flexible operation, fast professional services, matching to help customers purchase building materials demand products!

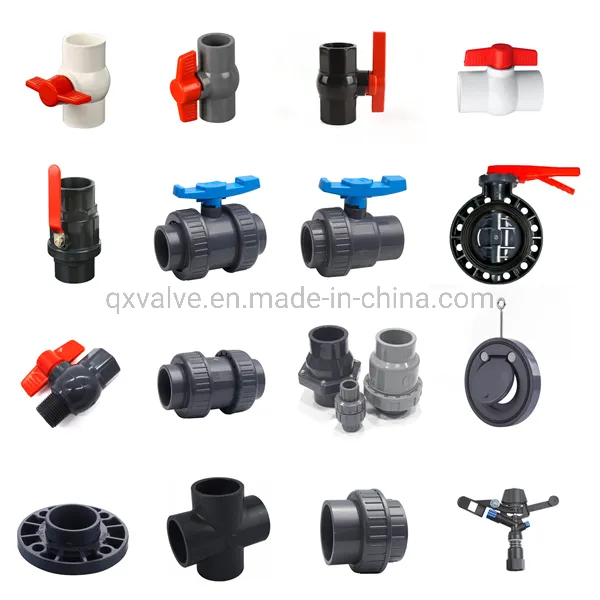

We supply detail like kinds of PVC ball valve, PVC union valve, butterfly valve, PVC fitting, PP fitting, PP saddle clamp, sprinkler, PVC layflat hose, drip pipe and so on other for irrigation use prodcuts.
Our development philosophy is
1, Quality first, customer supreme!
2, Keep innovate and keep going beyond!
3, Unique to stay ahead!
We sincerely invite all domestic and overseas clients to come to advise and cooperation.
