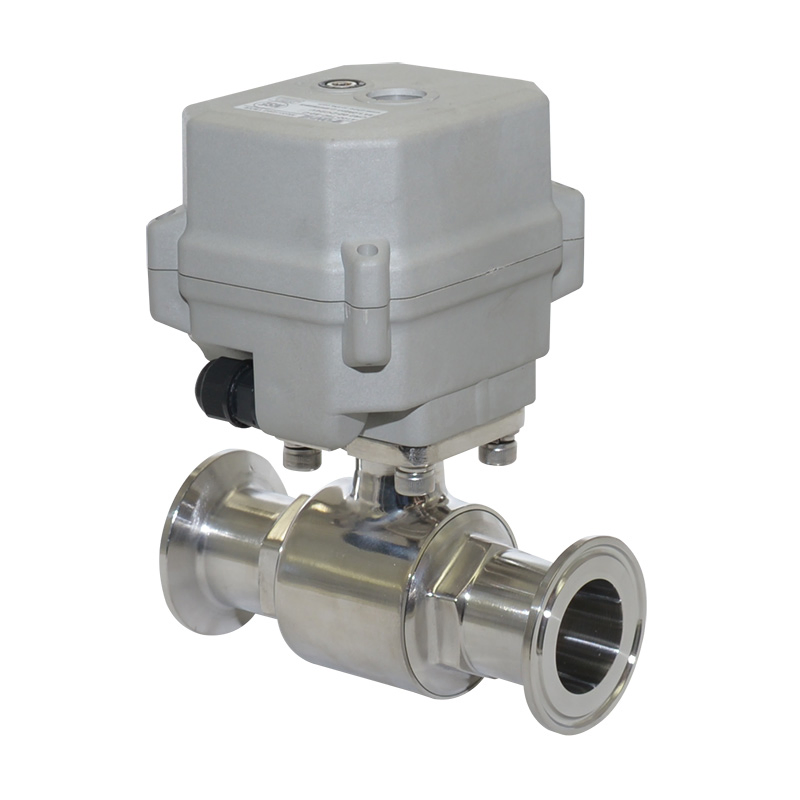

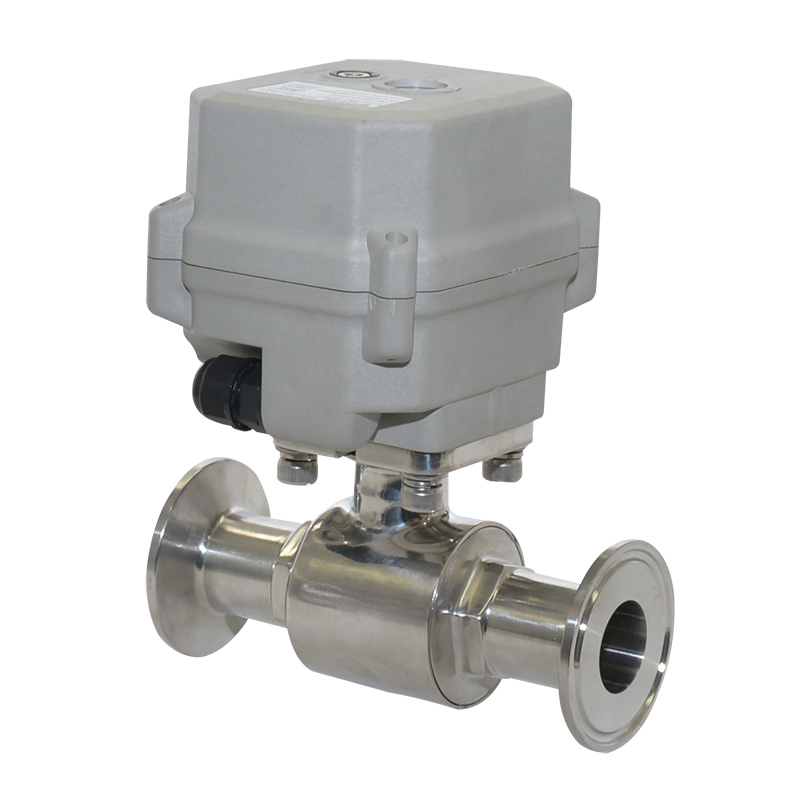

A150 Series 2 Way 1' 25mm Tri Clamp Electric Ball Valve with Tri-Clamp Connection

Tonhe 2 way tri-clamp motorized control operated water ball valve for HVAC, size 1/2''-1.5'', different wiring, DC12V.DC24V, AC110-230V1.5MPa,CE ,IP67, Metal gears in actuators , longer working life.

Design feature
1. All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2. Small size, compact structure.
3. A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4. Good sealing performance

For occasions
1. IC card water meter, heat meter.
2. Air-conditioning fan coil, fire sprinkler.
3. Solar energy drain valve, high efficiency water-saving.
4. Automatic control systems, university water system, small-scale industrial automation equipment, environmental protection.

Detail description
Caliber size: 3/4'' 1''  11/4''
Medium pressure: ≤ . 1.5MPa
The pressure of valve broken: ≥ 3.5MPa
Circulation medium: Fluid
Rated voltage: DC12V/DC24V/ACDC110V-230V
Working current: ≤ 100mA
Open/close time: ≤ 12S
Extra long time: 50000 times
Body material: ss304
Actuator material: Alloy ABS
Airtight: Pressure 0.20PA, pressure maintaining 15s, Spillage≤ 0.122ml/s
Actuator rotation: 90°
Environment temperature: -10º C~55º C
Liquid temperature: 2º C~90º C
Manual override:YES
Wire Control: CR201/CR202/CR301/CR303/CR501

Design feature
1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback signal in place for computer intelligence unit testing.
4 Good sealing performance.

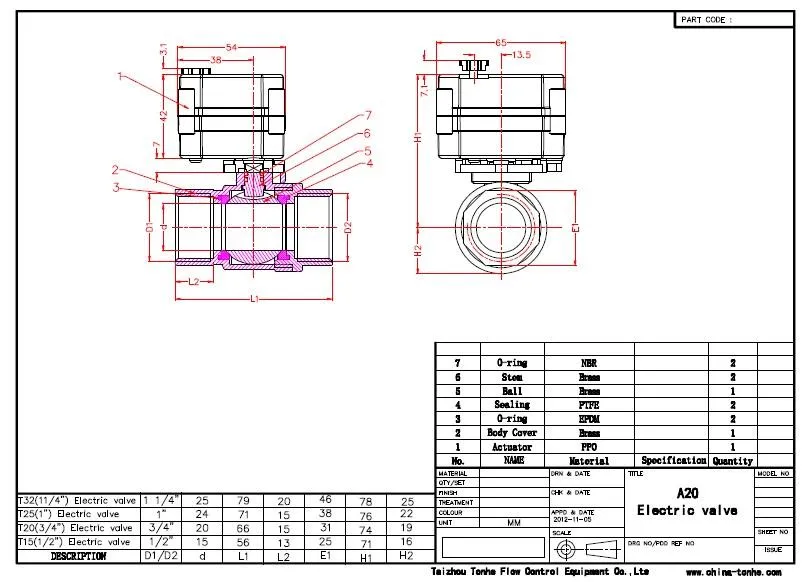

Valve asseble drawing  :

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4"~2'').And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

Our company also approved SGS ISO9001 in 2013 .

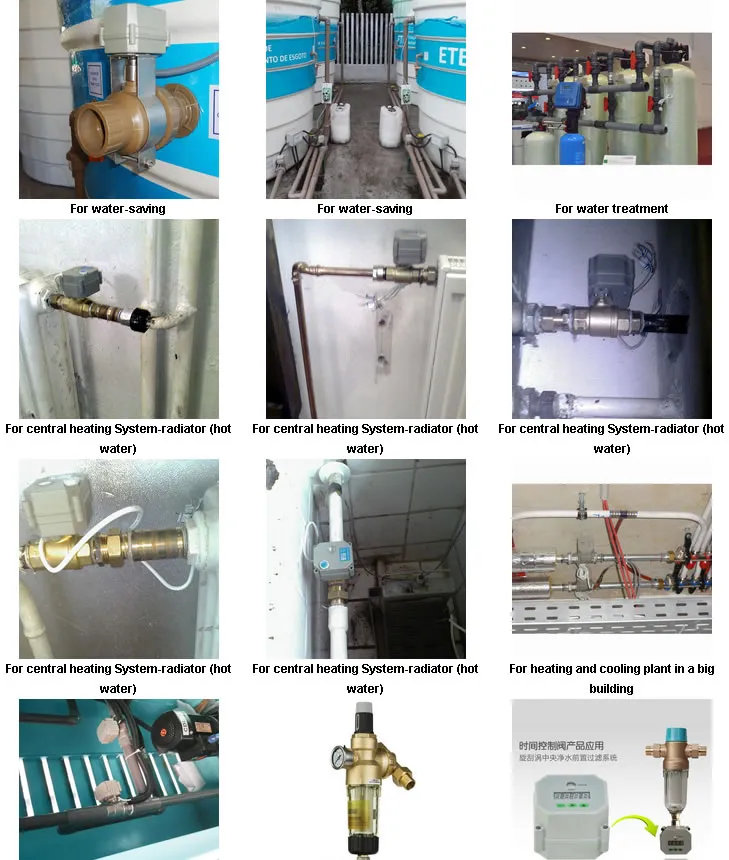

Application

Water meter , water leak detection system and water treatment etc equipment
HAV and fire works. Automatic drain system
Irrigation ect small control equipment



OUR SERVIC
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.


FAQ

Q. what is your payment term?

 A: T/T 50% down payment, balance to be paid before shipment. or L/C.

Q: what is your main market?

A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Q: How about your products and company approved?

 A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.

Q: Can I get samples from your factory?

A: Yes, Samples can be provided.

Q: If products have some quality problem, how would you deal with?

A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.

_{When you inquiry the product , pls confirm below techinical data :
1, valve size , material
2, working voltage
3, wire control
4, valve manual override & open or close indicator
5, actuator  cable length
then Nadine (Spype: nadine84081 ) will give you a reasonable price . thanks .}
