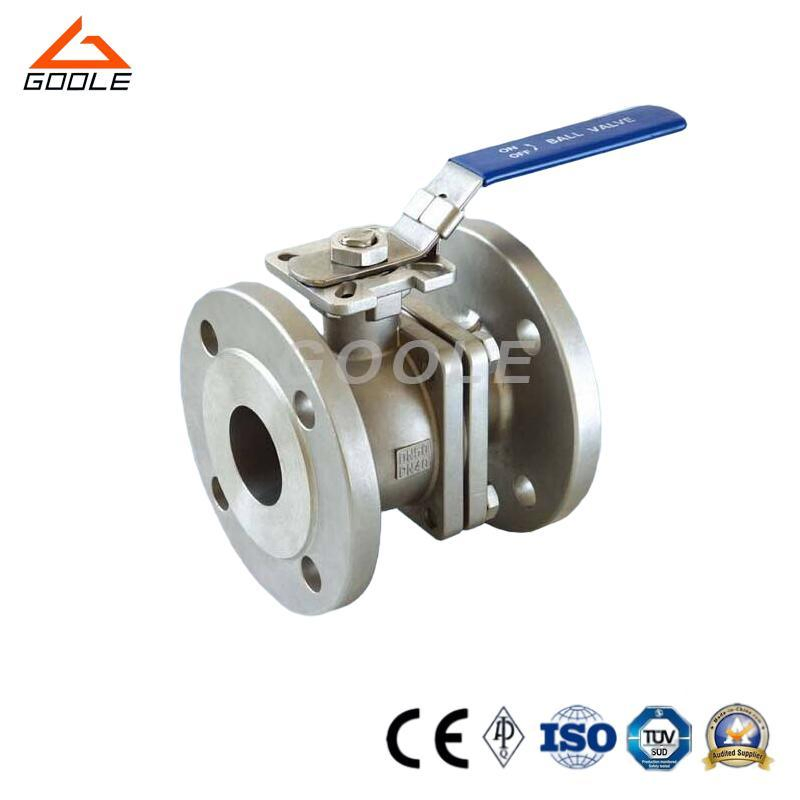

300lb 2PC Worm Gear Flanged Floating Ball Valve with ISO/ 5210 /5211 Mounting Pad

Send Inquiry

Product Description

Brief Profile.
Top entry ball valve is mainly used in petro/natural gas pipelines,oil extraction,oil refinery,chemistry,metallurgy,electricity,food,paper-maing.,etc industry sectors.It is easy to assemble and disassemble,maintenance is very convenient.When the valve happen to malfunction,no need to take the valve down from pipelines,just screw the bolts and nuts down from middle flange,take the bonnet and steam from the body,then take the ball and seat assembly out to repair,it save time greatly,reduce the loss caused by production interruption.top entry ball valve can be divided into floating ball type and trunnion mounted type.
Main Specification.

Design and manufacture confirm to ASME B16.34(BS 5351),API 608,MSS-SP-72,API 6D.
Face to face length confrim to ASME B16.10,NPS ≥ 26" per as ASME B16.47.
End connection confirm to ASME B16.5,ASME B16.25.
Inspection and test confirm to API 598.
Fire safe design confirm to API 6,

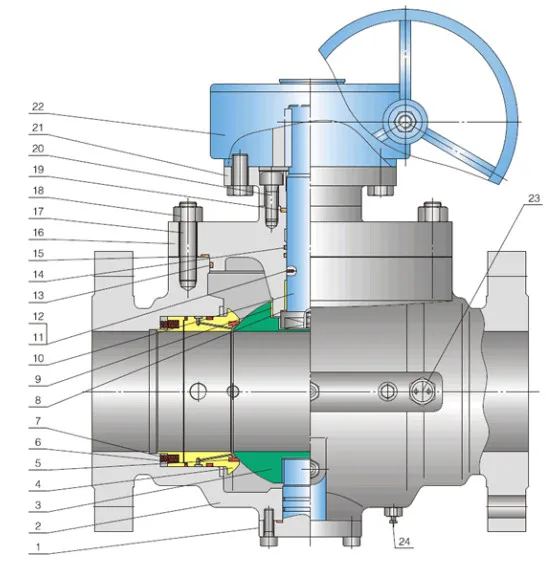

No.	Part Name	Part Material
1	Bonnet	WCB,LCB,CF8,CF3,CF8M,CF3M.,etc.
2	Body	WCB,LCB,CF8,CF3,CF8M,CF3M.,etc.
3	Ball	A105+ENP,A182-F6,F304,F304L,F316,F316L,F321,F51.,etc.
4	Seat Ring	A105+ENP,A182-F6,F304,F304L,F316,F316L,F321,F51.,etc.
5	Seat	PTFE,RPTFE,PEEK,PPL,NYLON,DEVLON.,etc.
6	Sealing Ring	Flexible Graphite.
7	Spring	SS 304,inconel x-750,1566+ENP.
8	Thrust Washer	PTFE,RPTFE,Stainless steel+N
9	Bearing	1045+RPTFE,SS 304+RPTFE,SS 316+RPTFE.
10	Stem	1045+ENP,A182-F6,F304,F304L,F316,F316L,F321,F51,17-4PH.
11	Spring	Ss 304,ss 316,ss 17-4PH
12	Ball	Ss 304,ss 316
13	O-ring	NBR,VITON
14	O-ring	NBR,VITON
15	Gasket	Ss 304,ss 316+flexible graphite.
16	Bonnet	WCB,LCB,CF8,CF3,CF8M,CF3M.,etc.
17	Nut	A194 2H,2HM,8,8M
18	Bolt	A193 B7,B7M,B8,B8M
19	Packing	PTFE,GRAPHITE
20	Bolt	A193-B7,B8
21	Yoke	WCB,CF8
22	Gear	Purchased
23	Grease fitting	1025,ss304,ss304L,ss316,ss316L,ss 321,F51.,etc
24	Drain valve and plug	1025,ss304,ss304L,ss316,ss316L,ss 321,F51.,etc

Class 150LB

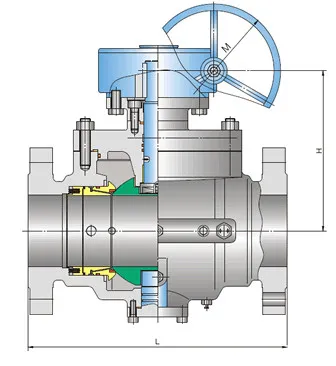

Size(in)	L			H	H1	M	W(kg)
Size(in)	RF	RTJ	BW	H	H1	M	W(kg)
2	292	295	292	218	83	180	15
3x2	356	359	356	218	83	180	18
3	356	359	356	295	117	180	33
4x3	432	435	432	295	117	180	38
4	432	435	432	310	141	300	53
6x4	559	562	559	310	141	300	79
6	559	562	559	340	193	300	111
8x6	660	664	660	340	193	300	124.5
8	660	664	660	405	217	300	182
10x8	787	791	787	405	217	300	235
10	787	791	787	465	270	300	369
12x10	838	841	838	465	270	300	352.5
12	838	841	838	607	323	300	577.5
14x12	889	892	889	607	323	300	603
14	889	892	889	650	323	400	685.5
16x14	991	994	991	650	355	400	721.5
16	991	994	991	678	400	450	1084.5
18x16	1092	1095	1092	678	400	450	1147.5
18	1092	1095	1092	720	440	500	1318.5
20x18	1194	1200	1194	720	440	500	1470
20	1194	1200	1194	780	467	550	2310
24x20	1397	1406	1397	780	467	550	2715
24	1397	1406	1397	905	551	550	3981
30x24	1651	1664	1651	905	551	550	4356
26	1448	1460	1448	972	624	812	4680
28	1549	1562	1549	985	632	812	4815
30	1651	1664	1651	1042	715	812	5250
36x30	2083	2098	2083	1042	715	812	5828
32	1778	1794	1778	1120	985	812	7088
36	2083	2098	2083	1217	836	914	10856
40	2337	2337	2337	1345	900	914	14021
42	2437	2437	2437	1534	935	914	15533
48	2540	2540	2540	1586	1050	914	24315

Class 300LB
Size(in)	L			H	H1	M	W(kg)
Size(in)	RF	RTJ	BW	H	H1	M	W(kg)
2	292	295	292	208	95	180	23
3x2	356	359	356	208	95	180	30
3	356	359	356	275	122	300	45
4x3	432	435	432	275	122	300	66
4	432	435	432	285	148	300	83
6x4	559	562	559	285	148	300	98
6	559	562	559	335	201	300	135
8x6	660	664	660	335	201	300	160.5
8	660	664	660	412	232	300	301.5
10x8	787	791	787	412	232	300	333
10	787	791	787	400	263	400	525
12x10	838	841	838	460	283	400	571.5
12	838	841	838	505	335	400	765
14x12	889	892	889	505	335	400	820.5
14	889	892	889	537	360	450	1080
16x14	991	994	991	537	360	450	1140
16	991	994	991	608	538	500	1750.5
18x16	1092	1095	1092	608	538	500	1885.5
18	1092	1095	1092	695	437	500	2289
20x18	1194	1200	1194	695	437	500	2484
20	1194	1200	1194	782	477	500	2808
24x20	1397	1406	1397	782	477	500	3378
24	1397	1406	1397	896	585	550	4512
30x24	1651	1664	1651	896	585	550	5637
26	1448	1460	1448	932	630	550	5124
28	1549	1562	1549	963	683	550	5802
30	1651	1664	1651	1068	715	762	7461
36x30	2083	2098	2083	1068	773	762	8973
32	1778	1794	1778	1108	773	812	8511
36	2083	2098	2083	1200	875	914	11349
40	2337	2337	2337	1355	923	914	14452.5
42	2437	2437	2437	1355	958	914	16321.5
48	2540	2540	2540	1600	1108	914	23085

Class 600LB
Size(in)	L			H	H1	M	W(kg)
Size(in)	RF	RTJ	BW	H	H1	M	W(kg)
2	292	295	292	195	102	300	50
3x2	356	359	356	195	102	300	56
3	356	359	356	220	129	300	102
4x3	432	435	432	220	129	300	114
4	432	435	432	295	158	300	146
6x4	559	562	559	295	158	300	153
6	559	562	559	335	200	300	283
8x6	660	664	660	335	200	300	307
8	660	664	660	408	255	400	508.5
10x8	787	791	787	408	255	400	643
10	787	791	787	508	302	450	777.5
12x10	838	841	838	508	302	450	817.5
12	838	841	838	594	346	500	1440
14x12	889	892	889	594	346	500	1488
14	889	892	889	648	385	500	1875
16x14	991	994	991	648	385	500	1992
16	991	994	991	685	418	500	2958
18x16	1092	1095	1092	685	418	500	3183
18	1092	1095	1092	775	460	500	26115
20x18	1194	1200	1194	775	460	500	2764.5
20	1194	1200	1194	883	525	550	3315
24x20	1397	1406	1397	883	525	812	4621.5
24	1397	1406	1397	942	615	812	5235
30x24	1651	1664	1651	942	615	812	6744
26	1448	1460	1448	984	635	812	6787.5
28	1549	1562	1549	1016	700	812	7722
30	1651	1664	1651	1100	730	914	8652
36x30	2083	2098	2083	1100	730	914	10593
32	1778	1794	1778	1288	796	914	10362
36	2083	2098	2083	1360	890	914	13117.5
40	2337	2337	2337	1408	950	914	17977.5
42	2437	2437	2437	1535	989	1016	21150
48	2540	2540	2540	1775	1120	1016	32427

Class 900LB
Size(in)	L			H	H1	M	W(kg)
Size(in)	RF	RTJ	BW	H	H1	M	W(kg)
2	292	295	292	195	102	300	50
3x2	356	359	356	195	102	300	56
3	356	359	356	220	129	300	102
4x3	432	435	432	220	129	300	114
4	432	435	432	295	158	300	146
6x4	559	562	559	295	158	300	153
6	559	562	559	335	200	300	283
8x6	660	664	660	335	200	300	307
8	660	664	660	408	255	400	508.5
10x8	787	791	787	408	255	400	643
10	787	791	787	508	302	450	777.5
12x10	838	841	838	508	302	450	817.5
12	838	841	838	594	346	500	1440
14x12	889	892	889	594	346	500	1488
14	889	892	889	648	385	500	1875
16x14	991	994	991	648	385	500	1992
16	991	994	991	685	418	500	2958
18x16	1092	1095	1092	685	418	500	3183
18	1092	1095	1092	775	460	500	26115
20x18	1194	1200	1194	775	460	500	2764.5
20	1194	1200	1194	883	525	550	3315
24x20	1397	1406	1397	883	525	812	4621.5
24	1397	1406	1397	942	615	812	5235
30x24	1651	1664	1651	942	615	812	6744
26	1448	1460	1448	984	635	812	6787.5
28	1549	1562	1549	1016	700	812	7722
30	1651	1664	1651	1100	730	914	8652
36x30	2083	2098	2083	1100	730	914	10593
32	1778	1794	1778	1288	796	914	10362
36	2083	2098	2083	1360	890	914	13117.5
40	2337	2337	2337	1408	950	914	17977.5
42	2437	2437	2437	1535	989	1016	21150
48	2540	2540	2540	1775	1120	1016	32427

Class 1500LB
Size(in)	L			H	H1	M	W(kg)
Size(in)	RF	RTJ	BW	H	H1	M	W(kg)
2	368	371	368	287	122	300	60
3x2	470	473	470	287	122	300	75
3	470	473	470	319	163	300	143
4x3	546	549	546	319	163	300	162
4	546	549	546	347	173	300	270
6x4	705	711	705	347	173	300	338
6	705	711	705	415	211	400	570
8x6	832	841	832	415	211	400	727.5
8	832	841	832	545	274	450	1125
10x8	991	1000	991	545	274	450	1434
10	991	1000	991	648	310	500	1747.5
12x10	1130	1146	1130	648	310	500	1900.5
12	1130	1146	1130	766	485	500	2437.5
14x12	1257	1276	1257	766	485	500	2737.5
14	1257	1276	1257	831	510	550	2970
16x14	1384	1407	1384	831	510	550	3420
16	1384	1407	1384	872	500	550	5310
18x16	1537	1559	1537	872	500	550	6744
18	1537	1559	1537	903	585	812	7236
20x18	1664	1686	1664	903	585	812	9132
20	1664	1686	1664	1020	635	914	10875
24x20	2043	2071	2043	1020	635	914	12481.5
24	2043	2071	2043	1107	720	914	16267.5
