Product Description

For the full bore valve, the bore diameter i.e hole in the ball has the same internal diameter as the pipe, whereas a reduced bore valve has a smaller bore diameter than the internal diameter of the pipework it is on.

Full-port ball valves are used where their low flow resistance is of value such as on pump suction pipes, where a pressure drop can affect pump performance. They are also used in flows containing mixed liquids and solids where flow restrictions can cause separations in the materials causing buildups and thus reducing the flow in the pipes.

Specifications.

Design and manufacture conform to ASME B16.34,BS5351.
Face to face length confirm to ASME B16.10,BS2080.
Flange connections confirm to ASME B16.5,BS1560.
Inspection and test confirm to API 598,API 6D,BS 5146.

Pressure Test		Shell Test		Seal Test		Top Seal Test		Gas Test
Medium		Water						Gas
Unit		Mpa	Lbf/in²	Mpa	Lbf/in²	Mpa	Lbf/in²	Mpa	Lbf/in²
Pressure Rating	150lb	3.1	450	2.2	315	2.2	315	0.5~0.7	60~100
	300lb	7.8	1125	5.6	815	5.6	815
	400lb	10.3	1500	7.6	1100	7.6	1100
	600lb	15.3	2225	11.2	1630	11.2	1630
	900lb	23.1	3350	16.8	2440	16.8	2440

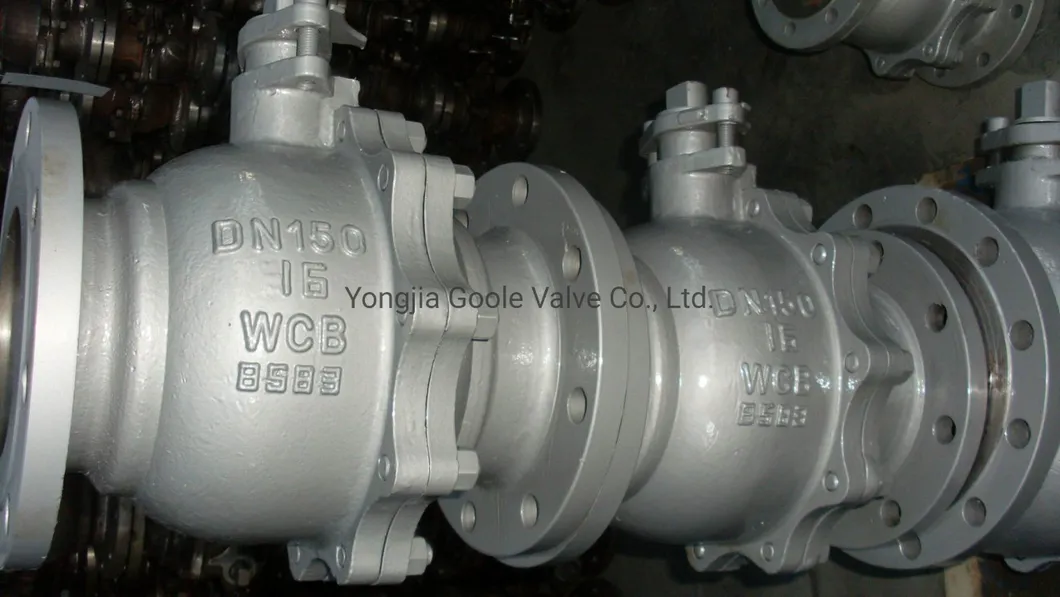

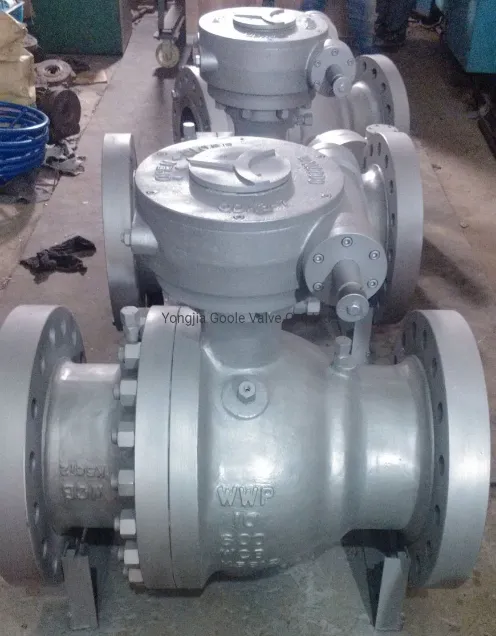

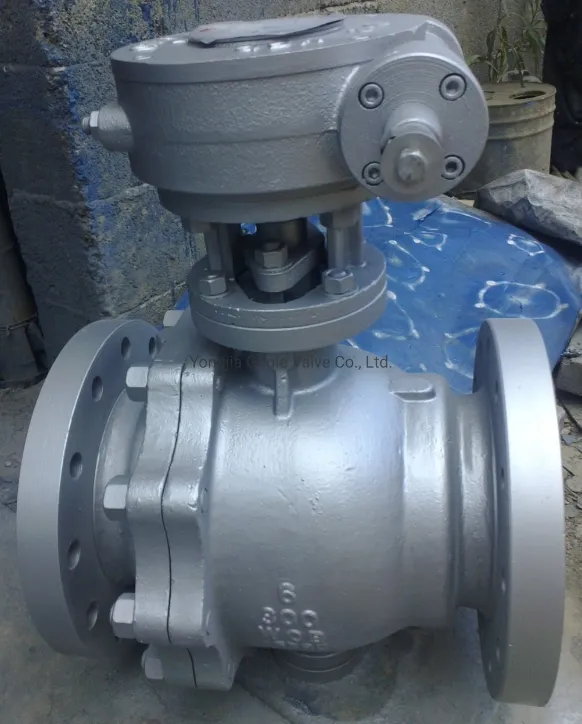

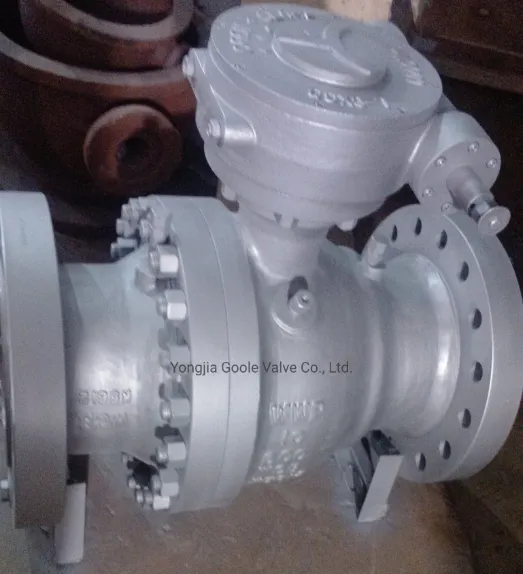

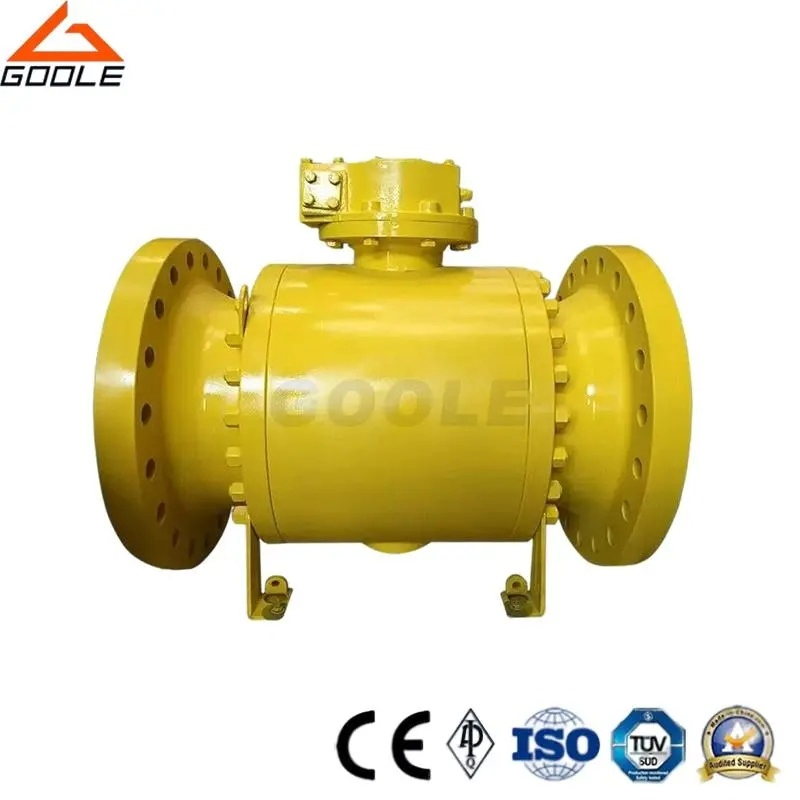

3 PCS 600lb Forged Steel Ball Valve-Q47f

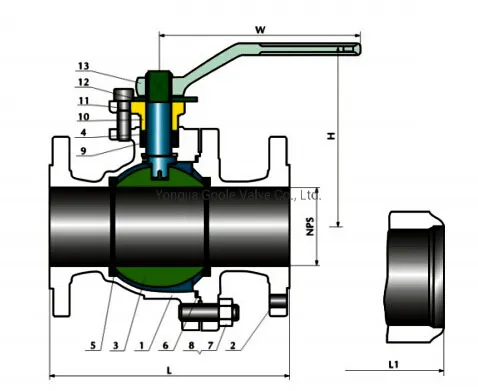

Materials of parts.

NO	Part name	ASTM Material
NO	Part name	Carbon steel	18Cr-9Ni-2Mo	Carbon steel
1	Body	A216-WCB	A351-CF8M	A352-LCB
2	Bonnet	A216-WCB	A351-CF8M	A352-LCB
3	Ball	A182-F304	A182-F316	A182-F304
4	Stem	A276-304	A276-316	A276-304
5	Seat ring	R.PTFE
6	Bonnet gasket	Graphite+304	PTFE	Graphite+304
7	Bonnet stud	A193-B7	A193-B8	A193-L7
8	Bonnet stud nut	A194-2H	A194-8	A194-4
9	Packing	PTFE
10	Gland flange	A216-WCB	A351-CF8M	A352-LCB
11	Gland bolt	A193-B7	A193-B8	A193-B7
12	Stop plate	Carbon steel	Carbon steel+Zn	Carbon steel
13	Handle	Carbon steel

Note:1)A105+ENP optional;2)Spiral wound construction

Dimensions & weight.

Size	in	1/2"	3/4"	1"	1 1/2"	2"	2 1/2"	3"	4"	6"	8"	10"
Size	mm	15	20	25	40	50	65	80	100	150	200	250
L(RF)	in	4.25	4.62	5.00	6.50	7.00	7.50	8.00	9.00	15.50	18.00	21.00
L(RF)	mm	108	117	127	165	178	190	203	229	394	457	533
L1(BW)	in	5.50	6.00	6.50	7.50	8.50	9.50	11.12	12.00	18.00	20.50	22.00
L1(BW)	mm	140	152	165	190	216	241	283	305	457	521	559
H	in	2.12	2.12	2.75	3.50	4.12	6.12	7.25	8.00	10.00	11.00	13.50
H	mm	55	55	70	90	105	155	185	205	255	280	345
W	in	5	5	6	8	14	16	20	20	24	32	32
W	mm	130	130	160	200	350	400	500	500	600	800	800
WT(Kg)	RF	2.3	3	4.5	7	9.5	15	19	33	93	160	200
WT(Kg)	BW	1.8	2.8	3.7	6.2	8.5	14	21	35	98	170	225
