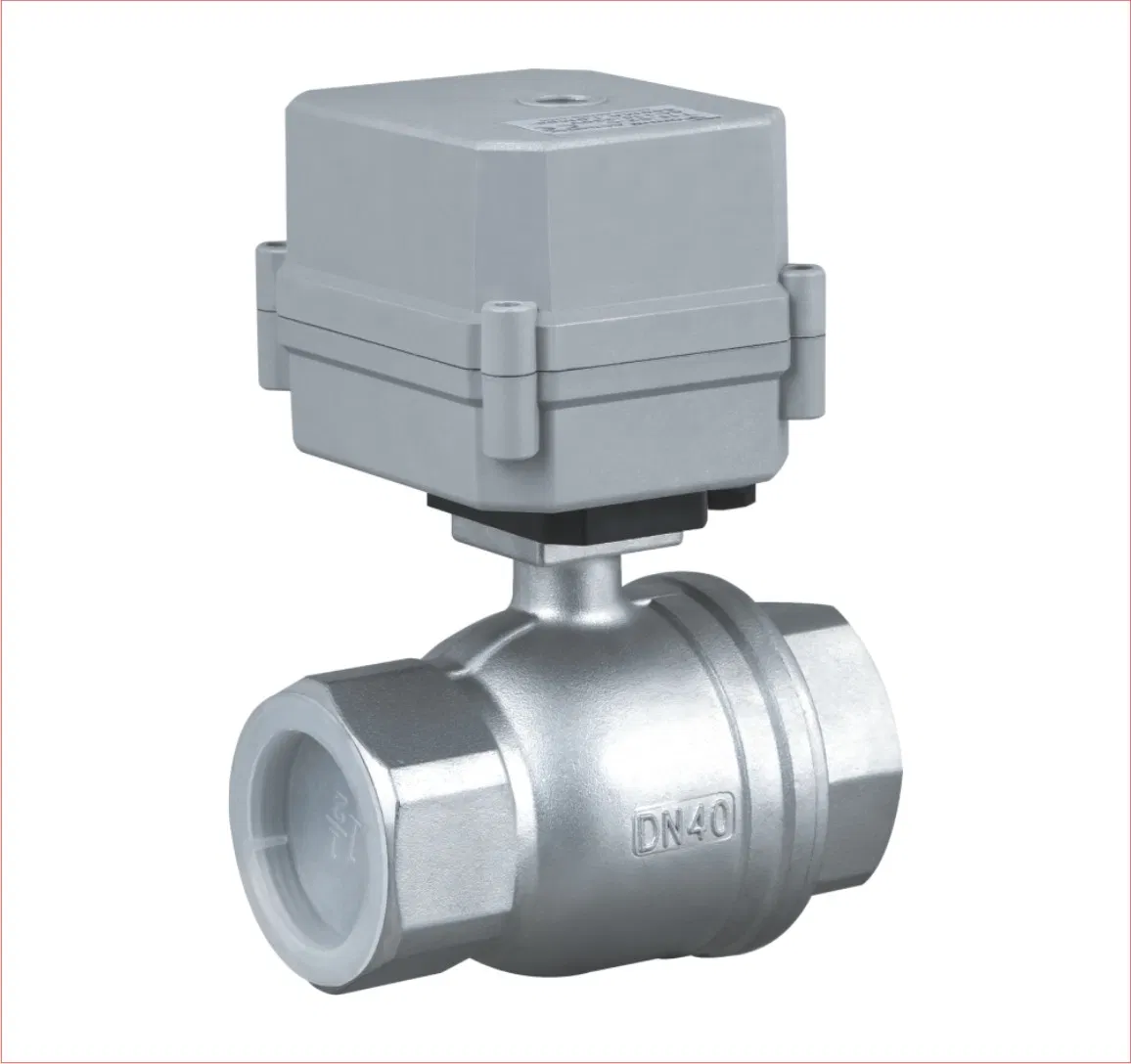

2 Way Electric Actuator Valve Motorized Stainless Steel Water Ball Valve (A100- T40 -S2-C)

Product Description

2 Way 1-1/2'' Inches Motorized Electric Actuator Ball Valve(T40-S2-C)

Product Characteristics:
1.Mini size and perform reliably for small equipment
2.Easy to install
3.All metel gear
4.Long life time —70000-100000 circles
5.Floating seal structure, good sealing,protection class IP67
6.Low working current, suitable for battery supply set
7.Manual override is safe and convenient
8.Passed CE certification and NSF61-G certification

Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.

SPECIFICATION:

Product size	1-1/2" (NPT/BSP 2" 1-1/4" ) Optional
Maximum working pressure	1.5MPa
Circulation medium	Fluid, air
Rated voltage	DC5V DC12V DC24 DC7-35V AC/DC9-35V AC/DC110-230V Optional
Wiring control methods	CR2-01 CR2-02 CR3-03 CR4-01 CR5-01 CR5-02 Optional
Working current	≤1000MA
Open/close time	≤15S
Life time	70000 times
Valve Body material	304 Stainless steel
Actuator material	Engineering Plastics
Sealing material	EPDM & PTFE
Actuator rotation	90 degree
Cable length	0.5M, 1.5M
Max. torque force	10 Nm
Environment temperature	-15centigrade - 50 centigrade
Liquid temperature	2centigrade - 90centigrade
Manual override	No
Indicator	Yes
