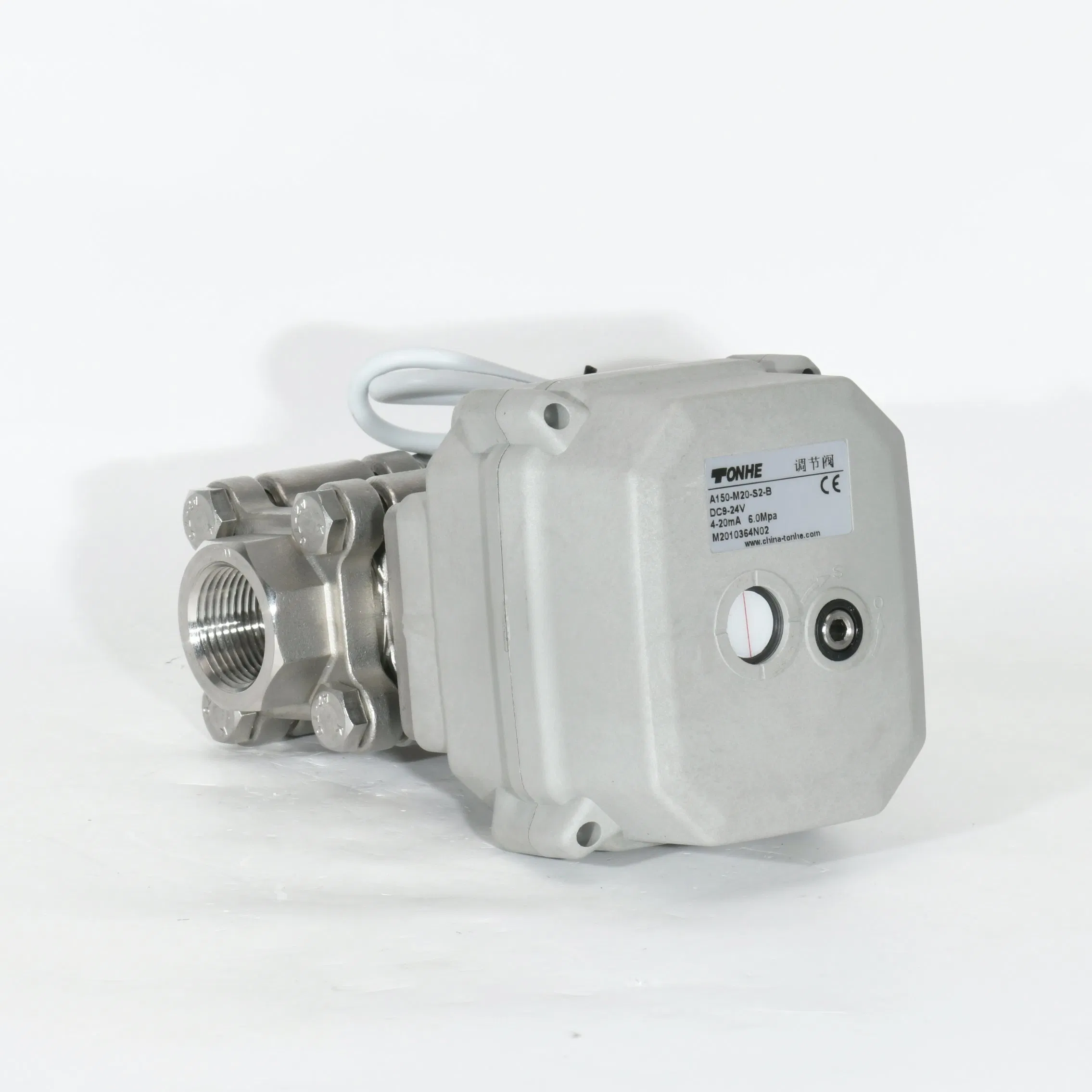

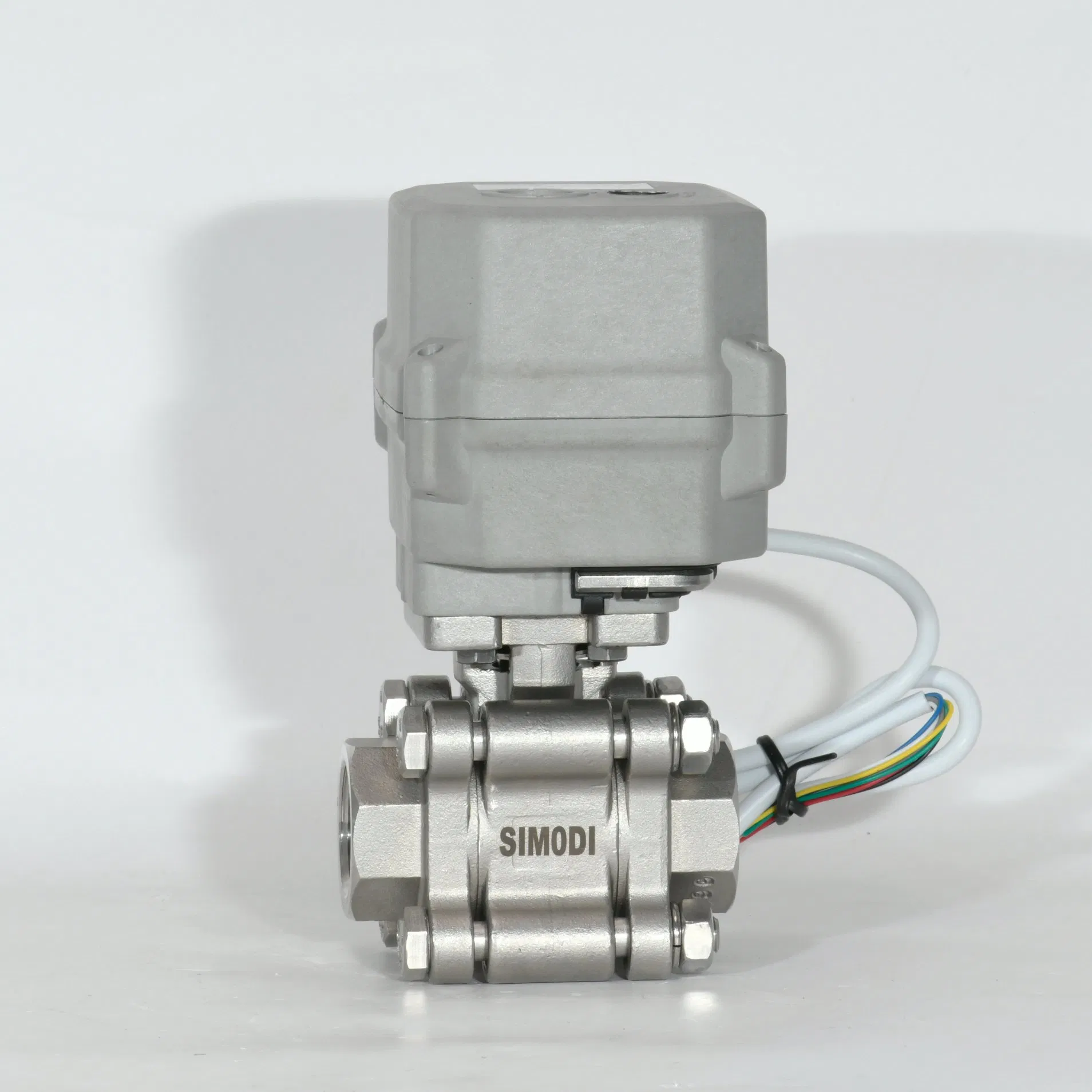

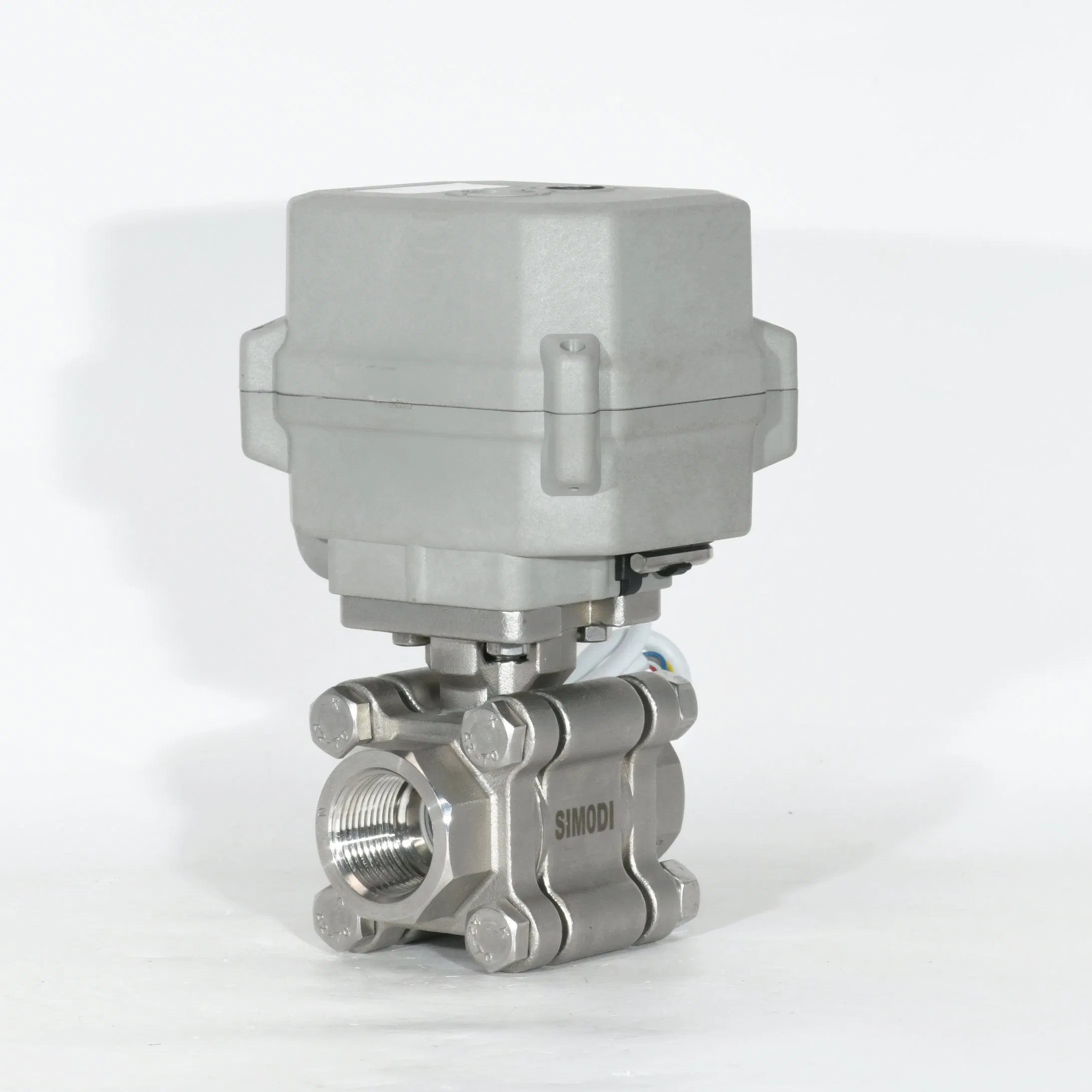

2 Way 3 Pieces 1 Inch 4-20mA Stainless Steel 304 Modulating Control Electric Ball Valve
2 way Modulating electric control water ball valve, 4-20mA /0-10V control signal, DC9-24V/AC, IP67, 1.5 Mpa ,CE , NSF61.Design feature:1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.2 Small size, compact structure.3 A variety of control methods, ei......
Send Inquiry
Product Description
Design feature:
1 All-copper gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback Signal in place for computer intelligence unit testing.
4 Good sealing performance
Technical Parameters:
| Product size | NPT/BSP 1-1/4" 1-1/2" 2" (Optional ) |
| Maximum working pressure | 1.0MPa |
| Circulation medium | Fluid, air |
| Rated voltage | DC12-24V |
| control signal | 4-20mA ,0-5V,0-10V |

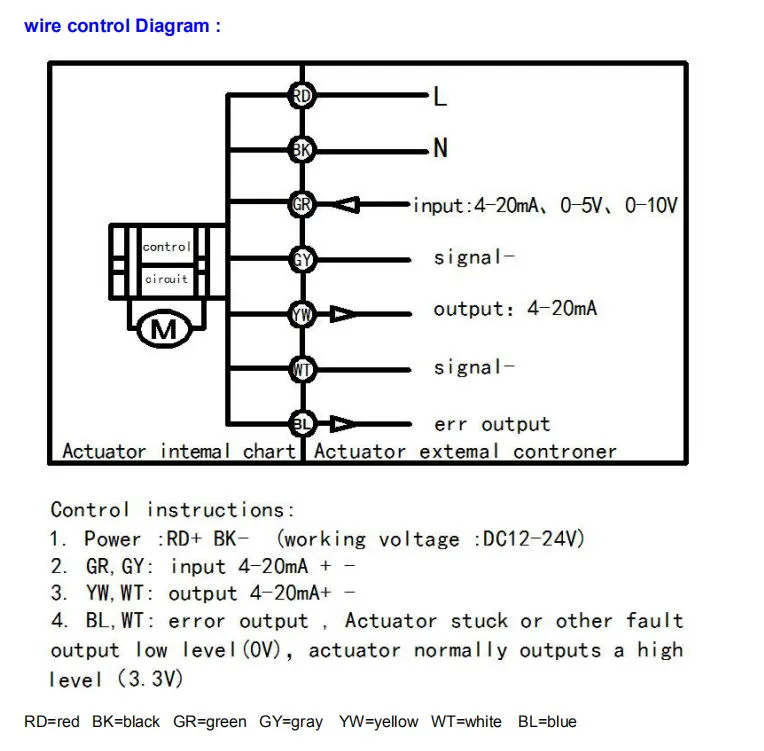

| Wiring control methods | 5 wire control with feedback signal |
| Position | Any position ( 0~100% is ok) Make as your requirement, for example, 4 position, 5 position,etc. |
| Open/close time | ≤5S |
| Life time | 100000 times |
| Valve Body material | UPVC , SS304 (Optional) |
| Actuator material | Engineering Plastics |
| Sealing material | FKM & PTFE |
| Actuator rotation | 90° |
| Max. torque force | 15 N.M |
| Cable Length | 0.5m 1.5m |
| Environment temperature | -15ºC~60ºC |
| Liquid temperature | 2ºC~90ºC |
| Manual override | YES |
| Indicator | Yes |
| Protection class | IP67 |
| Certificate | LVD, EMC,ROHS and SS304 valve passed NSF61-G |
| Company passed | Iso9001:2008 |
| Product Insurance | PICC |
| Locked-rotor Current | 500mA |
| Locked-rotor Delay Time | 2-4sV |
| Protection class | IP67 |

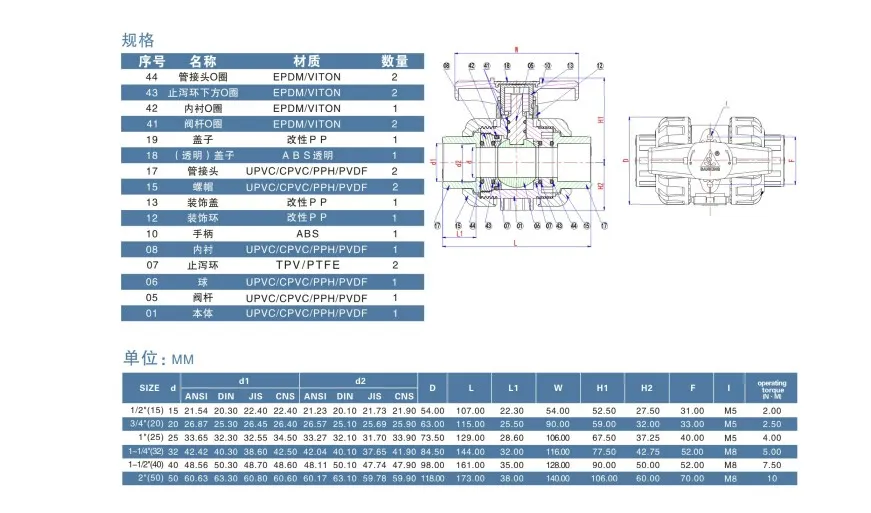

Electric PVC true union valve No thread, have below connection standard.
1)ANSI 2)JIS 3)DIN 4)CNS

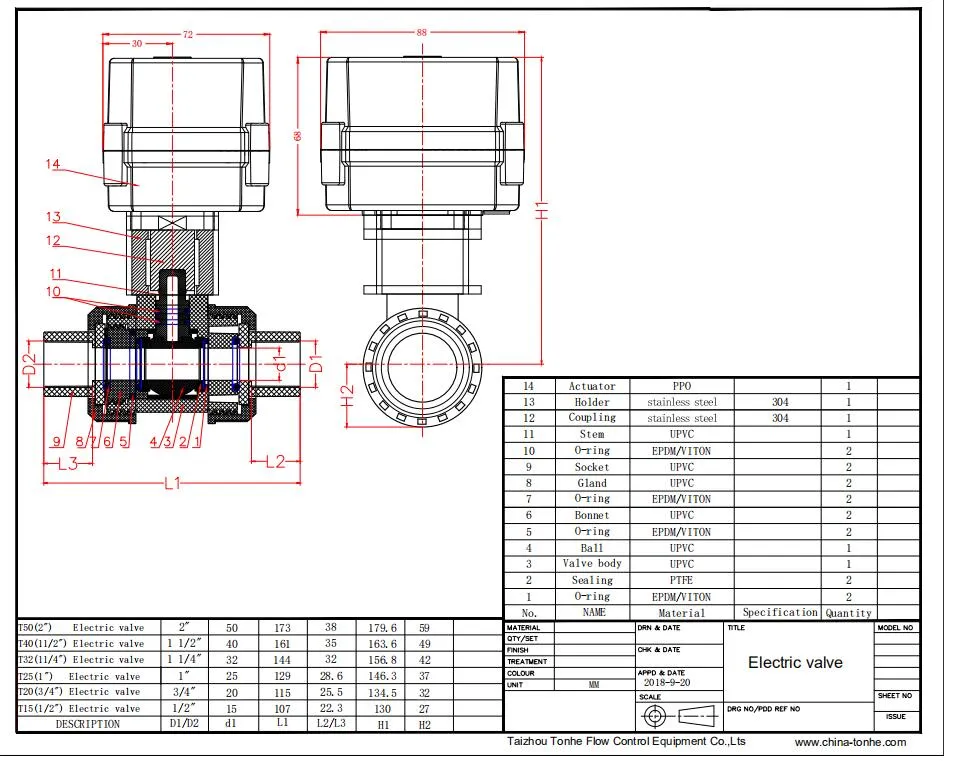

2 way plastic electric actuator ball valve assemble drawing :

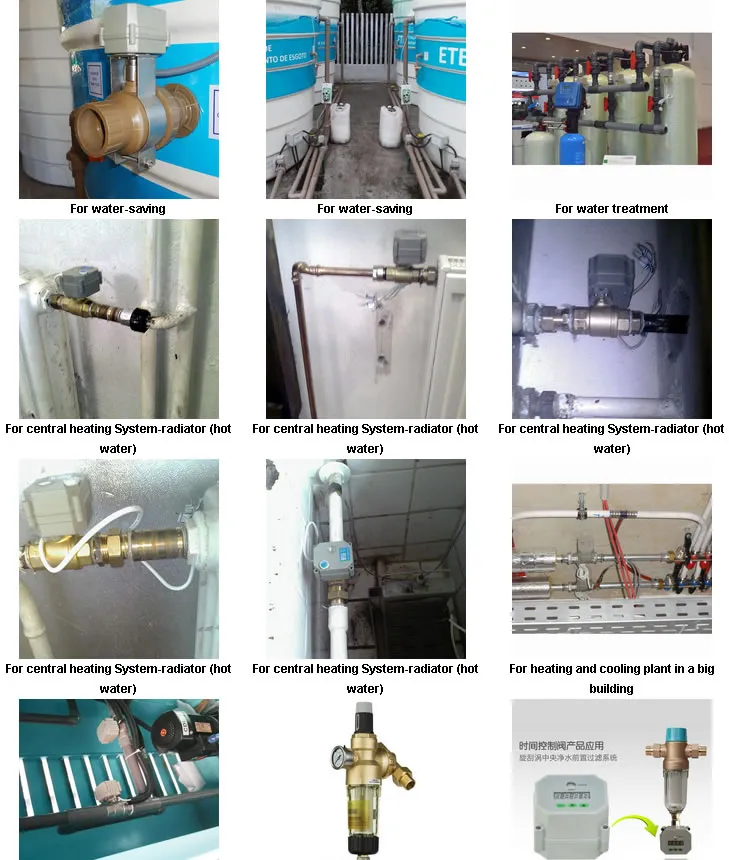

Application
Water meter , water leak detection system and water treatment etc equipment
HAV and fire works. Automatic drain system
Irrigation ect small control equipment

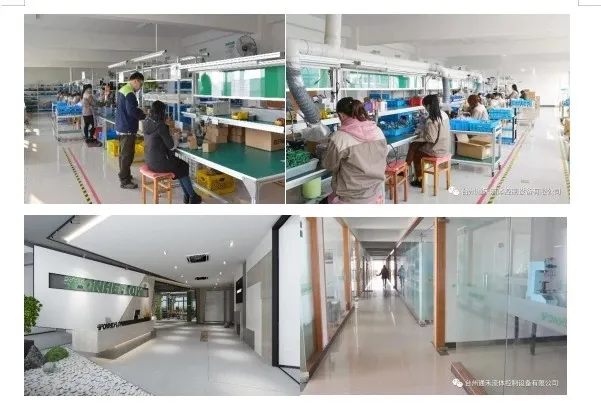

Workshop:
Pls confirm the above different versions of actuators
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
4, valve manual override & indicator ( yes or no)
5, actuator cable length
OUR SERVIC
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
FAQ
Q. what is your payment term?
A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: How about your products and company approved?
A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems, we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Electronic power controll water ball valve , motorized power actuator water ball valve , motor actuator control water valve
