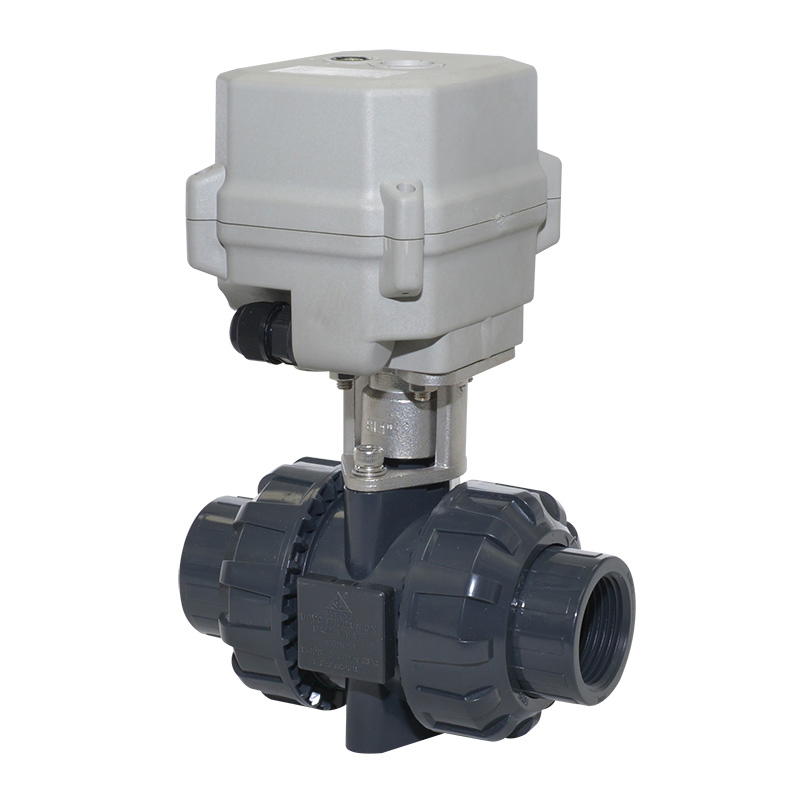

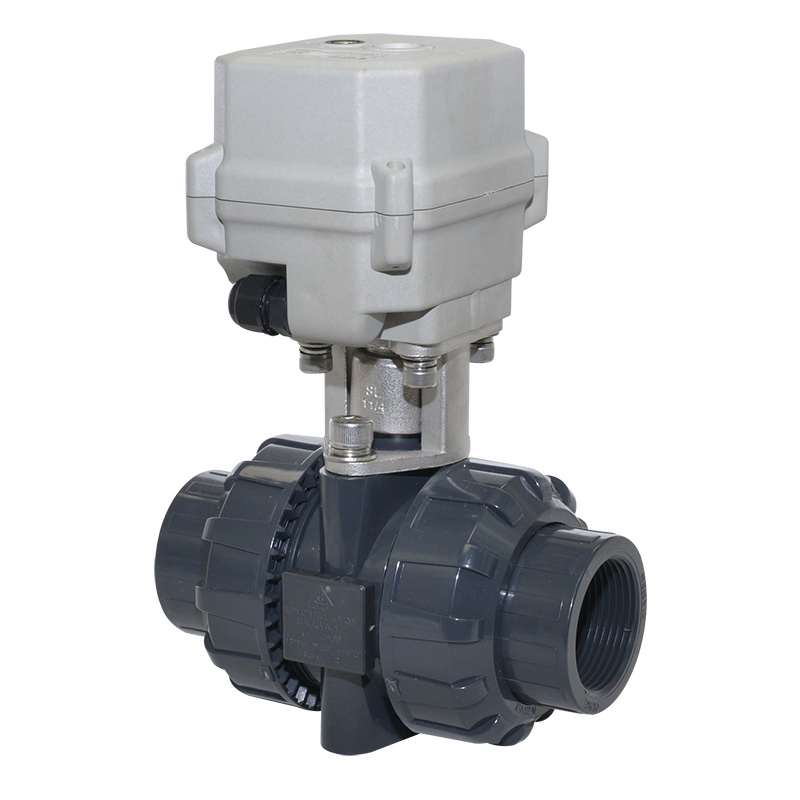

China 2-Way 1 1/2′′ Bsp/NPT CR301 Cr303 Motorized Ball Valve Factory

Product Description

Product Parameters

Item No.:	A150-T40-P2-B
Valve body material:	UPVC
Actuator material:	Engineering Plastic PPO
Product size:	NPT/BSP 2''
Max working pressure:	1.0MPa
Criculation medium:	Fluid,air
Working voltage:	DC12/24V
Wiring diagram:	CR301/ CR303
Working current:	≤1A
On/off time:	≤12s
Life time:	70000times (testing pressure is 0.4MPa,medium is water)
Sealing material:	EPDM&PTFE
Actuator rotation:	360°
Torque force:	15N.m
Cable length:	0.5m
Environment temperature:	-15ºC~50ºC
Manual override:	Yes
On/off indicator:	Yes
Protection class:	IP67

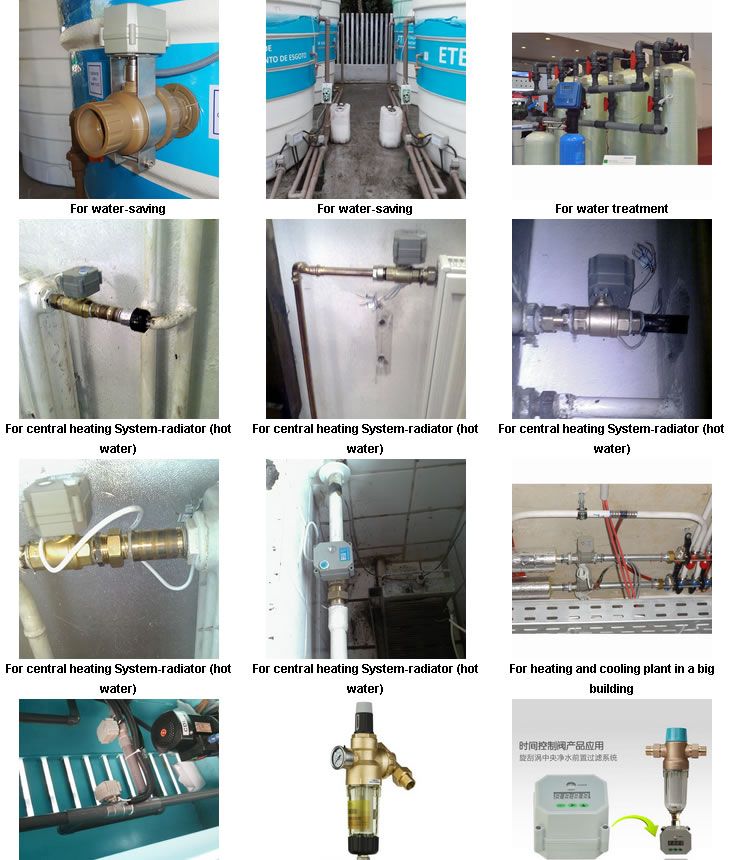

Application range
2-Way 1 1/2′′ Bsp/NPT CR301 Cr303 Motorized Ball Valve Factory

Company introduction

Taizhou Tonhe Flow Control Co., Ltd. is a professional manufacturer and exporter of electric control valves. We pay high attention to the quality control and new products R&D,specialized in motorized valves, electric fluid control valves, electric actuator, intelligent design, manufacture, sales and technical service.

Our main products are Tonhe series straight-through motorized valve,which has compact size with smart shape, perform reliably with long life time, intelligent control, high torque actuators, low noise, no leak, and many other features.
