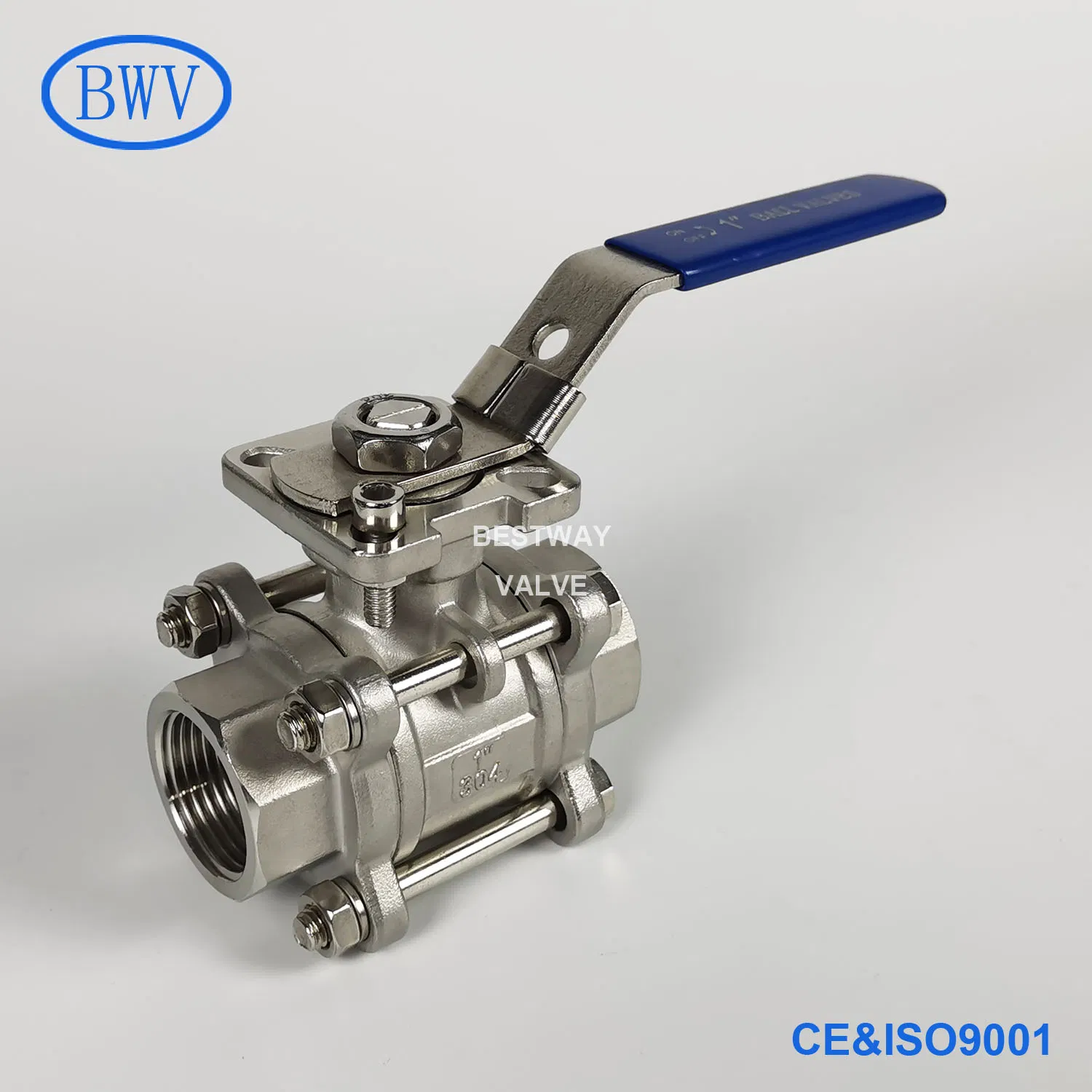

1000psi/1000wog 304 316 Fnpt Threaded/Screwed 3PC Stainless Steel Ball Valve

1000PSI/1000WOG 304 316 FNPT Threaded/Screwed 3PC Stainless Steel Ball Valve

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.Ball valves with mounting pad can also be operated by actuator and gear box.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gates and globe valves, but they lack their fine control in throttling applications.

Descriptions:

1) Design standard: ASME B16.34, API608
2) Ends: Threaded as per ANSI B1.20.1,BS 21/2779,DIN 259/2999,ISO 228
               Socket Welding as per ASME B16.11,
               Butt Wedling as per ASME B16.25,
3) Testing: API 598
4) Material:ASTM A351-CF8M,CF8,CF3M,SS316,SS304
                   ASTM A216-WCB
5) Size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2",2-1/2" ,3" ,4"
6) Working pressure: 1000PSI/PN63
7) Seat Material: PTFE,RPTFE,PPL
8) Working temperature: -20 to 180°C(PTFE)  ,-20 to 300°C(PPL)
9) Working medium: Water, Oil, Gas, Steam, Acid, etc

Features:

1) Blow-out proof stem
2) Investment Casting Body
3) Full Bore
4) Threaded ends: NPT,PT,BSP,BSPT,DIN;
     Socket Welding Ends,
     Butt Welding Ends are available.
5) Locking device is available
