3/4' NPT Thermodynamic Steam Trap
Techincal data:SizeDN15 ~-DN25 (1/2" ~-1")ConnectionBSP or NPT threadedBody MaterialASTM CA40ApplicationSteam pipelines, iron machinery, drying units, pressing units.Fluid Pressure0.15~4.2MPa (2.2-609Psi)Fluid Temperature Max. 400Main DimensionSizeThreadDimension(mm)Weight(kg)LHH1H2AADN151......
Send Inquiry
Product Description
Techincal data:
| Size | DN15 ~-DN25 (1/2" ~-1") |
| Connection | BSP or NPT threaded |
| Body Material | ASTM CA40 |

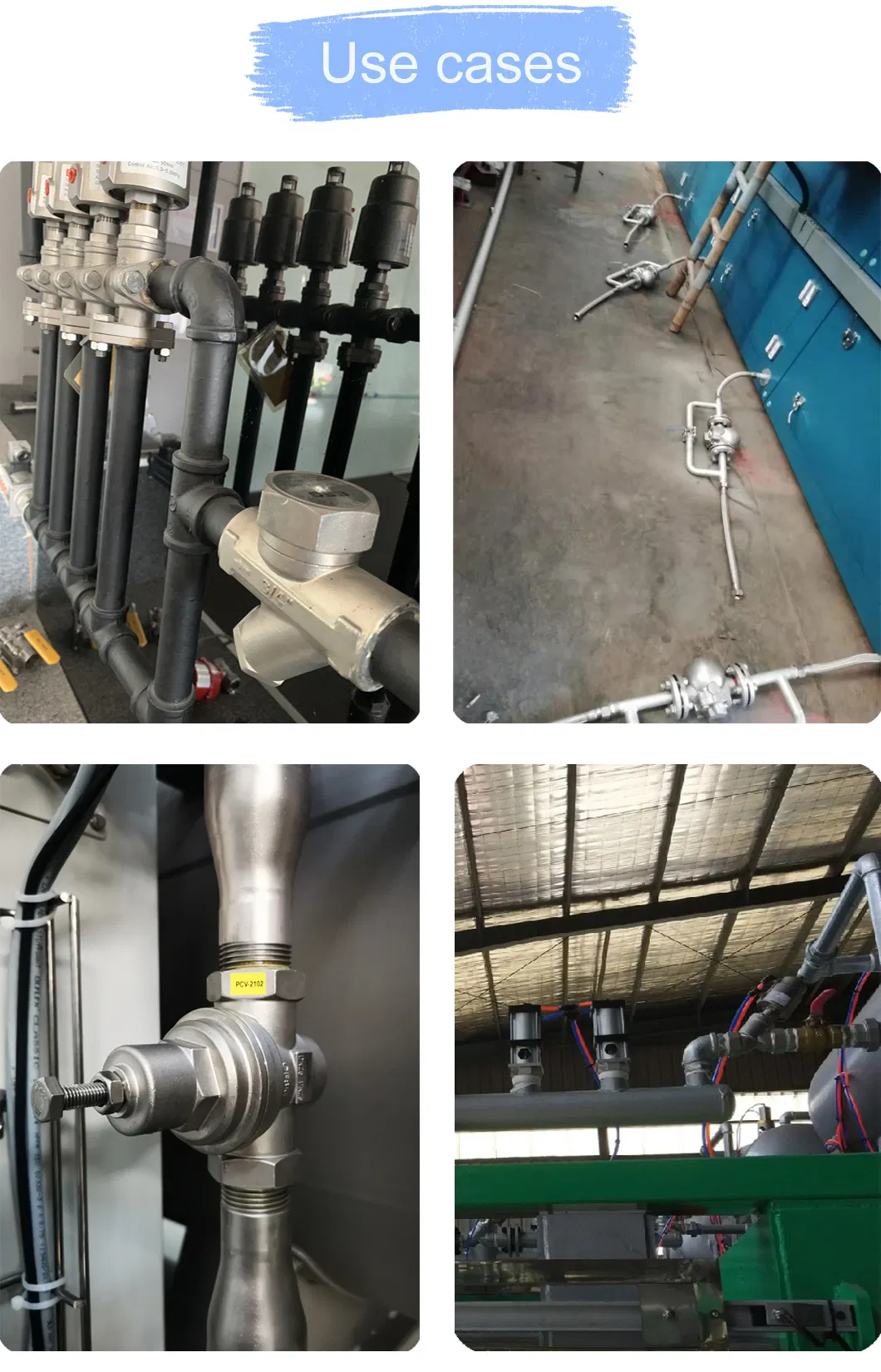

| Application | Steam pipelines, iron machinery, drying units, pressing units. |
| Fluid Pressure | 0.15~4.2MPa (2.2-609Psi) |
| Fluid Temperature | Max. 400 |

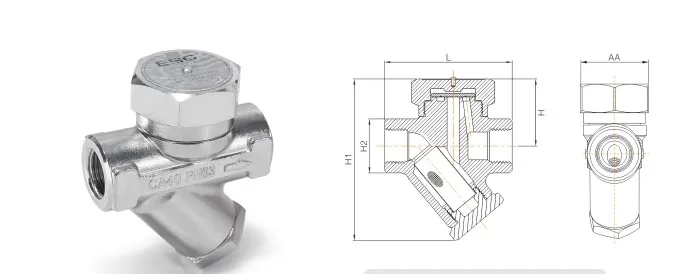

| Size | Thread | Dimension(mm) | Weight(kg) | ||||
| L | H | H1 | H2 | AA | |||
| DN15 | 1/2" | 78 | 40 | 99.6 | 33 | 44 | 0.9 |
| DN20 | 3/4" | 90 | 49.2 | 109.2 | 39 | 48 | 1.2 |
| DN25 | 1" | 95 | 57.5 | 121.6 | 45 | 56 | 1.7 |

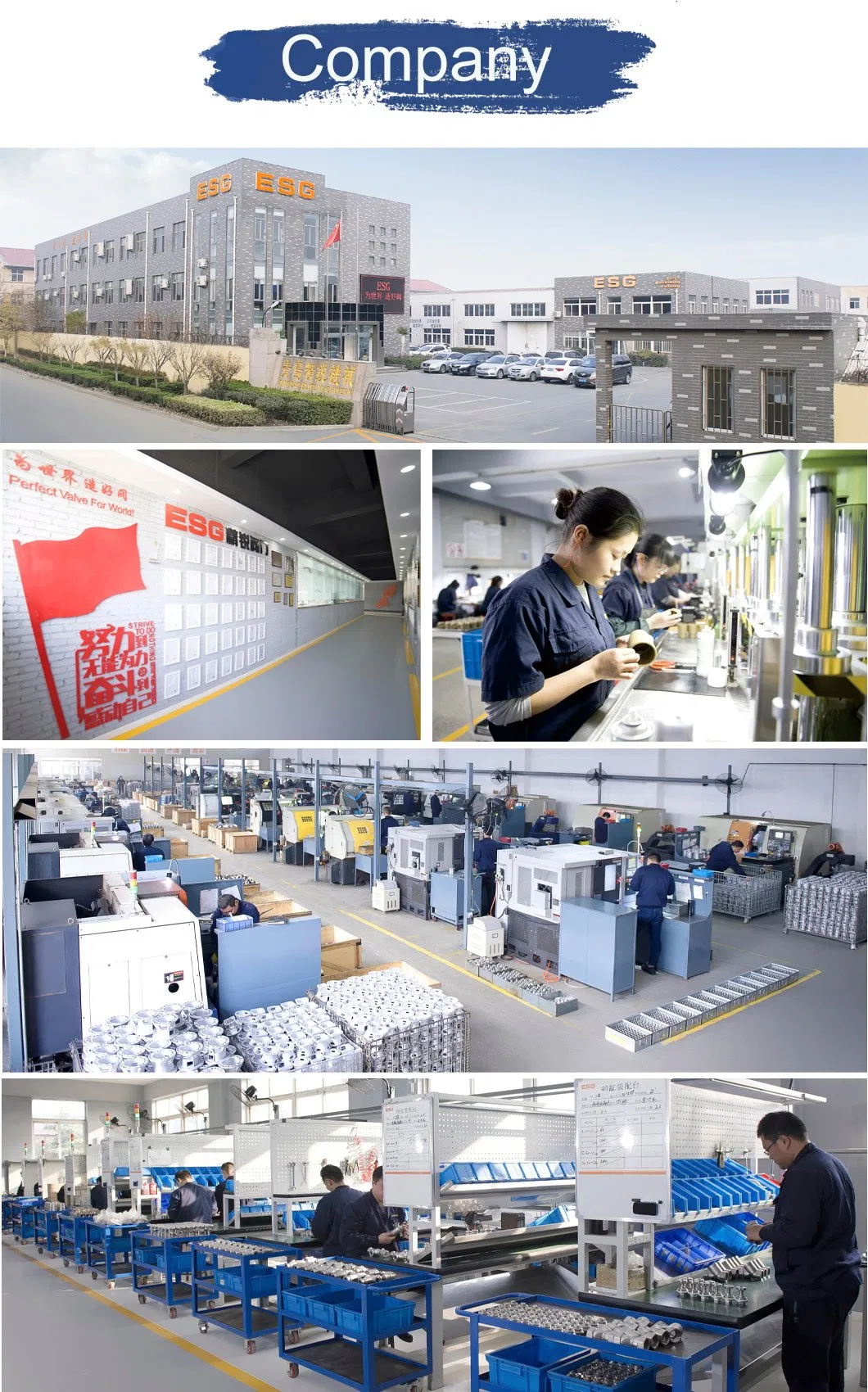

OUR COMPANY
Founded in 2001, we are specialized in design & manufacture stainless steel valve for industrial fluid control system. Our products include pneumatic angle seat valve, shuttle valve, ball valve, butterfly valve, pressure reducing valve, steam trap, check valve and strainer, which are widely exported to USA, Europe, Asia, Africa, in total 62 countries.
FAQ
Q. what is your payment term?
A: T/T PREPAID OR L/C at sight.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: How about your products and company approved?
A: All of our products are made under ISO9001, and we have got CE,CU-TR ctrtificates.
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q:Do you have a warehouse overseas?
A: Yes, we have warehouse in US, Europe.
