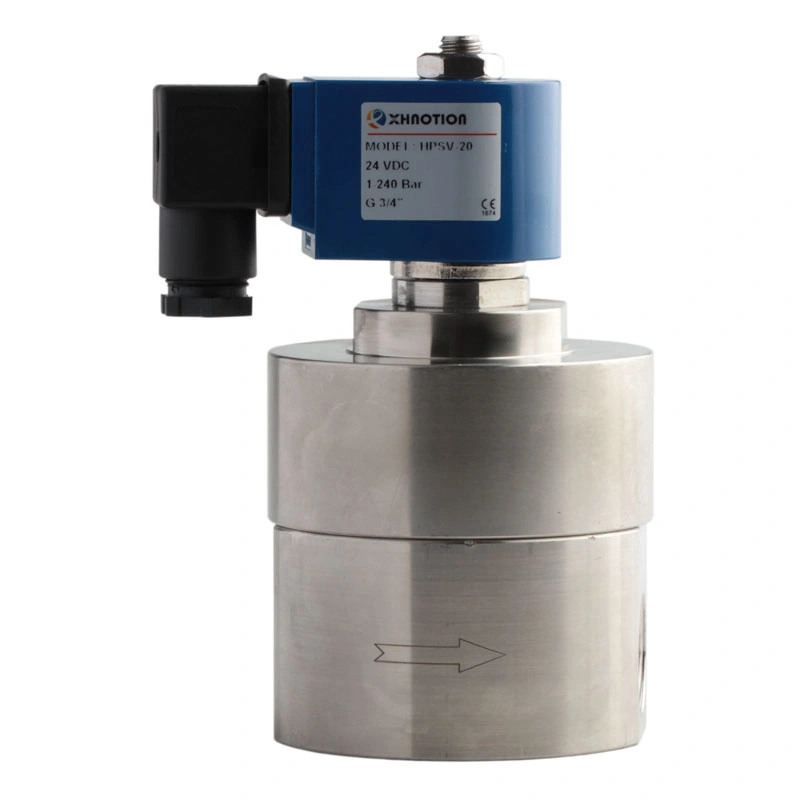

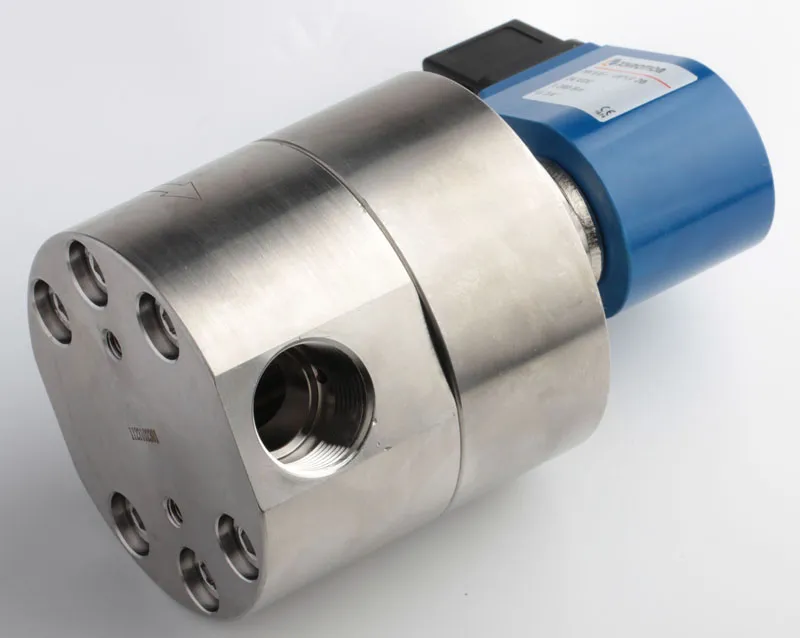

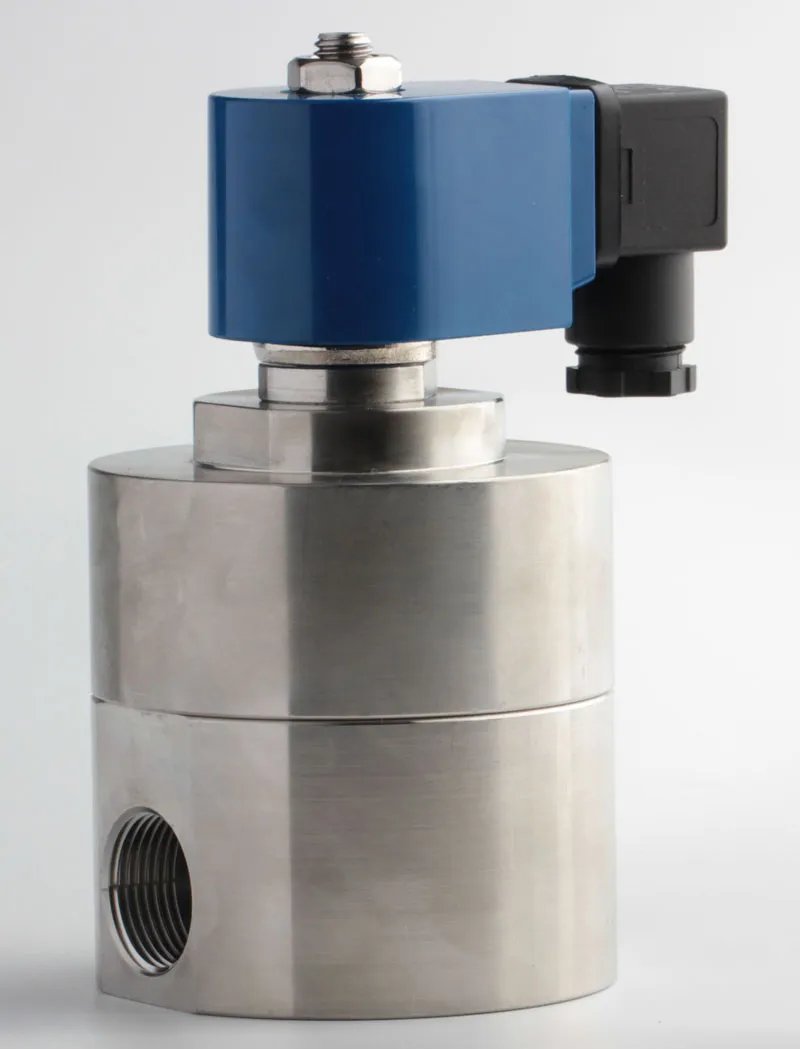

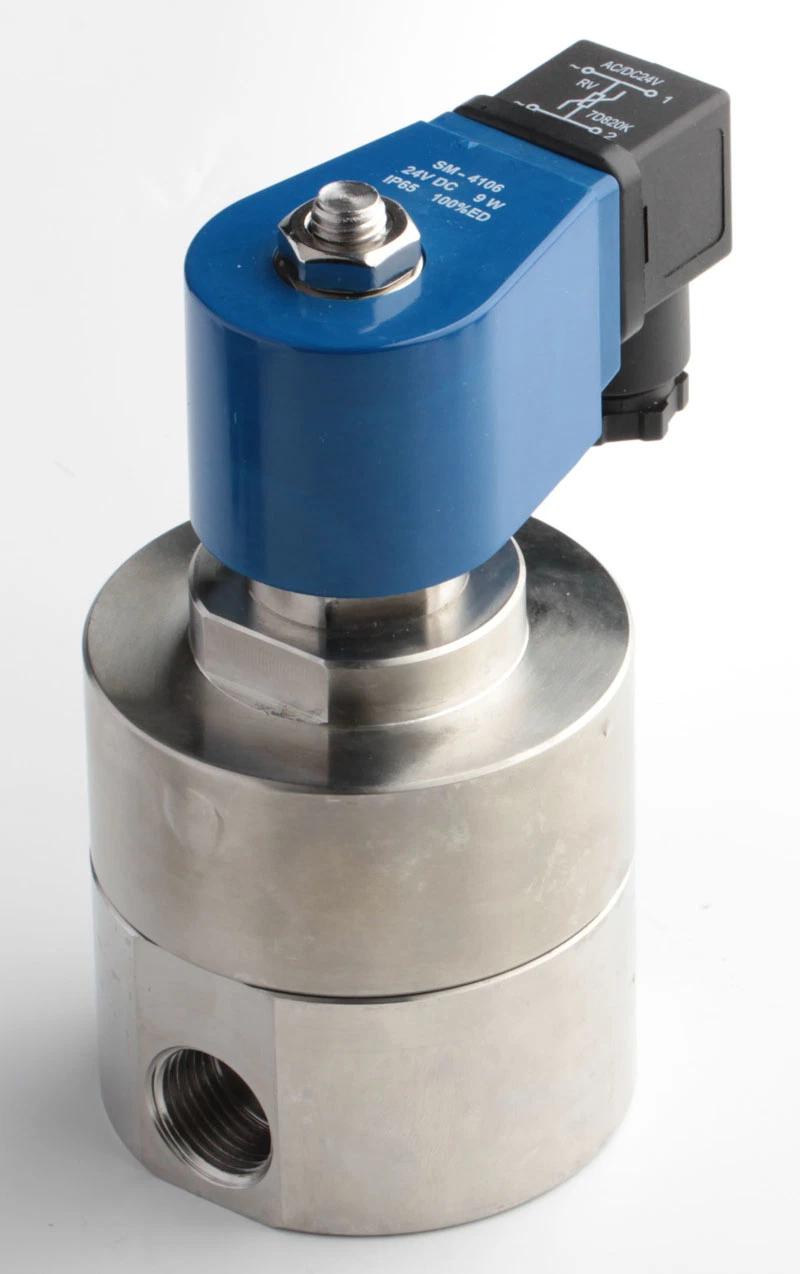

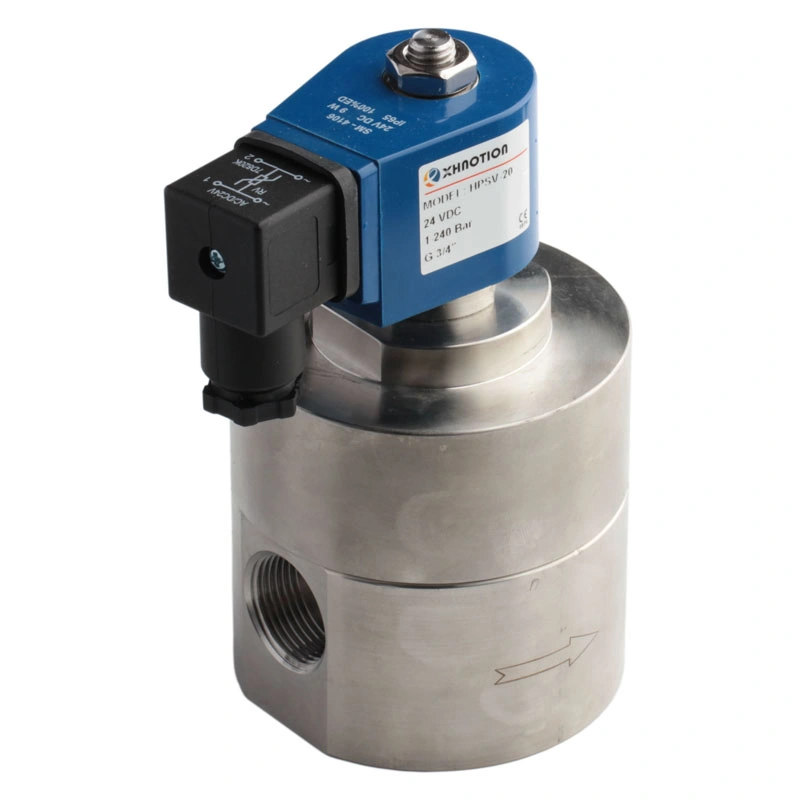

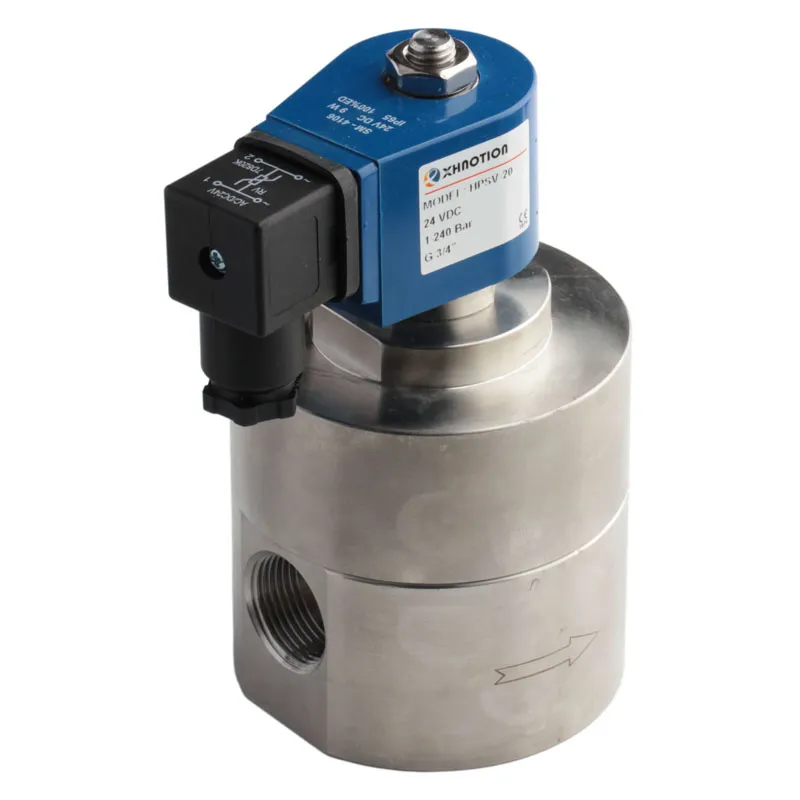

Xhnotion Pneumatic Spv Series 300 Bar Super High Pressure Stainless Steel Material G3 /4' Thread Normally Closed Solenoid Valve
Xhnotion Pneumatic spv Series 300 bar Super High Pressure Stainless Steel Material G3/4'' Thread Normally Closed Solenoid ValveFEATURES1. Compact volume, large flow, widely use 2. Pilot operated structure 3. Lower power consumption, bigger working pressure 4. Body material: brass, stainless ......
Send Inquiry
Product Description
Xhnotion Pneumatic spv Series 300 bar Super High Pressure Stainless Steel Material G3/4'' Thread Normally Closed Solenoid Valve
FEATURES
1. Compact volume, large flow, widely use
2. Pilot operated structure
3. Lower power consumption, bigger working pressure
4. Body material: brass, stainless steel
5. NBR, VITON, EPDM, SILICONE seals are available
6. Normally closed and normally open.
SPECIFICATIONS
| Model | Pipe connection | Orifice(mm) | CV Factor | Operating pressure differential (kgf/cm2) | Max. fuilds temp. | Weight(kg) | |||||
| Min | Air gas | water, hot water liquids | Light oil | ||||||||
| AC | DC | AC | DC | AC | |||||||
| SPV010-06B | 1/8'' | 1 | 0.04 | 0 | 360 | 260 | 360 | 260 | 360 | 110 | 0.8 |
| SPV012-06B | 1.2 | 0.05 | 0 | 300 | 240 | 300 | 240 | 300 | 110 | ||
| SPV015-06B | 1.5 | 0.08 | 0 | 250 | 190 | 250 | 190 | 250 | 110 | ||
| SPV010-08B | 1/4'' | 1 | 0.04 | 0 | 360 | 260 | 360 | 260 | 360 | 110 | 0.8 |
| SPV012-08B | 1.2 | 0.05 | 0 | 300 | 240 | 300 | 240 | 300 | 110 | ||
| SPV015-08B | 1.5 | 0.08 | 0 | 250 | 190 | 250 | 190 | 250 | 110 | ||
| SPV100-08B | 10 | 1.8 | 1 | 360 | 300 | 360 | 300 | 360 | 110 | ||
| SPV100-10B | 3/8'' | 10 | 2.1 | 1 | 360 | 300 | 360 | 300 | 360 | 110 | 3 |
| SPV100-15B | 1/2'' | 10 | 2.1 | 1 | 360 | 300 | 360 | 300 | 360 | 110 | |
| SPV200-20B | 3/4'' | 20 | 6.5 | 1 | 300 | 240 | 300 | 240 | 300 | 240 | 3.6 |
| SPV250-25B | 1'' | 25 | 10 | 1 | 300 | 240 | 300 | 240 | 300 | 240 | 5.3 |
ADVANTAGE
1) Raw Material conforms to China industry standard, bought from famous factory.
2) Insulation grade: H class, good resistance to high temperature;
3) Machined by CNC to make sure the tolerance as the drawing
4) 100% leakage testing under low pressure and high pressure.
5) All kinds of valve and seals material to meet custom requirement.
6) 1 year quality assurance after shipment.
7) After sales technique support
Packing and Shipping
Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping:
Export port:Ningbo or Shanghai, China
Shipping way:By sea, by air, by courier
Delivery time:3 days to 30 days depends on actual orders.
Our Company
XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)
In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.
This success of the company XHnotion Pneumatic is based on:
High class quality standard
Customer satisfaction
Fair price policy
Flexibility
The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008.And we got CE, RoHS, REACH certificate for international market.XHnotion Pneumatic manufactures below products:
Pneumatic Components: Air cylinder, solenoid valve, FRL
Solenoid Calve: Standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve
Pneumatic Fittings: Plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings
Air Gun & Couplers: Pneumatic couplers, air guns, air tool kits
Air Hoses: Air tubing, PTFE tubes, tube cutter, pipes
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

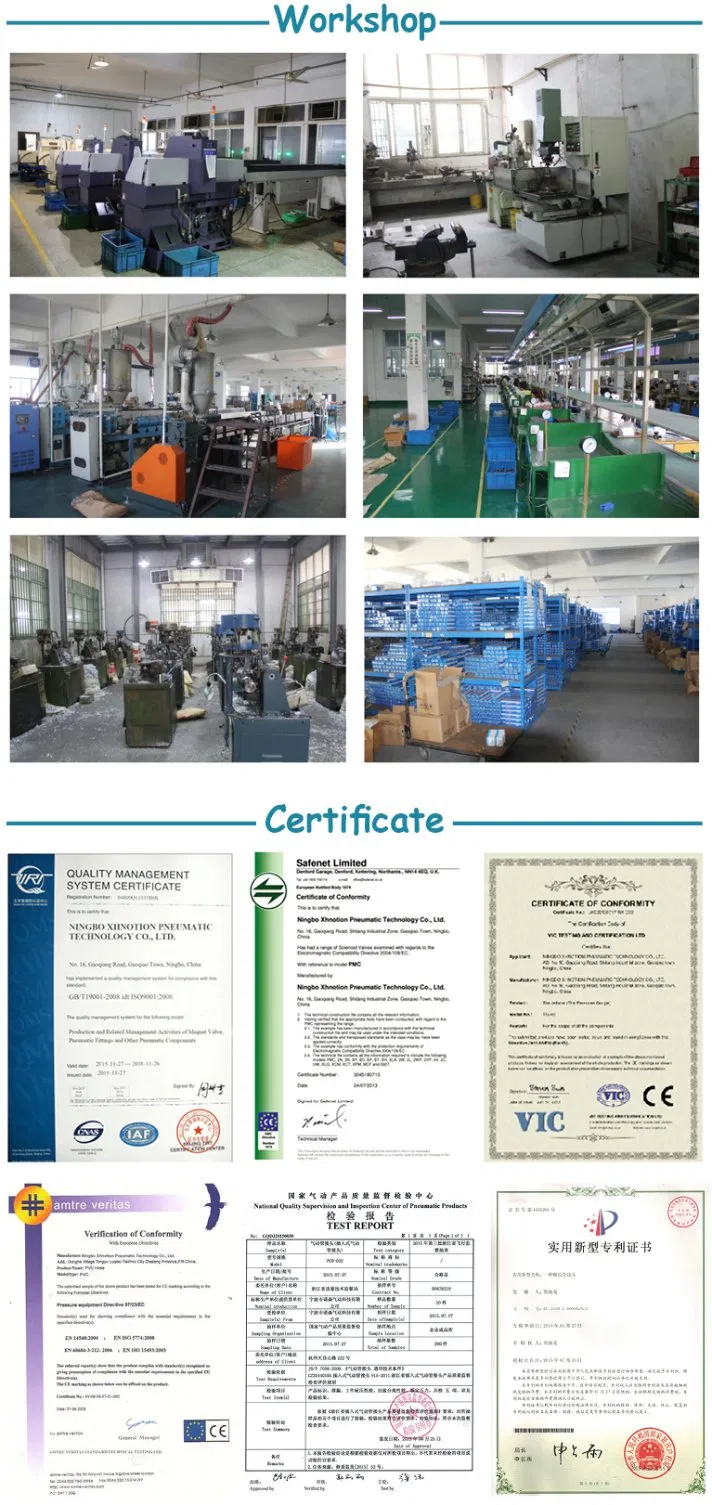

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
FAQ
Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
