Product Description
Air valve
We have different models. No matter what model you need, please feel free to contact me.

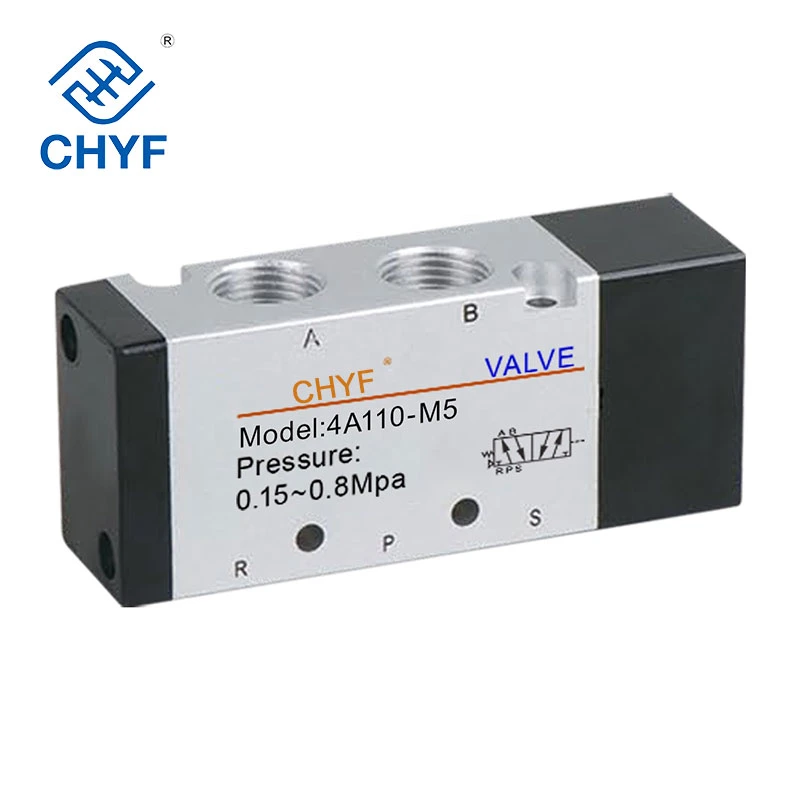

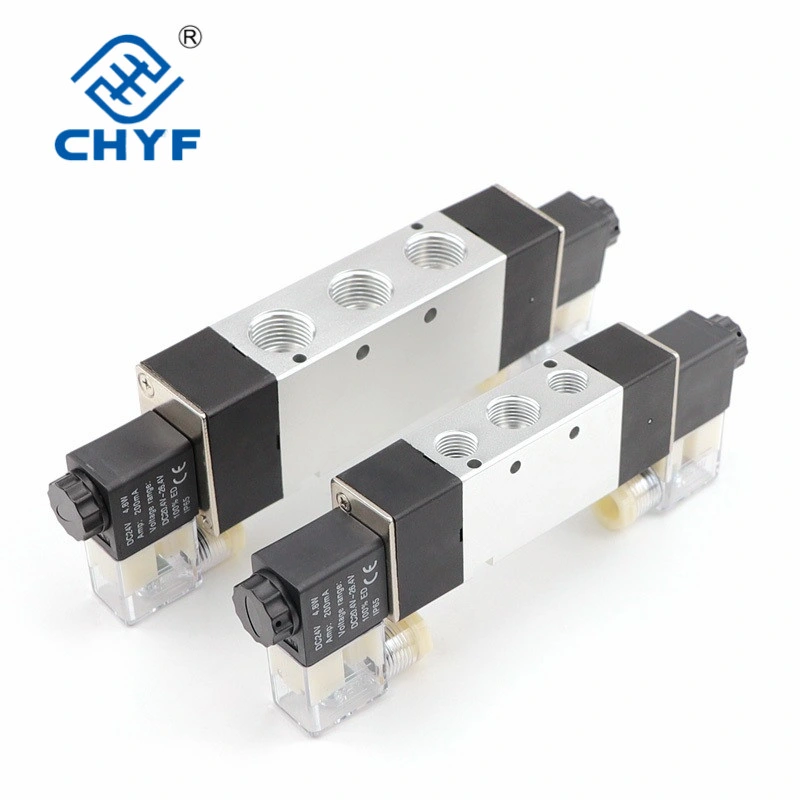

4A Series Air Control Valve
4A series air control valves are suitable for operating double or single acting cylinders in pneumatic control system. The medium is compressed air or neutral technical gases without voltages. The dimension is the same as 4V series valve.

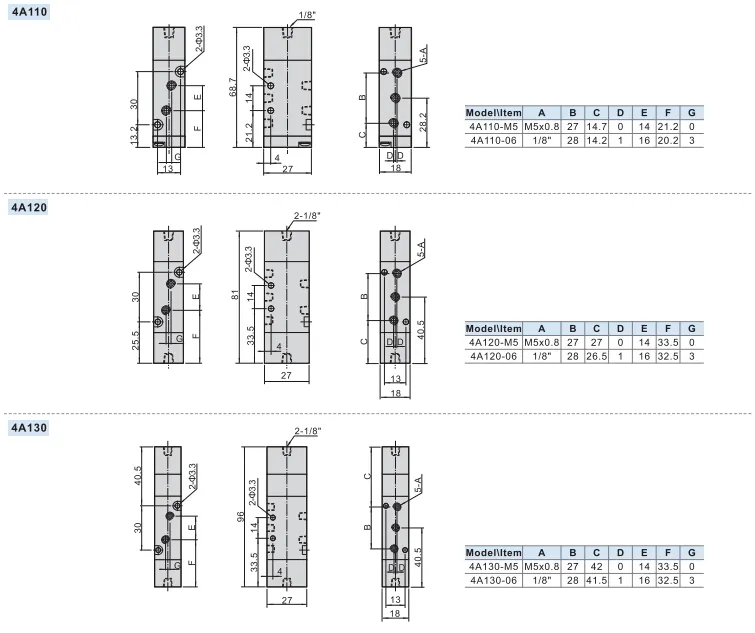

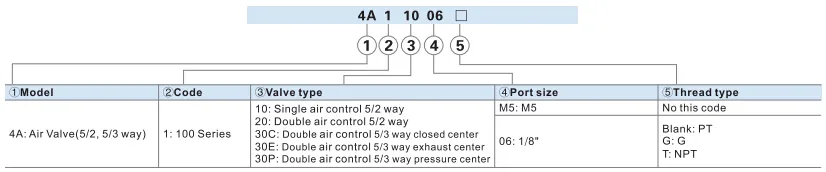

4A110-06 4A210-08 4A310-10 4A410-15
4A120-06 4A220-08 4A320-10 4A420-15
4A130-06C 4A230-08C 4A330-10C 4A430-15C
4A130-06P 4A230-08P 4A330-10P 4A430-15P
4A130-06P 4A230-08P 4A330-10P 4A430-15P
Pneumatic quick coupling is a quick coupling mainly used for air piping and pneumatic tools. It can realize pipeline connection or disconnection without tools. When the ferrule of the mother body moves to the other end, the stainless steel ball automatically rolls outwards. The body is disconnected under the action of the common valve spring force of the parent body and the child body, and the valves of the child body and the parent body are closed separately, instantly blocking the flow of fluid.
We have different models. No matter what model you need, please feel free to contact me.
4A Series Air Control Valve
4A series air control valves are suitable for operating double or single acting cylinders in pneumatic control system. The medium is compressed air or neutral technical gases without voltages. The dimension is the same as 4V series valve.
4A110-06 4A210-08 4A310-10 4A410-15
4A120-06 4A220-08 4A320-10 4A420-15
4A130-06C 4A230-08C 4A330-10C 4A430-15C
4A130-06P 4A230-08P 4A330-10P 4A430-15P
4A130-06P 4A230-08P 4A330-10P 4A430-15P

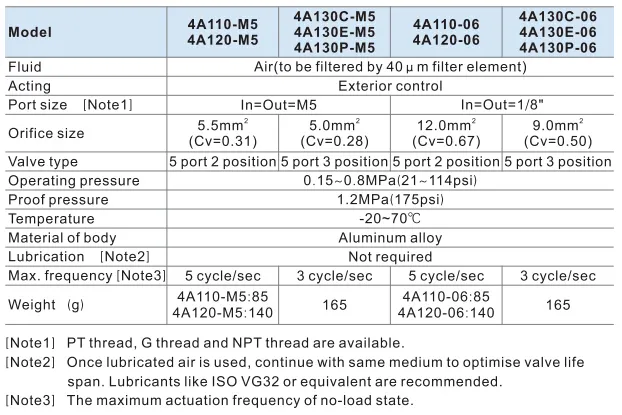

| Model NO. | 4A110-06 | 4A210-08 |
| Working Medium | (40) Air (40M filteration) | |
| Acting Mode | Outside control | |
| Sectional area | 12mm 2 (Cv=0.67) | 16mm 2 (Cv=0.89) |
| Range of working pressure Kgf/cm2 | 1.5~8.0Kgf/cm2(21-114Psi) | |
| Max tolerance pressure | 12Kgf/cm2(170.6Psi) | |
| Working temperature | -5~60C | |
| Voltage range | -15%~+10% | |
| Max acting frequeney | Five times per second | |
| Weight | 120g | 220g |
Pneumatic quick coupling is a quick coupling mainly used for air piping and pneumatic tools. It can realize pipeline connection or disconnection without tools. When the ferrule of the mother body moves to the other end, the stainless steel ball automatically rolls outwards. The body is disconnected under the action of the common valve spring force of the parent body and the child body, and the valves of the child body and the parent body are closed separately, instantly blocking the flow of fluid.
