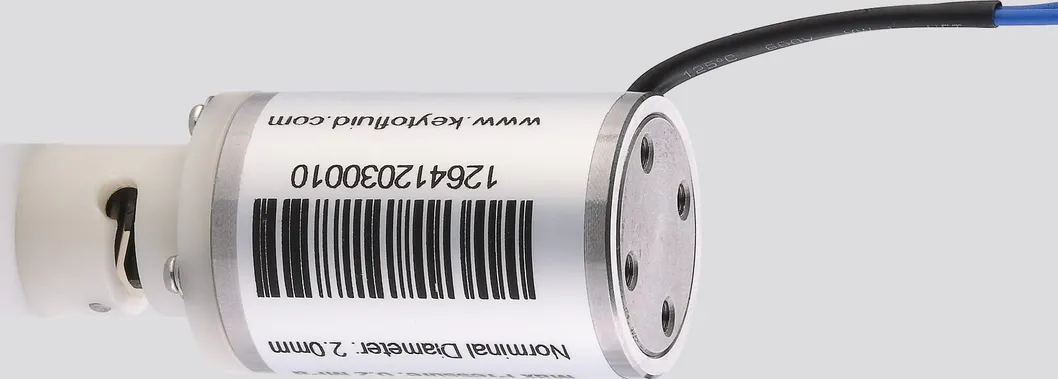

Single Channel Pinch Valve, Silicone Tubing, 1224series

Product Description

The 1224 series solenoid valve is a family of single channel pinch valves. This series solenoid valve is a high performance, low cost and maintenance free pinch valve with multiple model options, controlling the switch of flow path for different types of tube. The life cycle of valves can be more than 2 million. The tubing of solenoid valve is simple and easy to clean, applying to the application that test samples are with impurities and

particulate matters and avoid cross-contamination among samples.

Silicon tube specification: 2mm X 4mm, shore hardness: 60;

Flow capacity: 2mmX4mm silicon tube, CV≥0.05, flow≥8.5mL/s (differential pressure

50KPa, 25ºC, pure water)

Wetted material depends on the silicon tube;

Long lifetime, high performance.

Single Channel Pinch Valve, Silicone Tubing, 1224series

We are one of the leading supplier of fluid control components and systems in China. Product lines include solenoid valve, precision dispense pumps, diaphragm pumps, syringe, machining/ bonding componets etc.
