Hongsen 10 Type 1068 -4 Solenoid Valve (welded port)

Product Description

Product Description:

·Model 10 solenoid valve is a direct-operated or servo-operated valve, which is applicable to one direction flow.·Model 10 solenoid valve is used on the liquid, air suction or not vapor piping of a freezer, cold store and air conditioning unit.
·The valve seat of Model 10 solenoid valve is well sealed with perfect sealing performance.
·Model 10 solenoid valves with solenoid of different voltage are available.
·Both packed and separated Model 10 solenoid valves are available and it means the valve body could be supplied separately from the solenoid.

Product Model:

Model	Connection		Kv(/h)	Nominal Refrigerating Capacity kW(liquid)
	Flare	Welded		R22	HFC-134a	R404a/R502
1020-2	1/4 SAE	--	0.175	3.15	2.95	2.08
1028-2	--	14 ODF
1020-3	3/8 SAE	--	0.230	4.15	3.90	2.75
1028-3	--	3/8 ODF
1064-3	3/8 SAE	--	0.800	14.50	13.50	9.50
1068-3	--	3/8 ODF
1064-4	1/2 SAE	--	0.800	14.50	13.50	9.50
1068-5	--	1/2 ODf
1070-4	--	5/8 ODF
1078-4	1/2 SAE	--	2.200	39.60	37.10	26.20
1070-5	--	1/2 ODF
1070-5	5-8 SAE	--	2.610	47.00	44.00	31.00
1078-5	--	5/8 ODF
1078-6	--	3/4 ODF	4.300	77.50	72.045	51.10
1098-7	--	7/8 ODF	5.700	102.60	96.00	67.85

1) Kv: The flow rate (m³/h) of water of density 1 t/m³ passing through the solenoid valve under the pressure differential of 100 KPa.
2) The MOPD of gaseous medium is about 0.1 MPa higher than that of liquid.

Structure:

1,solenoid nut; 2,position cap; 3,sleeve; 4,return spring; 5,iron core component; 6,sleeve cap; 7,dust cap; 8,tube nut; 9,O-ring(CR); 10,valve body; 11,solenoid(8W); 12,copper tube; 13,baffle; 14,valve core component; 15,fixing nut; 16,valve bonnet; 17,fixing screws(4 pieces)

Model	Overall Dimension										Weight(g)
Model	A	(B)	C	L	Thread M	Φd	ΦD	E	F	H	Weight(g)
1020-2	12	61.5	15	58	7/16-20UNF	--	--	--	--	--	350
1028-2			--	--	--	6	6.5	7	25	90	315
1020-3			18	64	5/8-18UNF	--	--	--	--	--	330
1028-3			--	--	--	10	10.1	8	32	104	320
1064-3	12.5	68.5	18	68	5/8-18UNF	--	--	--	--	--	450
1068-3			--	--	--	10	10.1	8	30	108	390
1064-4			20	72	3/4-16UNF	--	--	--	--	--	480
1068-4			--	--	--	12	12.8	10	33	114	390
1068-5			--	--	--	16	16.1	14	31	130	440
1070-4	16	75.5	20	100	3/4-16UNF	--	--	--	--	--	745
1078-4			--	--	--	12	12.8	10	31	134	665
1070-5			23	106	3/4-16UNF	--	--	--	--	--	800
1078-5			--	--	--	16	16.1	14	38	152	655
1078-6			--	--	7/8-14UNF	19	19.1	16	41	158	660
1098-7	27.5	78.5	--	--	--	22	22.3	17	45	180	995

Note:1,Solenoid weight 185g; 2,Nut weight is excluded in above mentioned weight; 3,Nut weight:1/4-18g,3/8-30g,1/2-33g,5/8-50g and3/4-93g.

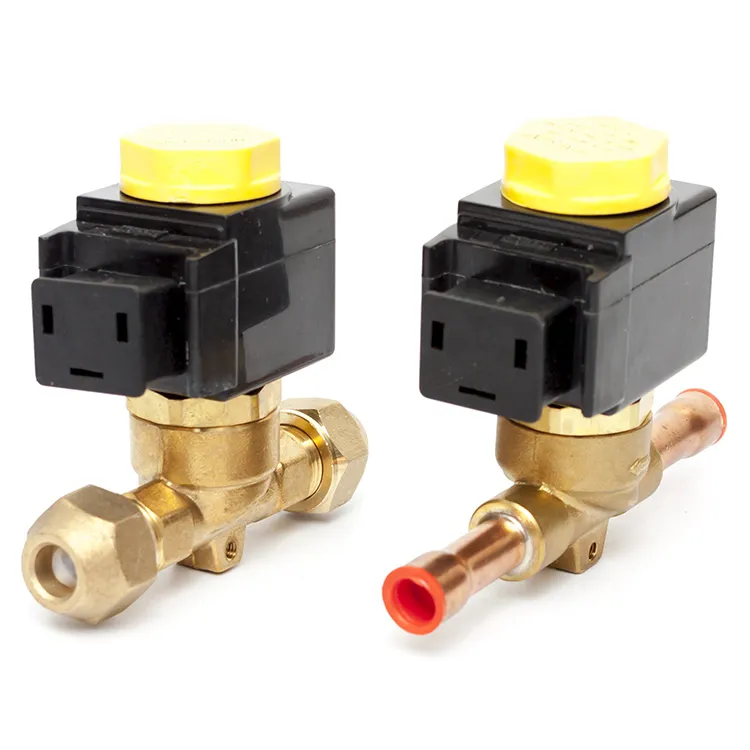

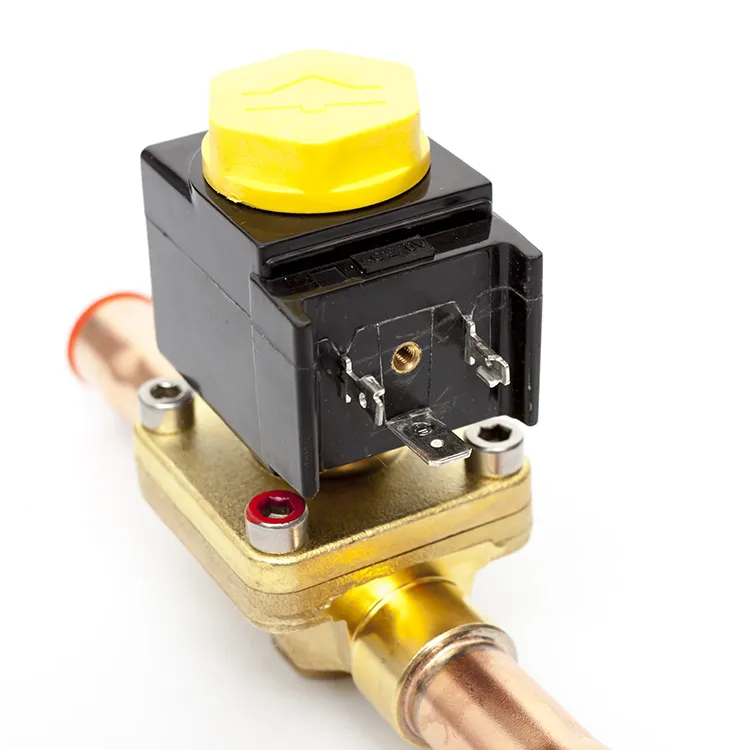

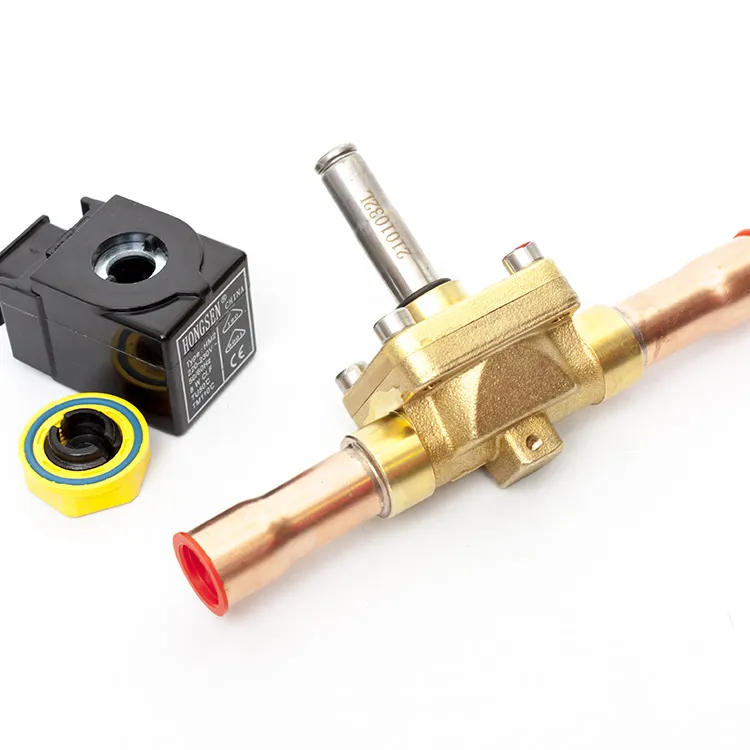

Image display:

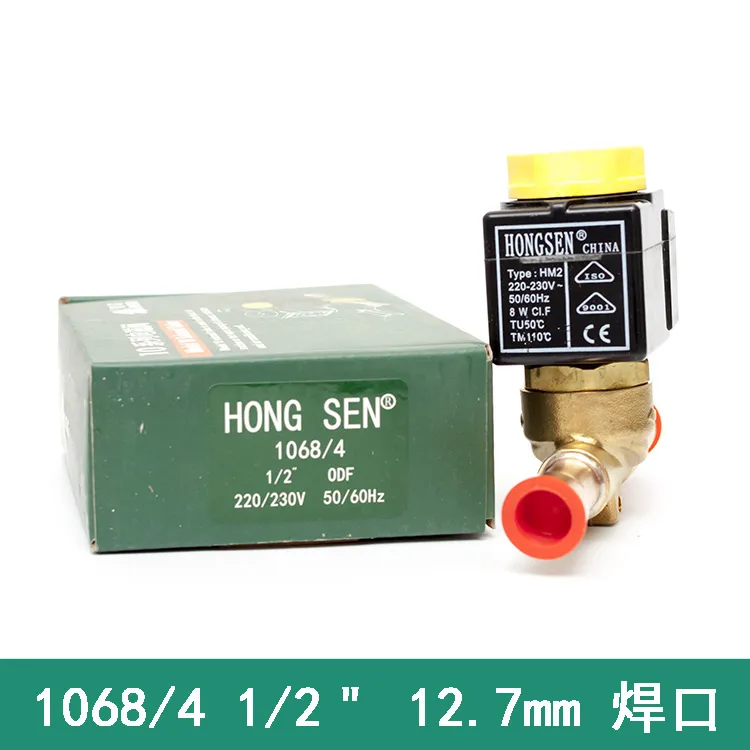

Hongsen 10 Type 1068-4 Solenoid Valve (welded port)
