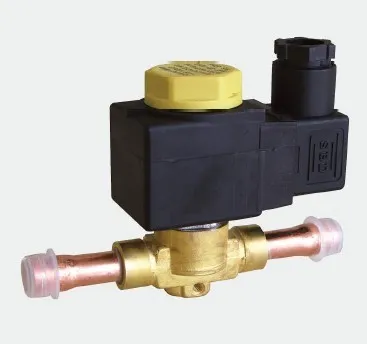

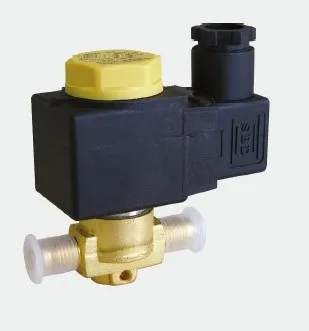

Freon Solenoid Valve with Thread Type and Welding Type (SB125)
SB125 Freon Solenoid ValveFeatures :Commonly used for control of freon in industrial refigerationScrew type and welding type optionalGood water-proof,heat-proof characteristicVarious connection and voltages made to order of clientsTechnical dataModelPort sizeOrificeWorking pressureMax.working pressu......
Send Inquiry
Product Description

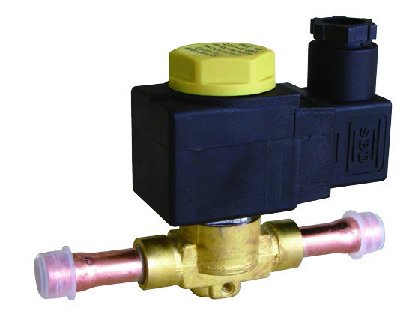

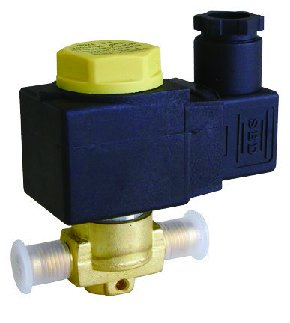

SB125 Freon Solenoid Valve
Features :
Commonly used for control of freon in industrial refigeration
Screw type and welding type optional
Good water-proof,heat-proof characteristic
Various connection and voltages made to order of clients
| Model | Port size | Orifice | Working pressure | Max.working pressure | Rated voltage | Power |
| SB125-1020/2 | 1/4"Thread port | 2.5mm | 21Bar | 30Bar | DC24V AC24V~380V ±10% | 8W |
| SB125-1020/3 | 3/8"Thread port | 3.0mm | ||||
| SB125-1028/3 | 3/8"Welded port | 3.0mm | ||||
| SB125-1064/3 | 3/8"Thread port | 7.0mm | ||||
| SB125-1064/4 | 1/2"Thread port | 7.0mm | ||||
| SB125-1070/4 | 1/2"Thread port | 12.5mm | ||||
| SB125-1070/5 | 5/8"Thread port | 12.5mm | ||||
| SB125-1090/5 | 5/8"Thread port | 16.5mm | ||||
| SB125-1070/6 | 3/4"Thread port | 17.0mm | ||||
| SB125-1028/2 | 1/4"Welded port | 2.2mm | ||||
| SB125-1068/2 | 3/8"Welded port | 7.0mm | ||||
| SB125-1068/4 | 1/2"Welded port | 7.0mm | ||||
| SB125-1078/4 | 1/2"Welded port | 12.5mm | ||||
| SB125-1078/5 | 5/8"Thread port | 12.5mm | ||||
| SB125-1078/6 | 3/4"Welded port | 17.0mm | ||||
| SB125-1078/7 | 7/8"Welded port | 16.5mm | ||||
| SB125-1078/9 | 1-1/8"Welded port | 25.5mm | ||||
| SB125-1079/7 | 7/8"Welded port | 12.5mm | ||||
| SB125-1099/9 | 1-1/8"Welded port | 16.5mm | ||||
| SB125-1079/11 | 1-3/8"Welded port | 25.5mm | ||||
| SB125-1079/13 | 1-5/8"Welded port | 27.0mm |

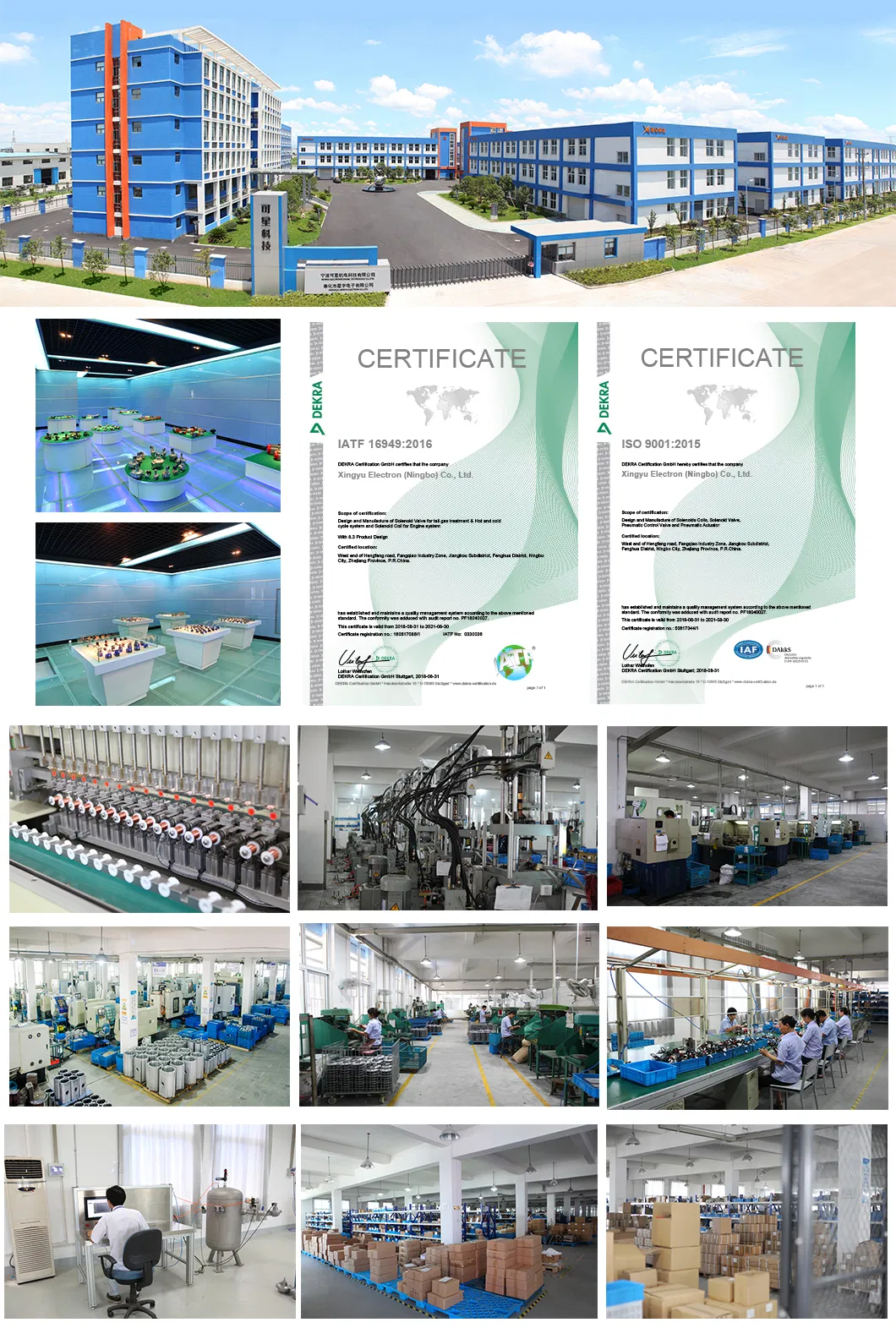

Company information
Xingyu Electron(Ningbo)Co.,Ltd. is one of the key enterprises in Chinese pneumatic and valve industry,We specialize in development,manufacturing, marketing and service of pneumatic actuator,angle seat valves,solenoid valves,solenoid coils and DIN connectors;
"Not to be the biggest,but to be the strongest" is our business goal and ideal,let us make best efforts for a better future.
Brief Introduction:
--Approx 30 years' experience in manufacturing solenoid coils;
--Started to make solenoid valves & pneumatic actuators since 2004;
--ISO 9001 and IATF16949 certificated company;
--Main products: pneumatic actuator, Angle seat valves, Solenoid valves, solenoid coils,
Digital pressure switch, Vacuum generator, E/P regulator;
--Application: Pneumatic & Hydraulic industries, fluid control system,
air and water treatment system, Automatic industry, etc;
FAQ
Q:Are you a trading company or a factory?
A: We are a factory, manufacturer solenoid coils since year 1990.
Q:After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days.
Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty ?
A: Normally it is guaranteed for 12 months since dispatching from factory
Q: Can you customized the products?
A: Yes, we have professional R&D team, we supply customized products to customers
