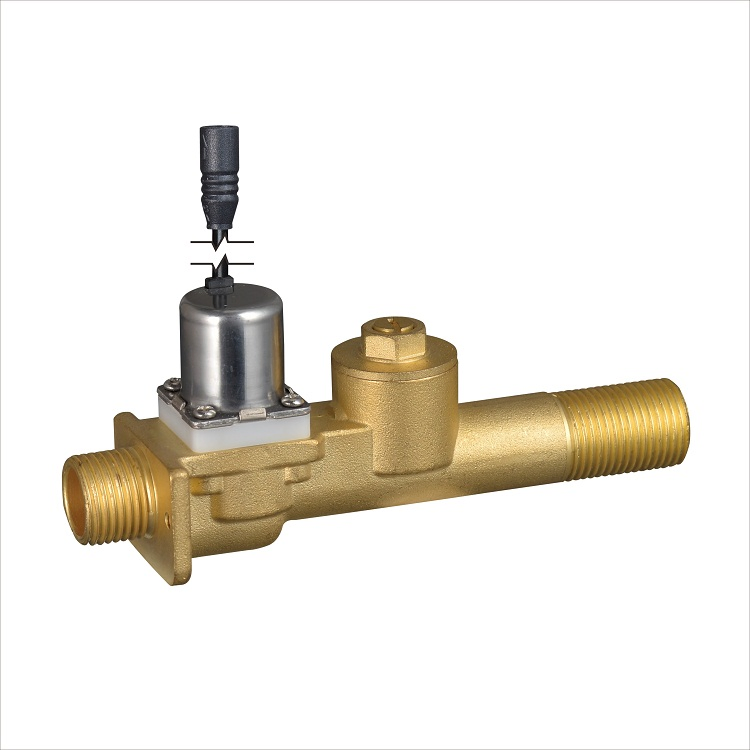

Fd- 628 -7 Solenoid Valve for Commercial Sensor Urinals
FD-628-7 Solenoid Valve for Sensor Urinals CommerciallyConnection:ThreadConnection type:2-PIN/DC/JST waterproof socketSuitable medium: water, gas, etc.Flow direction: 1 inlet 1 outletMaterial:Brass valve bodyEnvironmental pressure :0.02-0 .8 MPatemperature :1°C~+60°CBistable solenoid......
Send Inquiry
Product Description

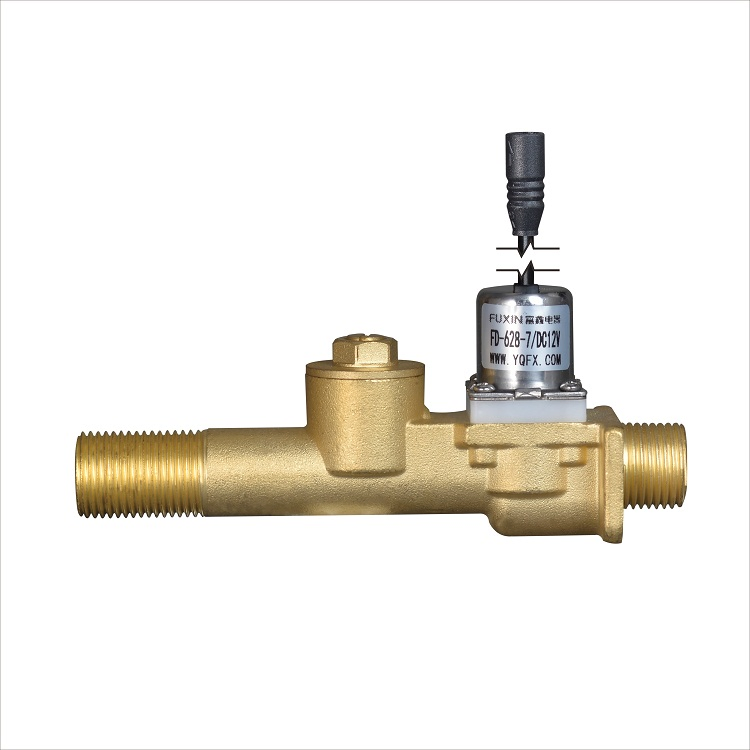

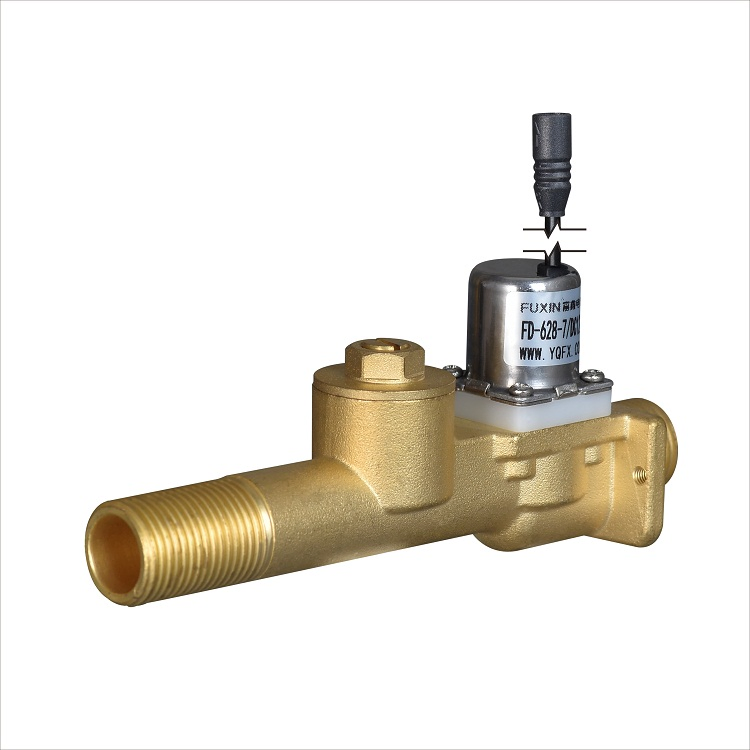

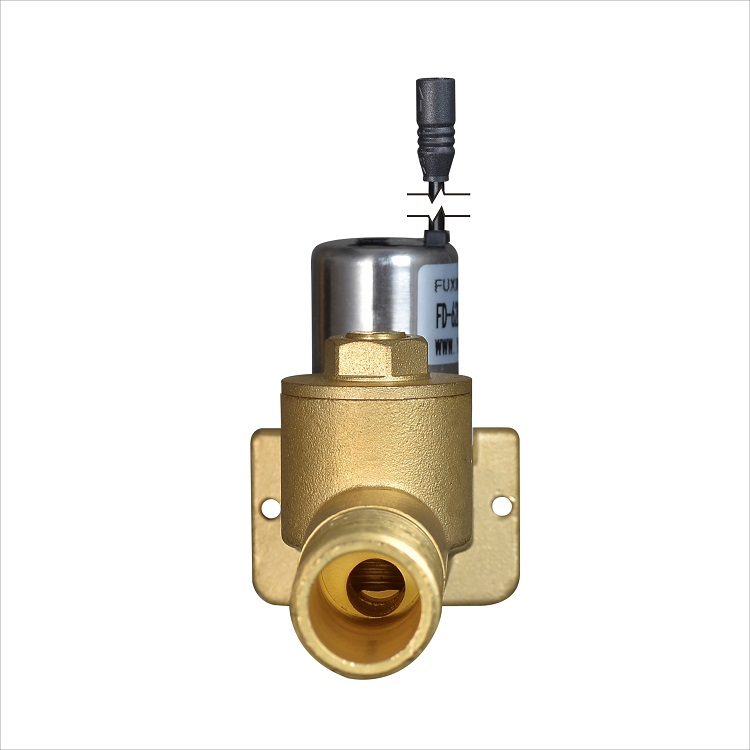

FD-628-7 Solenoid Valve for Sensor Urinals Commercially
Connection:Thread
Connection type:2-PIN/DC/JST waterproof socket
Suitable medium: water, gas, etc.
Flow direction: 1 inlet 1 outlet
Material:Brass valve body
Environmental pressure :0.02-0 .8 MPa
temperature :1°C~+60°C
Bistable solenoid valve controlling water FD18 series could be brass body and plastic POM material body,with beautiful appearance, stable performance, versatility and usage to meet different customers' requirement
We are big factory, so can be the most reliable partner !!!
1)Our advantage:
We are the manufacturer with more than 15 years experience in sensor sanitary solenoid valves. Best price, quality and service, Also we can control the production status.
Fuxin team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new level.
2)Terms of payment: T/T, L/C, Western union.
3)Lead time: average 15 days after receiving deposit.
4)Delivery: Shanghai/Ningbo ,by sea or air.
5)Guarantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7) We have many Certificates.
Welcome you to cooperate
Connection:Thread
Connection type:2-PIN/DC/JST waterproof socket
Suitable medium: water, gas, etc.
Flow direction: 1 inlet 1 outlet
Material:Brass valve body
Environmental pressure :0.02-0 .8 MPa
temperature :1°C~+60°C
Bistable solenoid valve controlling water FD18 series could be brass body and plastic POM material body,with beautiful appearance, stable performance, versatility and usage to meet different customers' requirement
| Rate voltage | DC 6V | DC 12V | DC 24V | |||||||
| Coil resistance | 16Ω ±0.5Ω(20ºC) | 36Ω ±0.5Ω(20ºC) | 130Ω ±0.5Ω(20ºC) | |||||||
| Min current | 250mA | 300mA | 166mA | |||||||
| Switch mode | DC pulse | DC continuous | ||||||||
| Pulse wide | ≥30ms | |||||||||
| Operating pressure | 0.02Mpa-0.8Mpa | |||||||||
| Media temperature | 1ºC--75ºC | |||||||||
| Responding time | Open ≤0.15s close≤0.5s | |||||||||
| Pressure (MPa) | 0.02 | 0.05 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
| Flow rate L/min | 3 | 9 | 14 | 18 | 20 | 27 | 30 | 34 | 36 | 40 |
We are big factory, so can be the most reliable partner !!!
1)Our advantage:
We are the manufacturer with more than 15 years experience in sensor sanitary solenoid valves. Best price, quality and service, Also we can control the production status.
Fuxin team with strong ability in designing and after sell service. Cooperation with Carrier has improved our quality to a new level.
2)Terms of payment: T/T, L/C, Western union.
3)Lead time: average 15 days after receiving deposit.
4)Delivery: Shanghai/Ningbo ,by sea or air.
5)Guarantee: One year since delivery.
6)Inspection: 100% testing for all the valves.
7) We have many Certificates.
Welcome you to cooperate
