Product Description

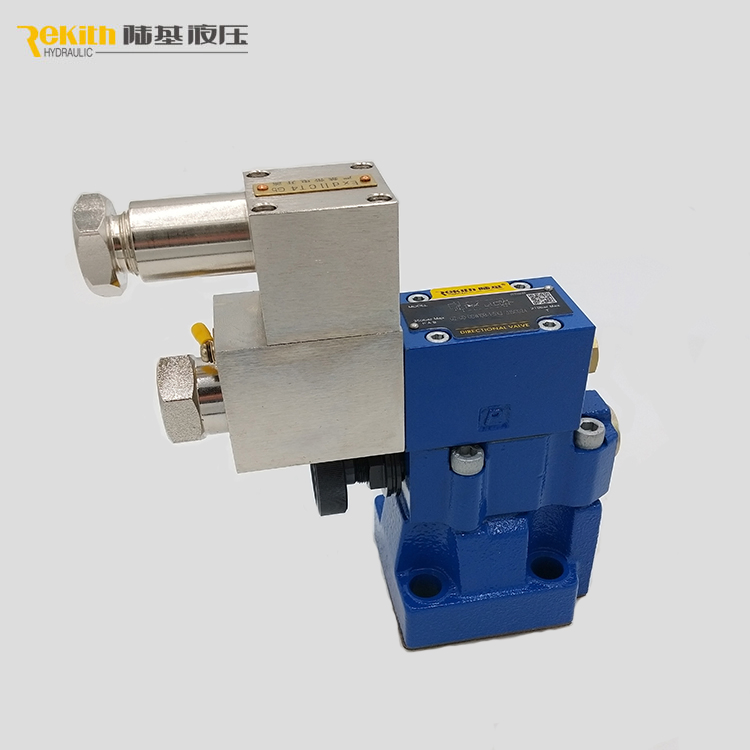

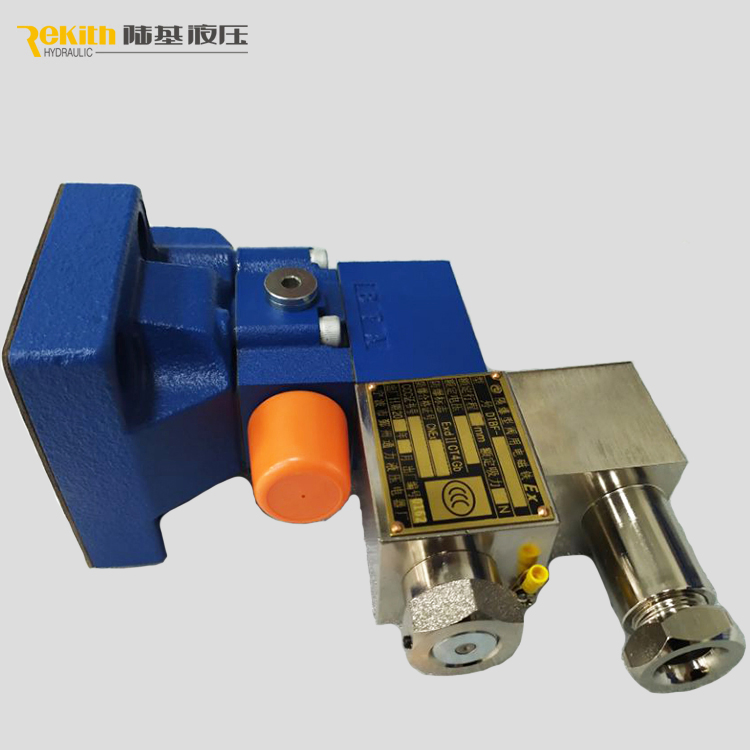

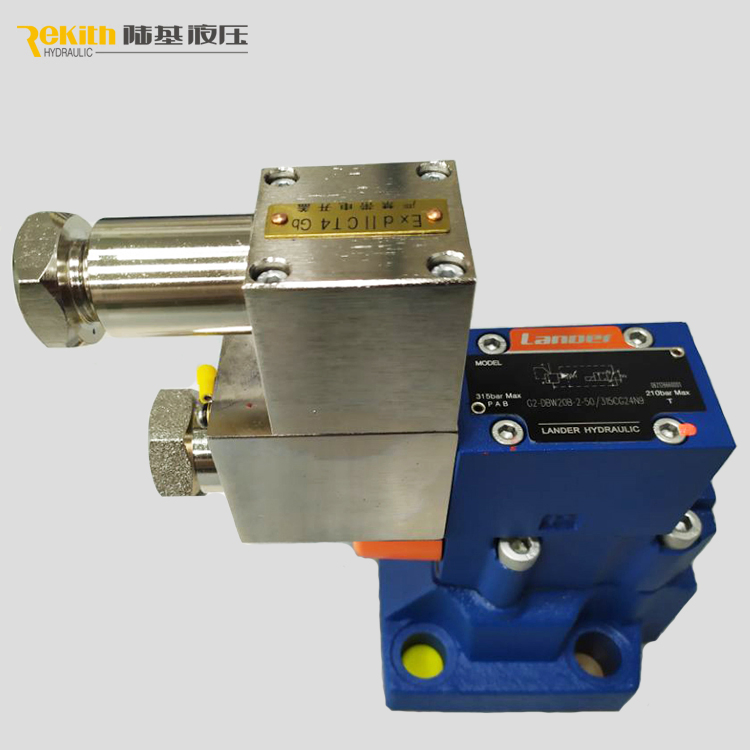

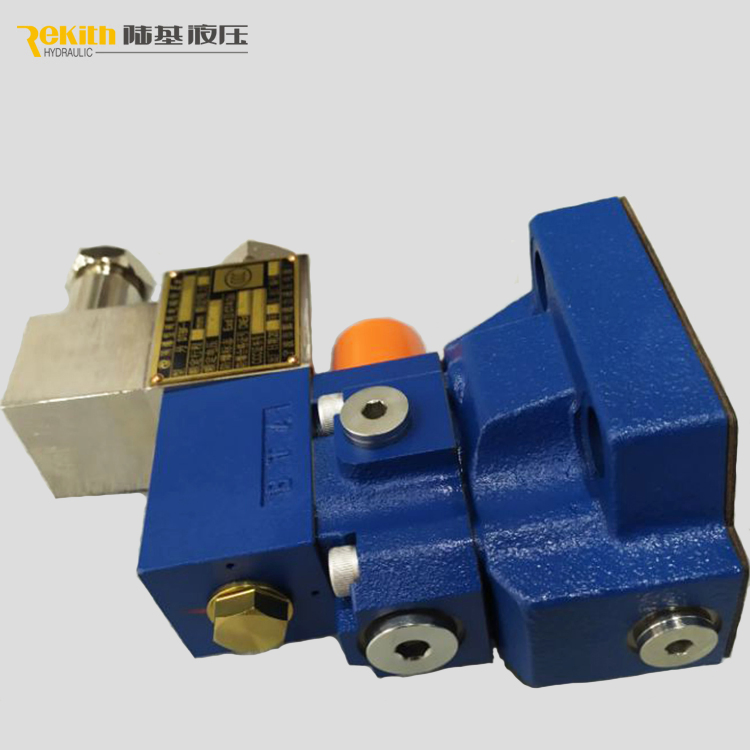

Explosion isolation solenoid pilot relief valve GD-DBW10/20/30

Fixing position			Opitional
Weight			G-DBW10	G-DBW15	G-DBW20	G-DBW25	G-DBG30
Subplate connection	G-DBW	kg	5.6	-	6.5	73	7.9
Thread connection	G-DBW...G	kg	7.9	7.8	7.7	8.5	8.4
Max.operating pressure	Port P,X	MPa	35.0
	Port T	MPa	31.5
Max.back pressure	Port Y (DB)	MPa	31.5
	Port Y,T(DBW)	MPa	DC 21 AC 16
Max.setting pressure		MPa	5,10,50,31.5,35.0
Min.setting pressure		MPa	Related to flow(refer to the curve)
Max flow-rate	Subplate connection	L/min	250	-	500	-	650
	Thread connection		250	500	500	500	650
Fluid			Mineral oil suitable for NBR and FKM seal
			Phosphate ester for FKM seal
Fluid temperature range		ºC	-30 to +80 (NBR seal)
			-15 to +80(FKM seal)
Viscosity range		mm²/s	10 to 800
Degree of contamination			Maximum permissible degree of fluid contamination: 20/18/15, ISO 4406
