China Directional Hydraulic Valve We10-5X Solenoid Valve for Block Rekith

Product Description

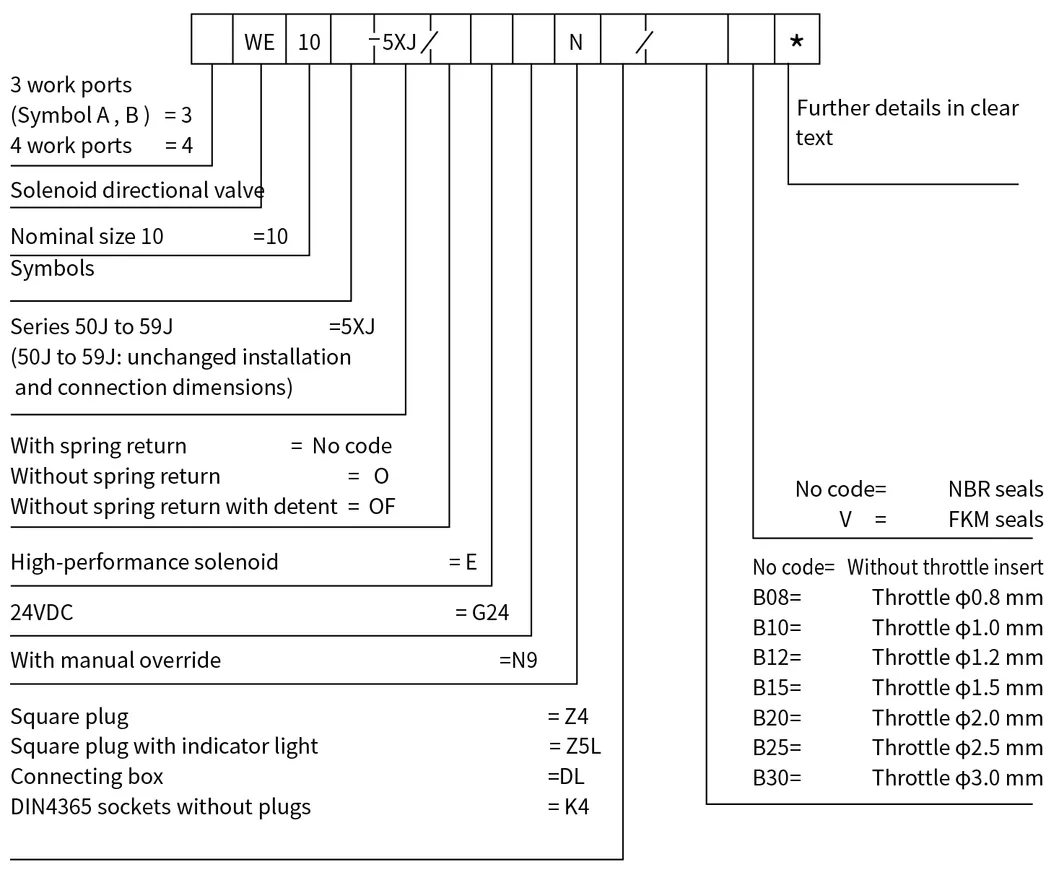

Solenoid-operated directional valve WE10

Fixing position			Optional
Environment temperature range		ºC	-30 to +50(NBR seal)
			-20 to +50(FKM seal)
Weight			Central monitoring station	Independently wiring
	Single solenoid	kg	4.4(DC),3.6(AC)	4.3(DC),3.5(AC)
	Double solenoids	kg	6.0(DC),4.4(AC)	5.9(DC),4.3(AC)
Max.operating pressure	Port A,B,P	bar	315
	Port T	bar	210(DC),160(AC), when the operating pressure exceeds the permission value, spool symbol A and B must make the port T for draining.
Max.flow-rate		L/min	120
Flow cross section(switching neutral position)	Version V	mm²	11(A/B to T),10.3(P to A/B)
	Version W	mm²	2.5(A/B to T)
	Version Q	mm²	5.5(A/B to T)
Fluid			Mineral oil suitable for NBR and FKM seal
			Phosphate ester for FKM seal
Fluid temperature range		ºC	-30 to +80(NBR seal)
			-20 to +80(FKM seal)
Viscosity range		mm²/s	2.8 to 500
Degree of contamination			Maximum permissible degree of fluid contamination : Class 9.NAS 1638 or 20/18/15, ISO4406
Type of voltage			DC	AC 50/60Hz
Available voltage		V	12,24,42,60,96,110,180,205,220	42,110,220,230
Voltage tolerance (nominal voltage)		%	±10
Power consumption		W	35	-
Holding power		VA	-	50
Making power		VA	-	550
duty			Continuous working
Switching time to ISO6403	ON	ms	45 to 60	15 to 25
	OFF	ms	20 to 30	20 to 30
Switched frequency		times/h	15000	7200
Type of protection to DIN 40050			IP65
Max.coil temperature		ºC	150	180

Directional Hydraulic Valve We10-5X Solenoid Valve for Block Rekith

Q1: What is your sample policy?

A: We can supply two free samples, but the customers have to pay the courier cost.

Q2: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q3: How to guarantee the high quality?
A: We have testing department to make sure quality of every product, appearance, flow and pressure test are good.

Q4: How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your payment. The specific delivery time depends on the items and the quantity of your order.

Q5: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q6: What is your terms of packing?
A: Generally, we pack our goods in brown cartons and plywood boxes.

Q7: What is your terms of payment?
A: 100% T/T in advance, or 30% T/T as deposit and 70% paid before delivery for bigger order with bigger value.

Q8: How do you make our besiness long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
