Product Description

·Price:-/
· Place of Origin:Shandong China (Mainland)
· Fuel:Diesel
· Cold Style:Water-cooled
· Start:water-cooled / inlet air inter cooling
· Related Products:Tag: Diesel engine, diesel generator

Item specifics

Place of Origin: Shandong China (Mainland)
Fuel: Diesel
Cold Style: Water-cooled
Start: water-cooled / inlet air inter cooling
Port: QINGDAO
Usage: torque converter sets /drilling rigs /mu...
Model Number: 2000 Diesel Engine (390-900Kw)
Cylinder: 12, 8-cylinder, V shape, 60°angle
Payment Terms: L/C,T/T
Brand Name: Ji Chai
Stroke: 4 Stroke
Supply Ability: 400 Set/Sets per Month

Specifications

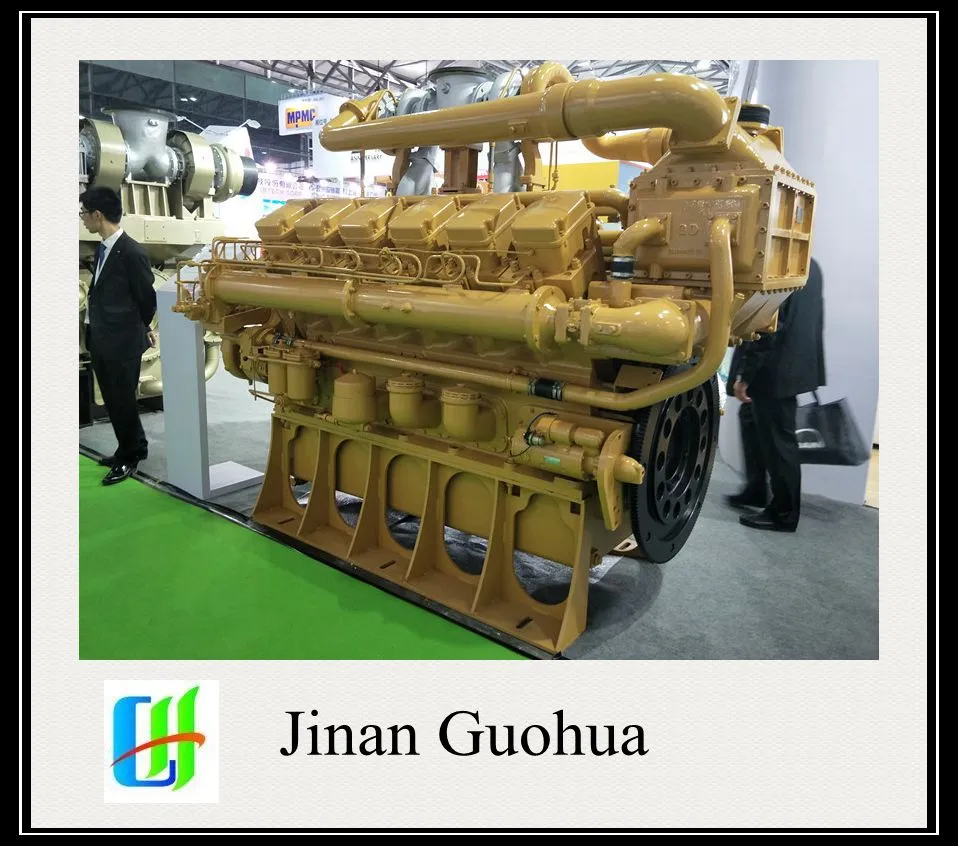

2000 (390-900Kw) Diesel Engine
1.Improved fuel economy
2.Increased power output
3.Low noise level and stability
2000 (390-900Kw) Diesel Engine
Technical Specification of 2000 Diesel Engine:

Model	Rated power (kW)	Rated rpm (r/min)	Fuel consumption (g/kw.h)	Oil consumption (g/kw.h)	Overall dimensions (mm)	Net weight (kg)
G12V190ZL1	1000	1500	209.4	≤1.6	2692x1560x2070	5300
G12V190PZL1	4301x1980x2678	8100
G12V190ZL-3	810	1300	2692x1560x2070	5300
G12V190PZL-3	4301x1980x2678	8100
G12V190ZL-1	740	1200	2692x1560x2070	5300
G12V190PZL-1	4301x1980x2678	8100
G12V190ZL-2	600	1000	2692x1560x2070	5300
G12V190PZL-2	4301x1980x2678	8100
G8V190ZL	600	1500	213.5	≤2.7	2112x1560x2080	4300
G8V190PZL	3950x1980x2678	6750
G8V190ZL-3	510	1300	2112x1560x2080	4300
G8V190PZL-3	3950x1980x2678	6750
G8V190ZL-1	470	1200	2112x1560x2080	4300
G8V190PZL-1	3950x1980x2678	6750
G8V190ZL-2	390	1000	2112x1560x2080	4300
G8V190PZL-2	3950x1980x2678	6750

Technical Parameters

Structure type	4-stroke, direct injection combustion chamber, water-cooled, exhaust gas turbocharged, inlet air inter cooling
Number and arrangement of cylinders	12, 8-cylinder, V shape, 60°angle
Diameter of cylinders(mm)	190
Stroke(mm)	210
Total displacement(L)	71.45/47.6
Compression ratio	14:1
Exhaust temperature()	≤600
Outlet temperature()	≤90
Oil temperature(oil sump,)	≤95
Steady speed change ratio (%)	≤8(generator sets≤5)
Cooling mode	Pressurized water cooling
Lubrication mode	Press and spray lubrication
Starting mode	Air motor or electric motor starting

Jinan Guohua Green Power Equipment Co,ltd

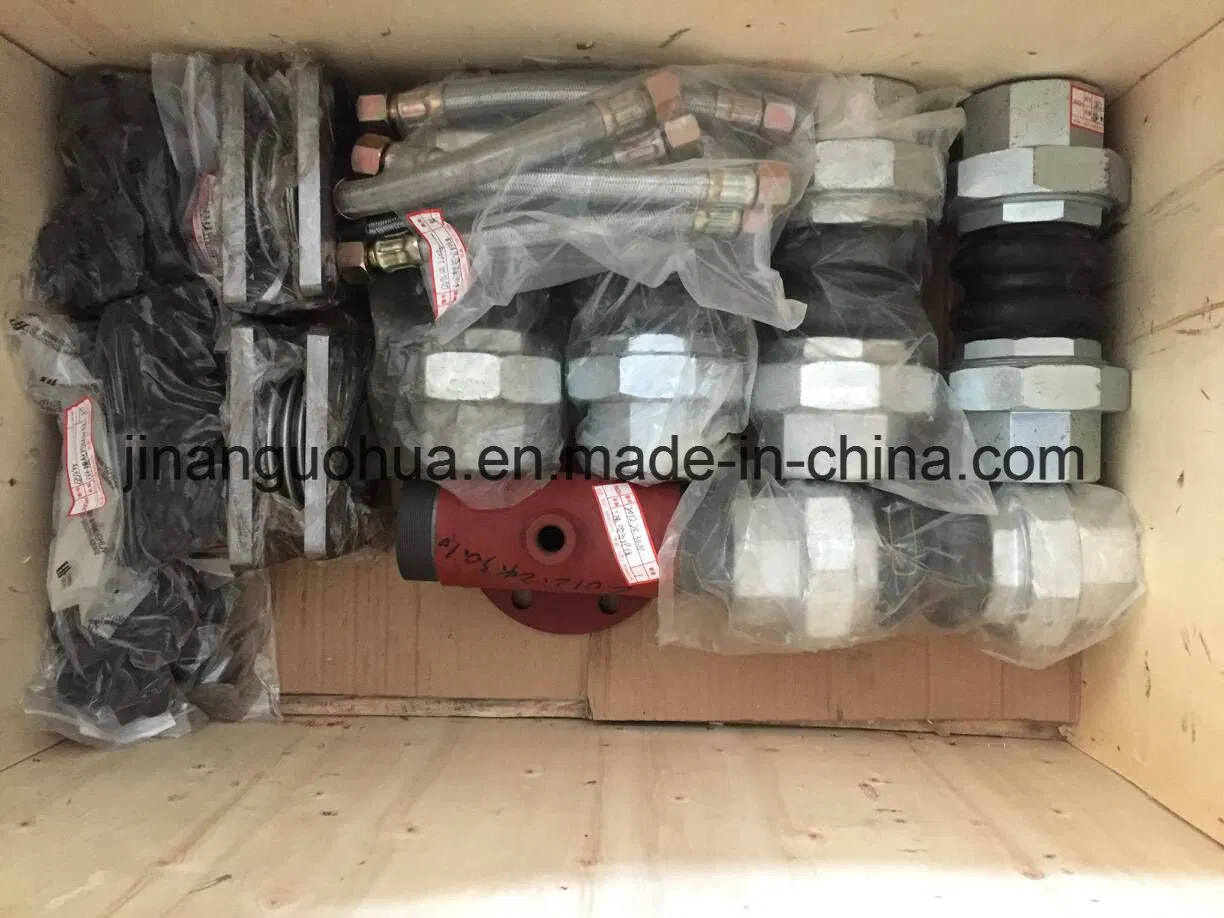

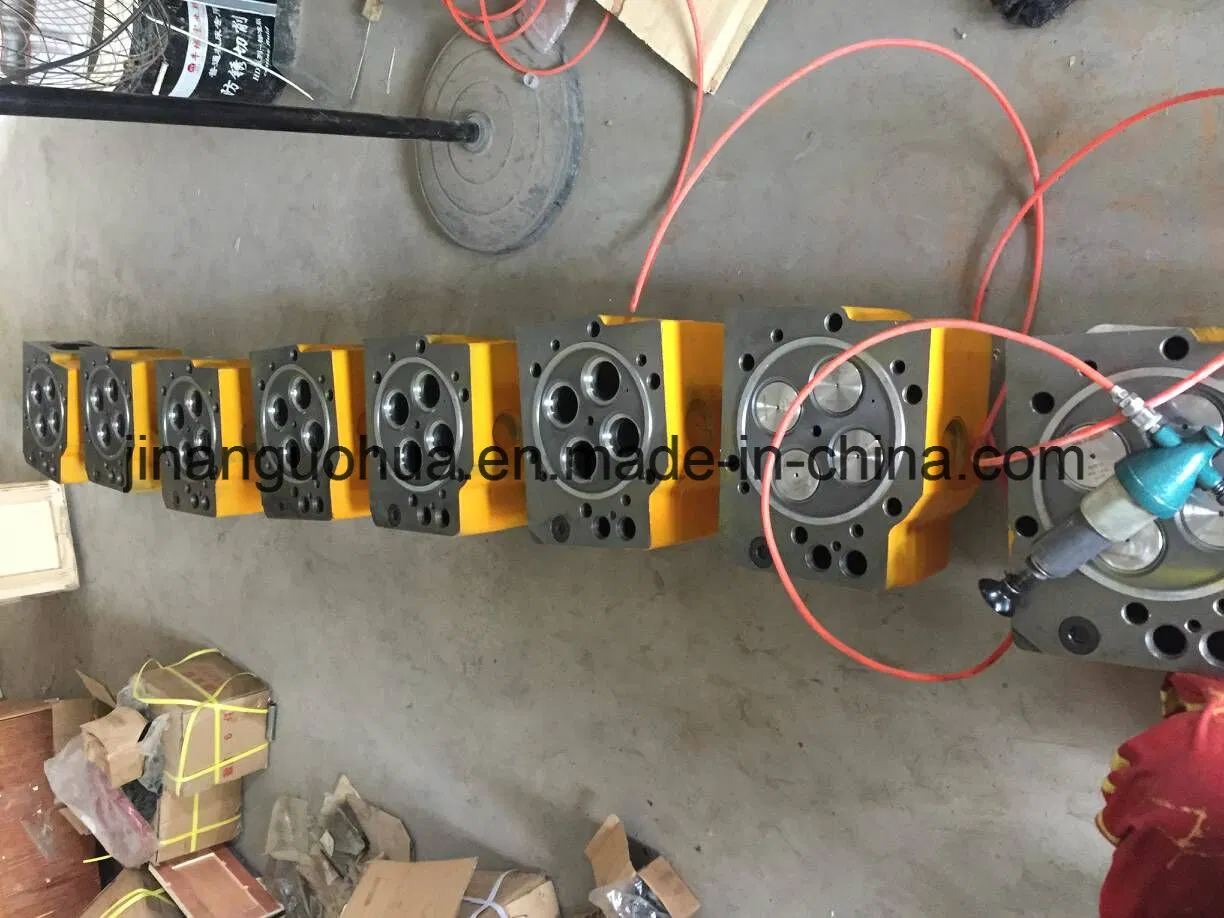

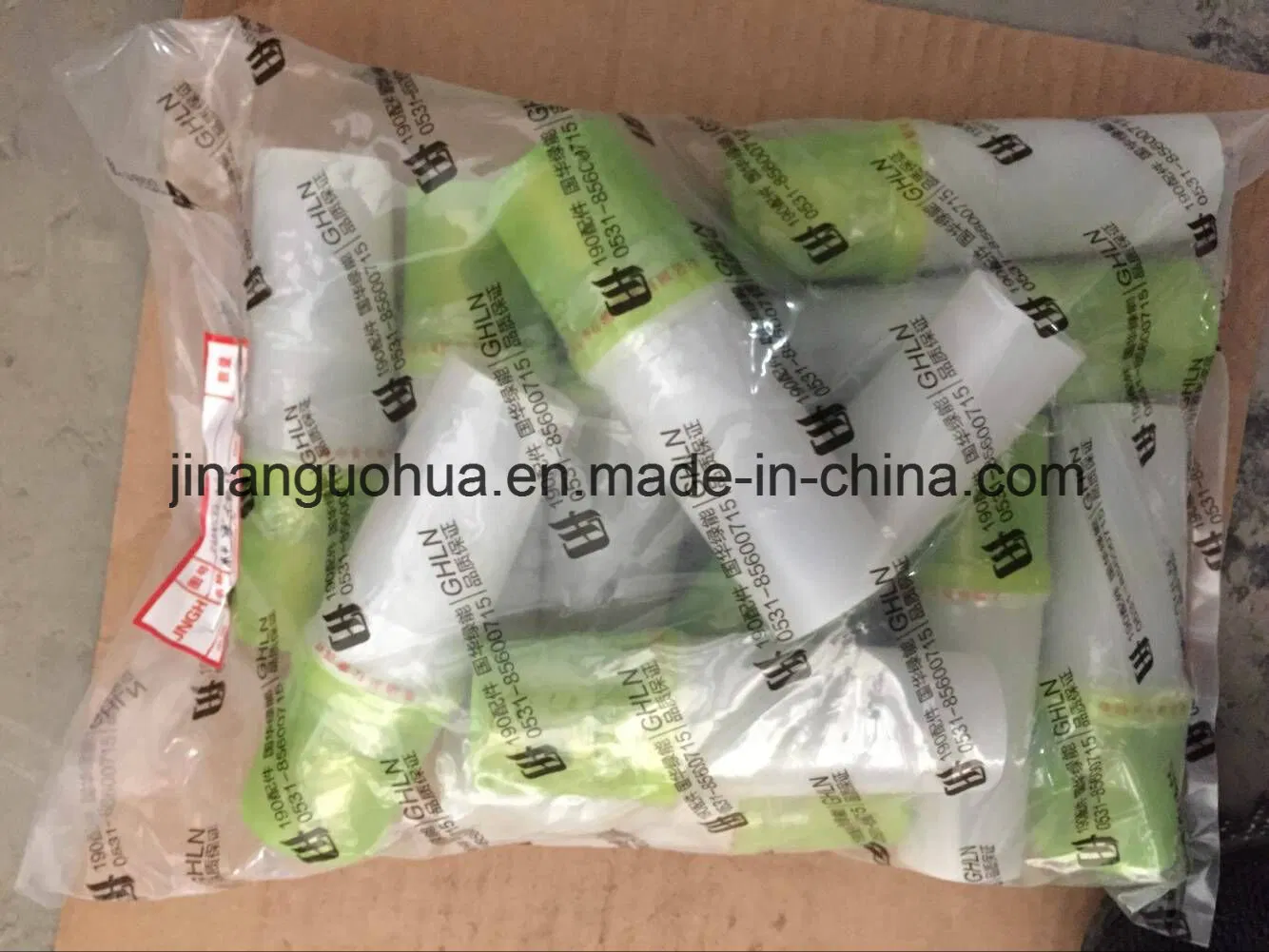

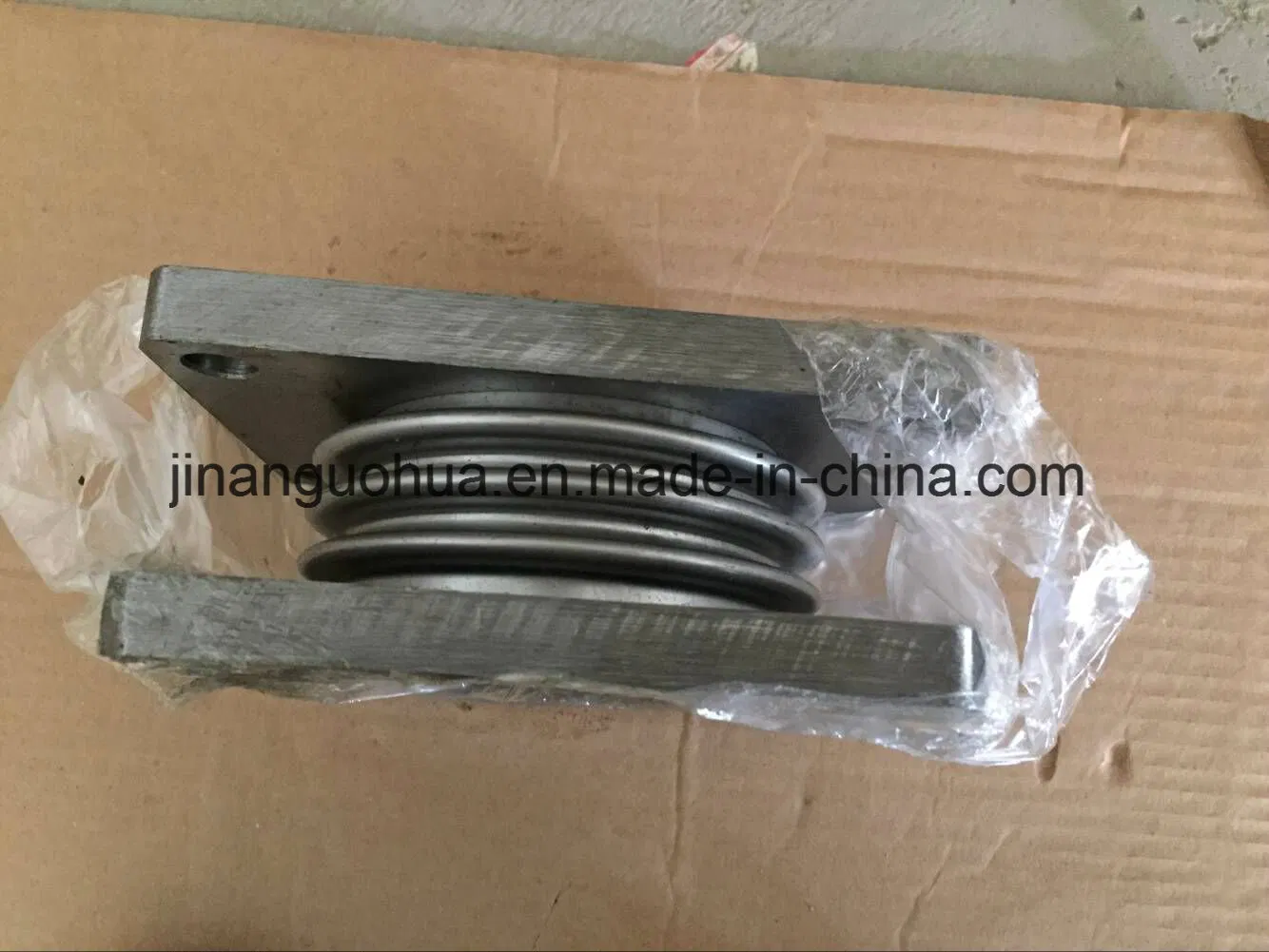

CHIDONG/SHENGDONG 6L190,8V190,12V190,16V190 DIESEL/GAS ENGINE PARTS

Tel:+8618766952912

Desk:86-0531-85600715

Fax:0531-85600715

Add:Jingshi Road 14761,Lixia District,Jinan,Shandonng,China

Web:jinanguohua.en.made-in-china.com

Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190)
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.
Later stage:Overhaul and maintenance service offered.
