Product Description

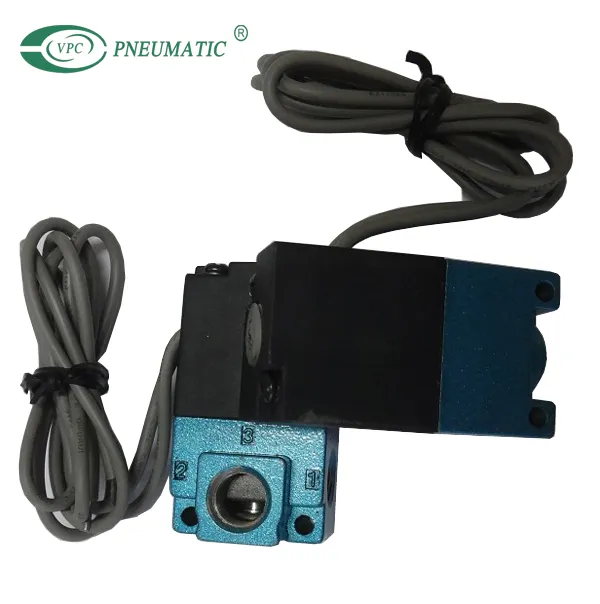

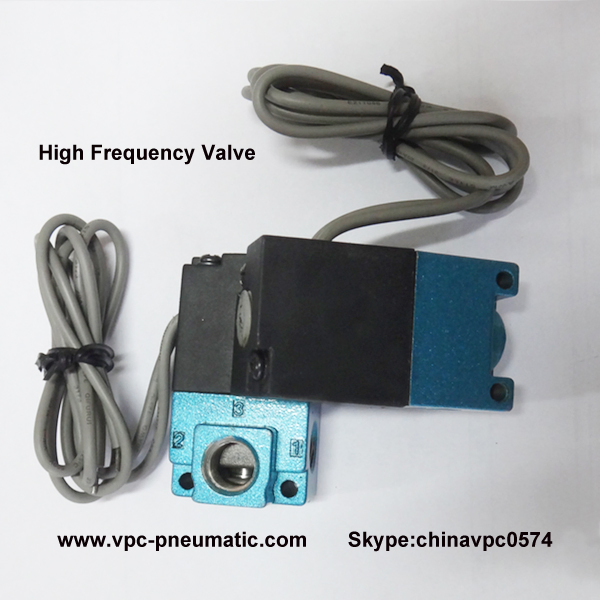

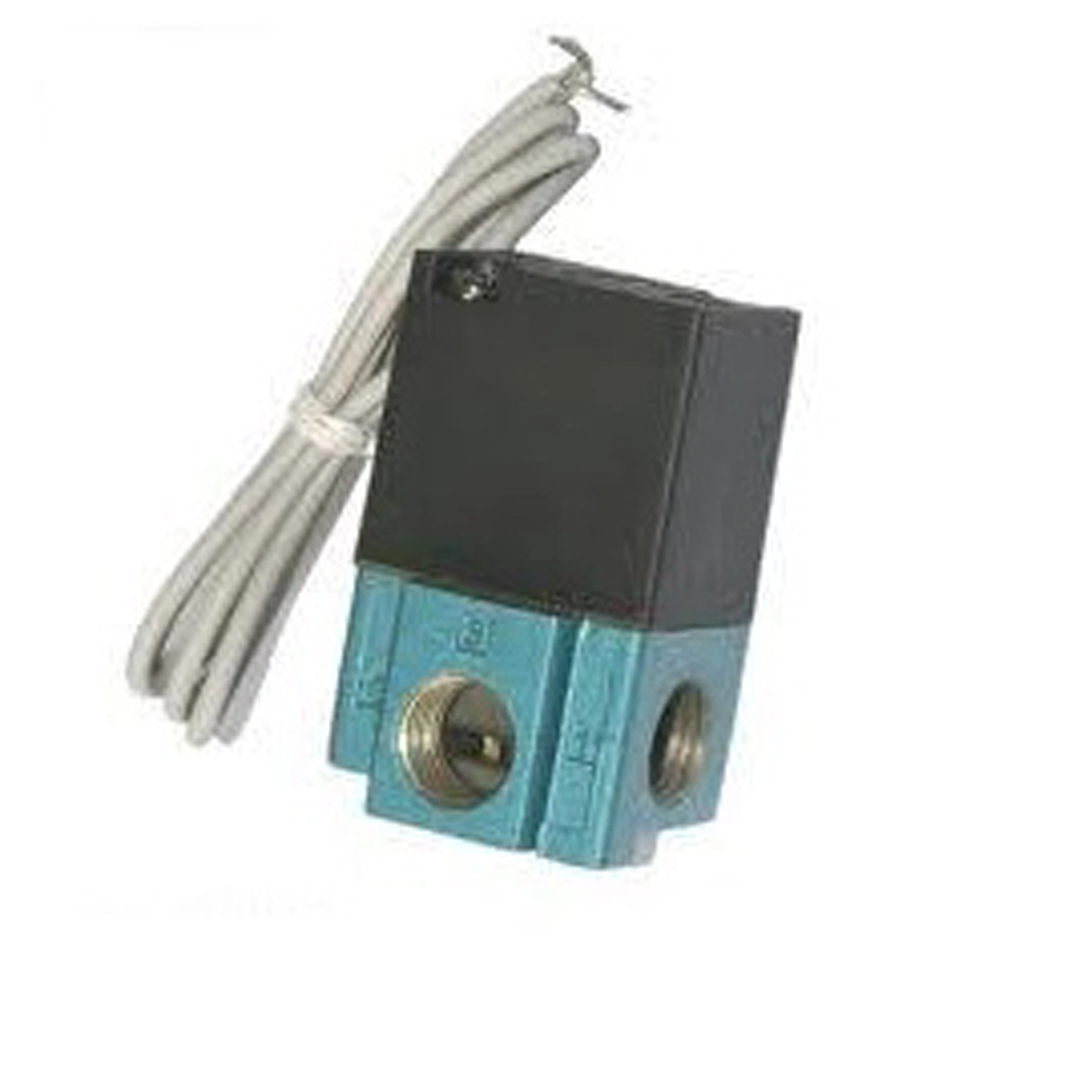

3 way Pneumatic High Frequency Solenoid Valve 1/8 Thread

China High Frequency Solenoid Valve - China Solenoid Valve, High Frequency Valve
The high frequency valve of VTM series have no influence of working pressure and the performnce of large flow with low power for adopting te glbe valve with structure of balanced pressure type. Any port ofNo. 1, 2, 3 can be added pressure, act quickly and be usdwidely ssh a airbloeing, single function cyinder driving, air current branching, pressure choice and vacuum equipments, etc. It can be geeral used in bothnormal opened and normal closed. Good replacement for MAC solenoid valve. 3 Way Pneumatic High Frequency Solenoid Valve 1/8 Thread dust proof of solenoidairvalve is available in body ported or base mounted styles and can be used individually or manifold mounted.

Model	VTM06	VTM08
Working Medium	Compressed 40 Micron Filtered Air
Position And Way Numbers	2 Position 3 Way
Protection Structure	Dust-Proof
Port Size	G1/8"	G1/4"
Motion Way	Direct Acting
Working Pressure	0~0.8MPa
Max.Working Frequency	100 cycle/Sec
Operating Temperature	-5~50ºC
Voltage Tolerance	±10%
Insulation&Protection Class	B Class

Type of actuation	direct operated type 2 position single solenoid
Fluid	air
Operating pressure range	0~0.9Mpa
Ambient and fluid temperature	-10~50ºC(No freezing)
Response time	20 ms or less (at the pressure of 0.5Mpa)
Max. operating frequency	10Hz
Lubrication	Not required
Manual override	Non-locking push type
Mounting orientation	Unrestricted
Shock/Vibration resistandce	150/50 m/s
Encloseure	dust proof

Shipping:
All package will be inspected before shipping.
Protective packing material will be added in your package if we believe item can be damaged easily in transit.
Please allow 1-2 working days handling time for payment processing and shipping.
Tracking numbers will be available in 24 hours except weekends and holidays.
Buyers will receive email or phone call in 24 hours if there are any problems with their order.
For faster service, please update your correct shipping address before sending payment.
Please contact us if you have any questions on shipping.

3 Way Pneumatic High Frequency Solenoid Valve
