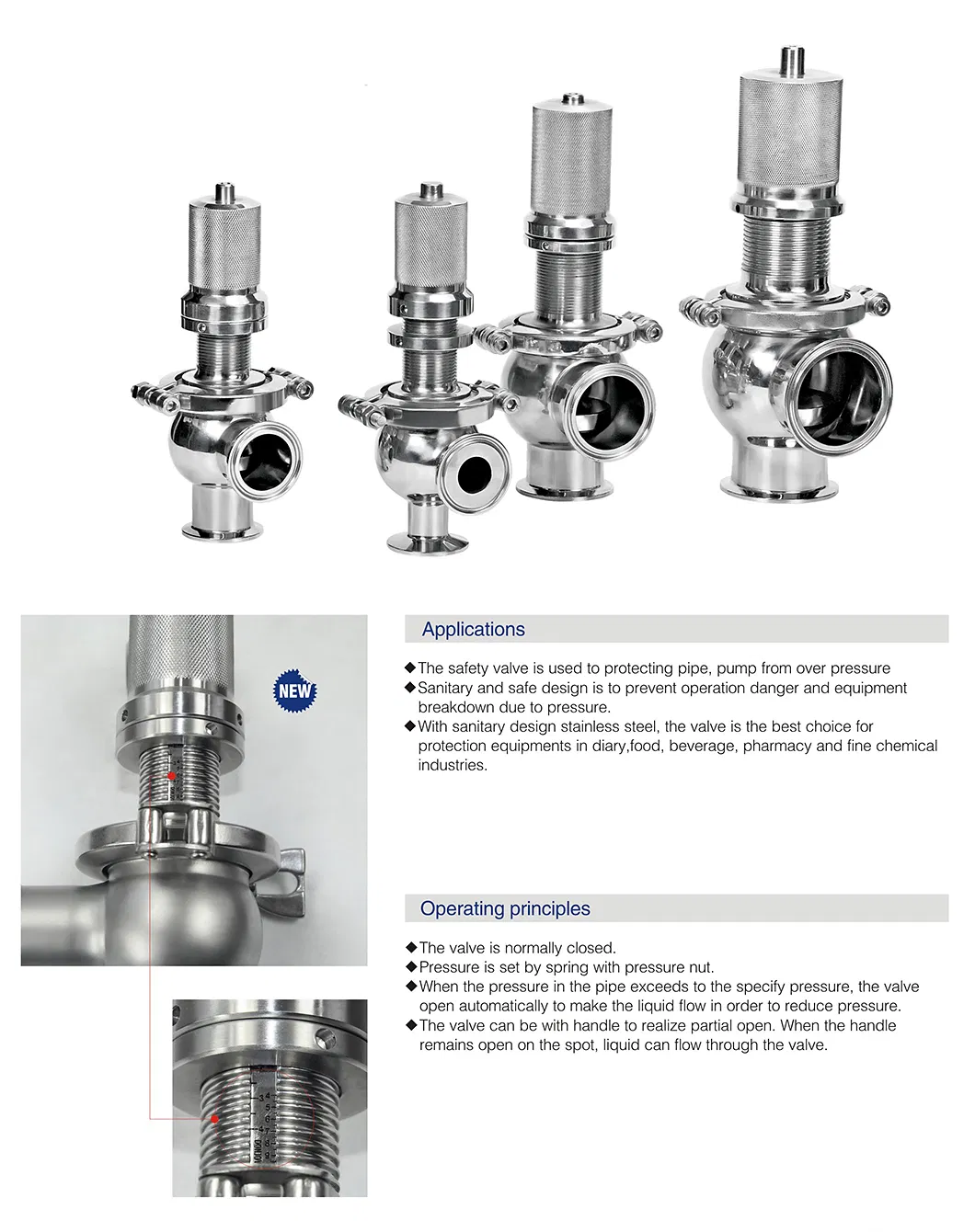

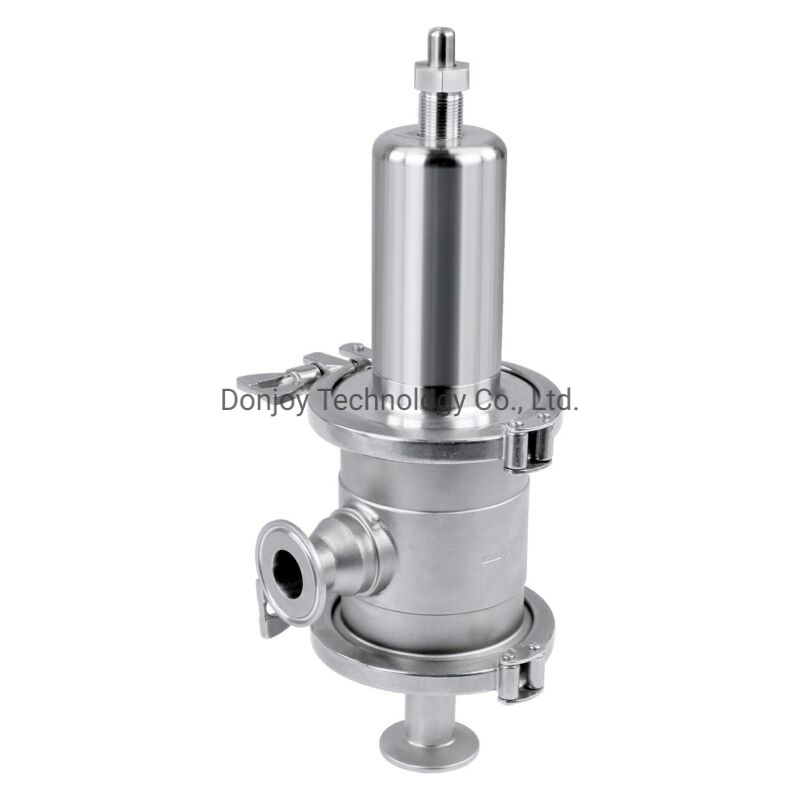

3A Donjoy Hygienic Stainless Steel Pressure Reducing Valve

Product Description

Product Name:	3A Certified Sanitary Stainless Steel Weld Butt Pressure Safety Relief Valve
Valve Body Material:	SS304 or SS316L
Seal Material:	EPDM, PTFE, VITON
Max. Working Temperature:	120 degree C

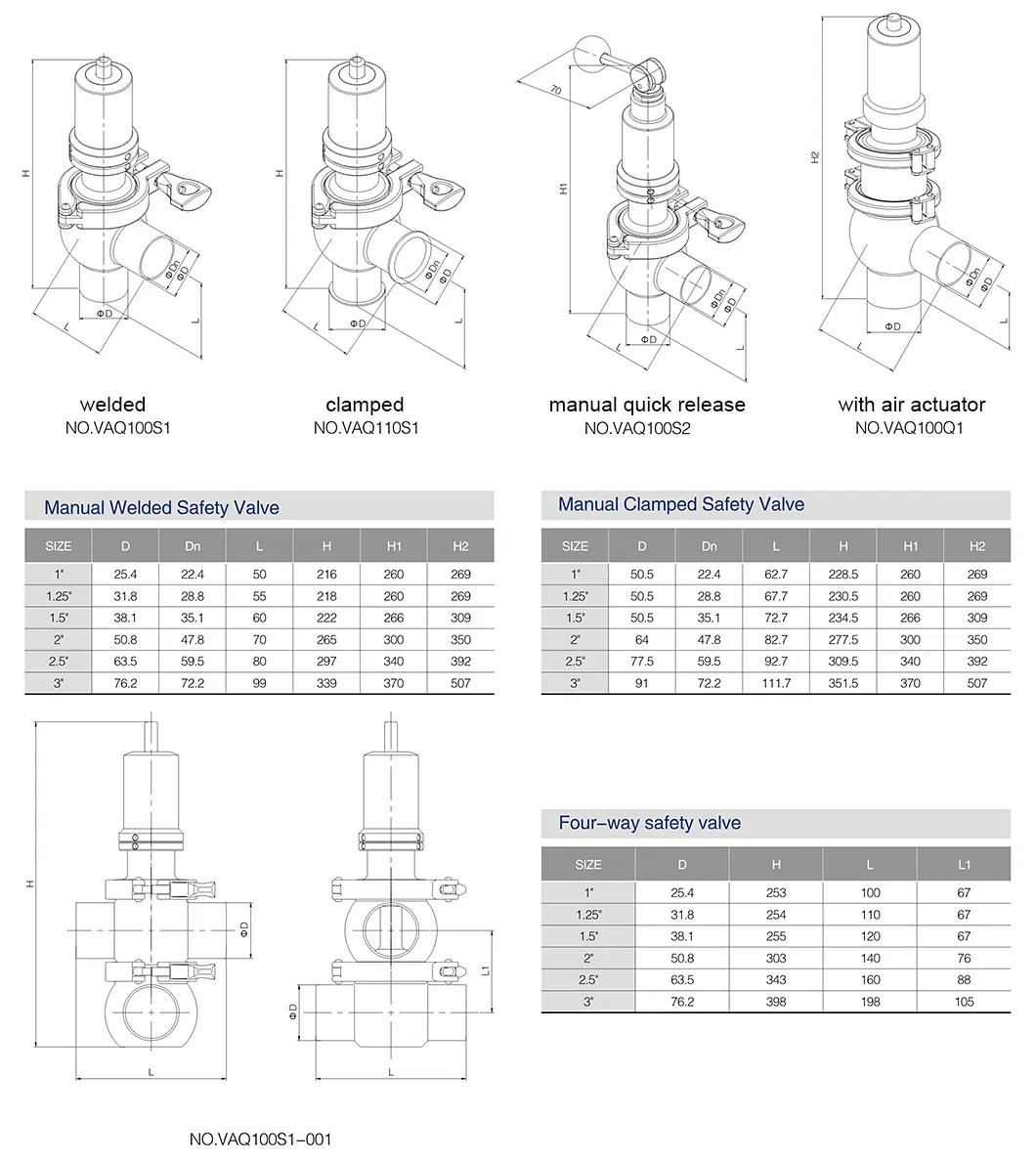

Available size:	DN25-DN100 or 1" - 4"
Available connection:	Clamped, female or welded
Available standard:	DIN, INCH, IDF, 3A, SMS
Operate:	Pneumatic ,Maual
Certificate:	TS, 3-A,FDA
Max. working pressure	145psi (10bar)
Set pressure available	Spring adjustable(0-3bar / 0-6 bar / 6-10 bar )
Condition	Normally closed

DESIGN FEATURES

-With handle to realize partial open during the clean-in-place (CIP)
-Valve opens when the set pressure is reached to prevent excess pressure in piping or systems
-The specific pressure is set by adjusting the spring pressure nut, manually adjustable from 0 to 145 psi
-The valve can be CIP manual override or pneumatic override to realize partial open. CIP liquid can flow through -the valve when the handle remains open on the spot.
-Easy seat gasket replacement, low spare part cost

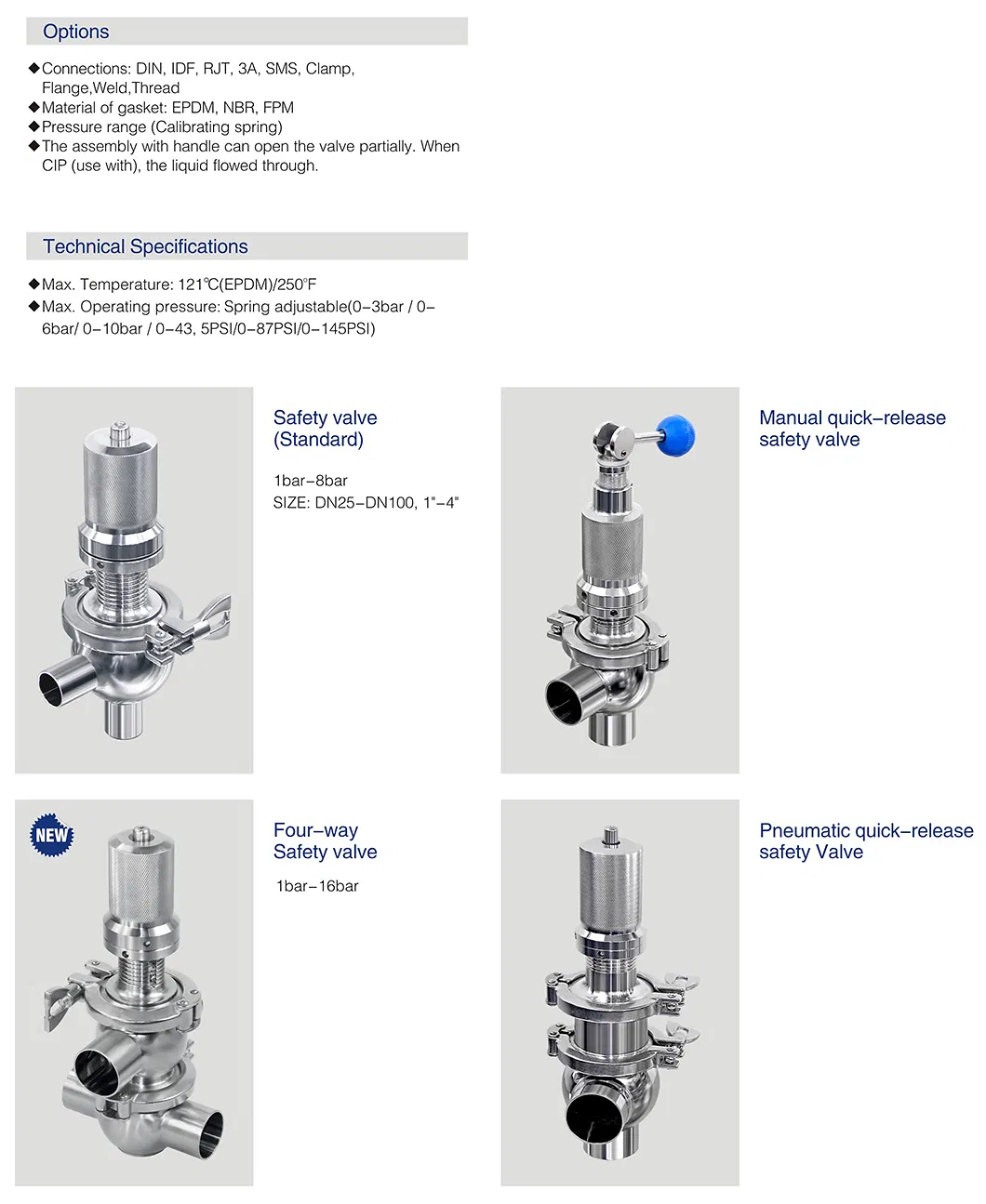

-Manual type or pneumatic type for choose from
-A wide selection of different end connections.
-100% hydraulic tested / 100% inspected

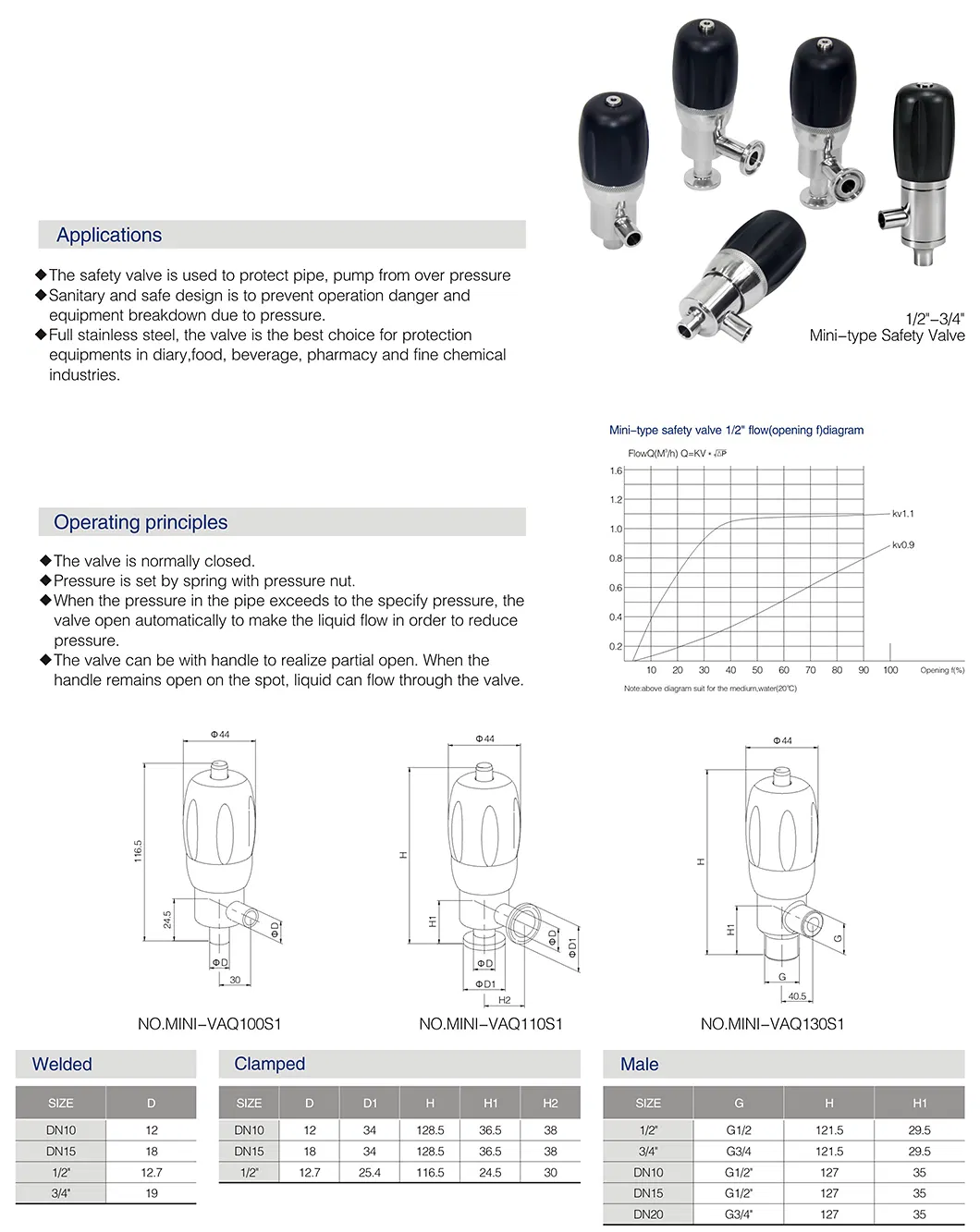

Application:

1. Safety valve is used to protect pipe, pump from over pressure.

2. Its design is sanitary and safe, protected from damage and equipment breakdown from over pressure.

3. With sanitary design and fully made in stainless steel, the valve is the best choice for pretecting equipments in the industries of diary, food, beverage, pharmacy and fine chemical.

Operation:

1. By using spring to adjust pressure.

2. When the pressure in pipeline exceeds to specified pressure, the valve will be opened automatically, to make the liquid flow in, and to reduce the pressure in pipe.
