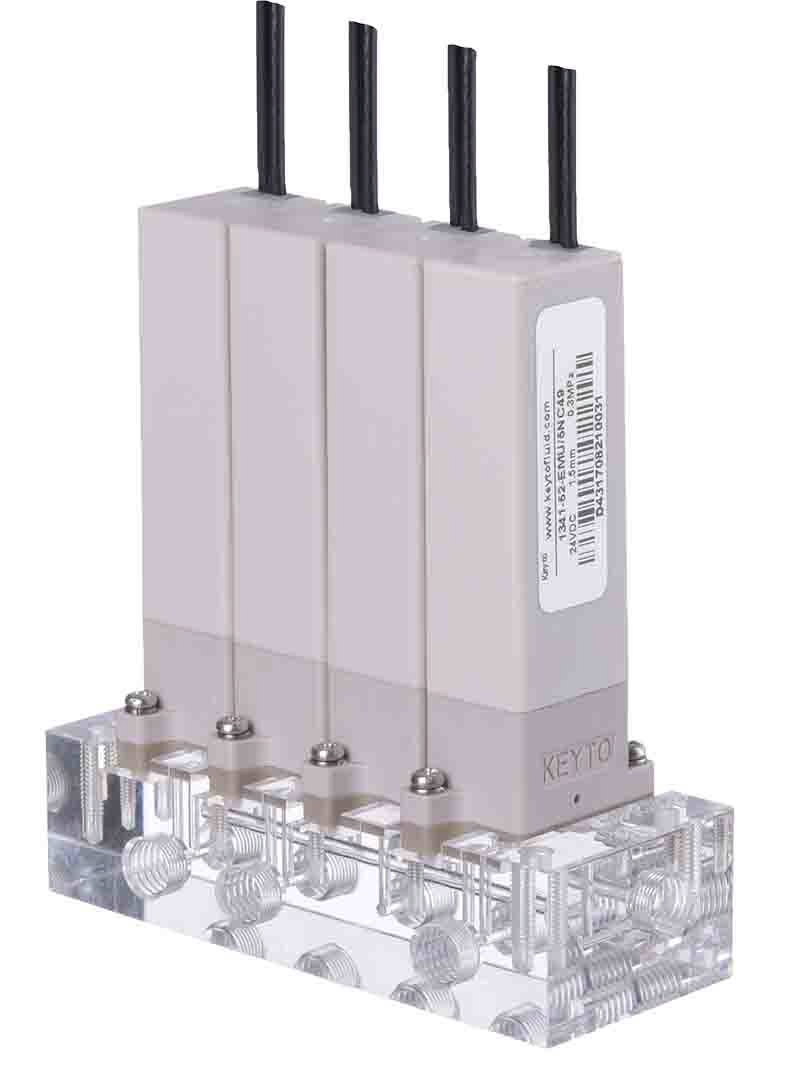

Rocker Diaphragm Isolate Solenoid 2-Way 3-Way 1013 Series Valve Manifold

Product Description

Product Features:
Configuration with one common inlet and multiple outlets;
Easy to install, small size and save space, each valve can be control seperately, strong acid and base resistance.
Ideal for application in limited space.

Advantage of Integrated solution:
Customized as customer requirement;
Less assembly time, lower assembly defects;
Optimize details, improve customers' competitiveness;
System package, maintenance free.

Specification:

Model	1341-52 Solenoid Valve Module
Body material	PMMA, POM, PTFE, PVDF
Seal material	EPDM, FFKM
Structure	Rocker diaphragm
Number of port	2 common port + 1 optional common port + 4 (optional branch)
Orifice diameter	1.5 mm
Flow	4.0 g/s (water, 25ºC, 50KPa)
Power consumption	2.8W (single valve)
Operating pressure	-70 KPa ~ 0.25 MPa
