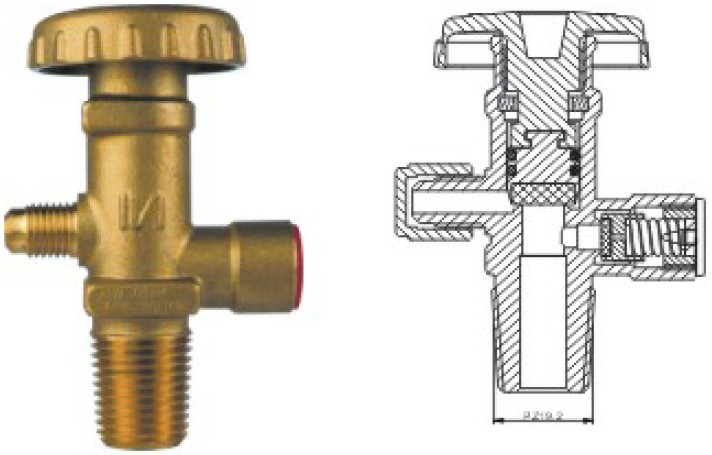

Refrigerants Cylinder Valves (QF- 13E )
Mingshi "QF" Series Refrigerants Cylinder Valves are suitable for switch control the flow of refrigerants including R410, R406, R134A, R507, R22, R12 and their mixed medium, whose nominal working pressure is < 3.2Mpa, and the environment temperature is -20° C to +65° C.P......
Send Inquiry
Product Description
Mingshi "QF" Series Refrigerants Cylinder Valves are suitable for switch control the flow of refrigerants including R410, R406, R134A, R507, R22, R12 and their mixed medium, whose nominal working pressure is < 3.2Mpa, and the environment temperature is -20° C to +65° C.
| Product No. | QF-13E |
| PN | 3.2Mpa |
| DN | ≥ 5mm |
| Export Connecting Thread | 7/16-20UNF-2A |
| Joint Thread to Cylinder | PE19.2 |
| Temp/pressure of Safety Device | 3.9-4.5Mpa |
| Suitable Medium | R410, R406, R134a, R507, R22, R12 |
| Surface Processing | Shot blasting or pickling |
| Body Material | HPb 59-1 |
| Design Weight | 230 g/pc |
