1622316280 Intake Valve Unloader Valve Air Compressor Parts

product information1622316280 intake vavle Unloader Valve air compressor parts Compressor Valves Offers a full range of application-engineered reciprocating compressor valves that combine the highest possible flow efficiency with maximum service life. with offering a complete line of premium quality......

Send Inquiry

Product Description

product information

1622316280 intake vavle Unloader Valve air compressor parts
Compressor Valves

Offers a full range of application-engineered reciprocating compressor valves that combine the highest possible flow efficiency with maximum service life. with offering a complete line of premium quality valves to satisfy most application requirements.

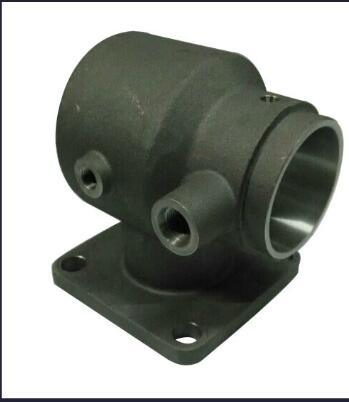

brief introduction of intak valve

Technical data

Model	JJ-40L	JJ-50L	JJ-65L	JJ-85L	JJ-120L	JJ-160L
Nominal Diameter (mm)	40	50	65	85	120	160
Adjust	when unloading, pressure in can be adjust.
Control system	1.Check valve model 2.Switch model 3.Adjusting model
Flange (Φ:mm)	4-Φ9-TKΦ104~Φ116	4-Φ17-TKΦ135~Φ150	4-Φ17-TKΦ143~Φ170	4-Φ17-TKΦ160~Φ180	8-Φ17-TKΦ210~Φ225	12-Φ18-TKΦ280~Φ295
Max Flow (m³/min)	2.5	5	8	14	25	46
Max pressure	15(bar)
Solenoid Valve	AC220V 50/60HZ (can be custom-made as per your need)
Air inlet Diameter (mm)	Φ48	Φ62	Φ78	Φ100	Φ150	Φ1

Business scope
Mechanical Seal :	Temperature Sensor	Pressure Sensor
Maintenance Kits	Solenoid Valve	Thermostatic Valve
Air intake	Wheel Gear	Pressure Maintaining Valve
Air Filter	Oil Separator	Oil Filter
Oil Level Indicator	Circuit Board Master Control	Air intake valve
Used air compressor	Air-end	Oil level indicator

maintenance Service Kit
high quality compressor parts
oil stop valve kit
preventive maintenance kit
Including valve,shaft seal, coupling,drain,water separstor,lubricant

list of service kit

NO	Model	Description	P/N
1	GA11-22	Unloading valve kit	2901000201
2		Min pressure valve kit	2901000600
3		Drain valve kit	2901071200
4	GA30-37-45	Drain valve kit	2901021900
5		Min pressure valve kit	2901021800
6		Check valve kit	2901021200
7		Oil stop valve kit	2901021700
8		Unloading valve kit	2901021100
9		Thermostat valve kit	1619733300
10	GA55-75-90C	Oil check valve kit	2901007200
11		Check valve kit	2901007700
12		Min pressure valve kit	2901021800
13		Unloading valve kit	2901044800
14		Thermostat valve kit	2901007400
15		Drain valve kit	2901084500
16		Drain valve kit	2901007300
17		Oil stop valve kit	2901108400
18		Unloading valve kit	2901029900
19	GA90-250	Test valve kit	2906009300
20		Oil check valve kit	2906009400
21		Min pressure valve kit	2906009600
22		Regulating valve kit	2906009100
23		Thermostat valve kit	1619756000
24		Unloading valve kit	2906056300
25		Connector kit	2906057100
26		Drain valve kit	2901074900
27	GA22+	Unloading valve kit	2902016100
28		Unloading valve kit	2902016100
29		Check valve kit	2901050301
		Oil stop valve kit	2901021701
30		Min pressure valve kit	2901145300
31		Thermostat valve kit	2901161600
32	GA37+	Unloading valve kit	2901162200
33		Unloading valve kit	2901162200
34		Check valve kit	2901050301
35		Oil stop valve kit	2901108401
36		Min pressure valve kit	2901145300
37		Thermostat valve kit	2901161600
38	GA75+	Unloading valve kit	2901146300
39		Unloading valve kit	2901146300
40		Check valve kit	2901050301
41		Oil stop valve kit	2901108401
42		Min pressure valve kit	2901145300
43		Thermostat valve kit	1622375980

FAQ

Q1: How can I get the quotation?
A: you can advise us the part number for checking, and we will quote to you soon by email

Q2:What kind of ways for transportation ?
A:In general by air, sea or Express.(like DHL,Fedex,TNT,etc.)

Q3:How do I know the quality of productions?
A:We have a strict series of quality control, and we have perfect after service system, which can help you to solve the problem soon

Q4: If i want to change model,size,package,etc. How can I do?
A:You can contact us by skype or mail, and we will revise according to your requirement

Q5:What is the terms of payment ?
A: T/T, Western Union, paypal(need 5% paypal fee)

OUR SERVICE

24 hours a days, 7 days a week

1-stop purchasing

Competitive price, good quality and efficient with perfect after-sale service

We accept your specific order and do everything we can to meet your requirement.

Packing and shipping Packing

Additional information

No	Model	Gas displacement m3/min				Power(kw)
No	Model	7.5bar	8.5/8bar	10bar	13bar	Power(kw)
1	GA5P FM	0.9	0.8	0.7	0.5	5
2	GA7P FM	1.2	1.1	1	0.8	7
3	GA11P FM	1.7	1.6	1.5	1.2	11
4	GXe15P FM	2.58	2.36	2.18	1.81	15
5	GXe18P FM	3.15	3.01	2.61	2.23	18
6	GXe22P FM	3.61	3.5	3.1	2.7	22
7	GAe11P	2	1.9	1.6	1.2	11
8	GAe15P	2.7	2.5	2.3	1.9	15
9	GAe18P	3.3	3.1	2.7	2.3	18
10	GAe22P	3.8	3.7	3.3	2.8	22
11	GAe26P	4.3	4	3.7	3.1	26
12	GAe30P	4.8	4.5	4.3	3.7	30
13	GA11+P	2.1	2	1.8	1.5	11
14	GA15+P	2.8	2.6	2.4	2	15
15	GA18+P	3.5	3.3	2.9	2.5	18
16	GA22+P	4.1	3.9	3.5	3	22
17	GA26+P	4.8	4.6	4.2	3.6	26
18	GA30P	5.4	5.2	4.8	4.1	30
19	GA30+AP	6.1	6.0(8bar)	4.8	3.9	30
20	GA37AP	6.4	6.3(8bar)	5.6	4.5	37
21	GA37+AP	7.1	6.9(8bar)	5.9	4.9	37
22	GA45AP	7.7	7.3(8bar)	6.5	5.5	45
23	GA45+AP	8.6	8.0(8bar)	7.3	6.1	45
24	GA55AP	10	9.3(8bar)	8.6	7.4	55
25	GA55+(A/W)P	10.6	10.1(8bar)	8.7	~~~	55
26	GA75AP	13.1	12.3(8bar)	11	9.7	75
27	GA75+(A/W)P	14.7	13.8(8bar)	12.2	10.2	75
28	GA90(A/W)P	16.2	15.6(8bar)	14.1	12	90
Table 2
No	Model	Gas displacement m3/min				Power(kw)
No	Model	7.5bar	8.5bar	10bar	14bar	Power(kw)
1	GA90-(W)	16.8	15.8	14.4	11.1	90
2	GA110(W)	20	18.8	17	13.9	110
3	GA132(W)	24.1	22.9	21	16.8	132
4	GA160(W)	30.4	28.9	26.8	21.7	160
No	Model	Gas displacement m3/min				Power(kw)
No	Model	7.5bar	8.5bar	10bar	13bar	Power(kw)
5	GA200(W)	36.1	34	30.7	26.1	200
6	GA250(W)	43.7	41.7	37.8	31.7	250
7	GA315(W)	55	52	48		315
8	GA355(W)	60	57	53	46	355

Lubricant oil
compressor oil
screw air compressor lubricant oil
lubricant oil 1615594900
lubricant oil
compressor oil
screw air compressor lubricant oil
lubricant oil 1615594900

Excellent oxidation resistance
Keeps the compressor clean on the inside and prevents contaminants from clogging the filter elements.Ensures maximum output in between service in tervals.

Excellent water separation
Protects against corrosin and the formation of hamful deposits. Prevents emulsified water in oil that reduces the flow to lubrication point and encourage damages of the bearings.

Excellent seal and paint compatibility
Reduces risk of leakage and no need for re-sealing.

Balanced composition on antifoam
Keeps the oil clean and prevents blocking of the oil separator, guaranteeing a low oil carry over.

Top protection against wear
Protects seals, bearings and rotors of the compressor against adverse effects of moisture contamination and acidic attacks.Extends lifetime of moving parts.5,why us?
1. when the goods will be delivered?
the delivery will be arranged during 1-3 working days after the payment received.

2. what's the payment method?
T/T (USD account), western union, paypel

3. you are the trade company or factory?
of course we are factory, we product almost all kinds of air compressor parts including oil free air compressor parts, we still can rebuild airend.

4.what's the payment term?
100% TT in advance, if the amount out of 30000 USD, so it can be 30% in advance and 70% before delivery

Package & Delivery

Package each product as international packaging standard.
Your design package request also acceptable
5,why us?
1. when the goods will be delivered?
the delivery will be arranged during 1-3 working days after the payment received.

2. what's the payment method?
T/T (USD account), western union, paypel

3. you are the trade company or factory?
of course we are factory, we product almost all kinds of air compressor parts including oil free air compressor parts, we still can rebuild airend.

4.what's the payment term?
100% TT in advance, if the amount out of 30000 USD, so it can be 30% in advance and 70% before delivery

Package & Delivery

Package each product as international packaging standard.
Your design package request also acceptable
