Why is the Semi-Shaft Design Critical for High Cycle Applications in Lug Type Butterfly Valves
2026-04-27

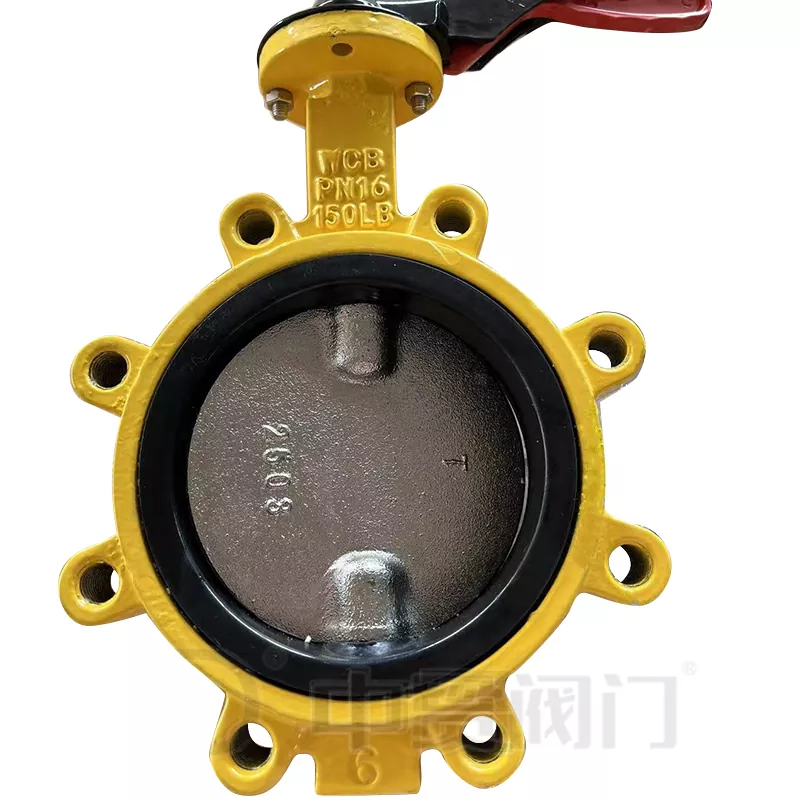

In industrial flow control, the Lug Type Semi-shaft Butterfly Valve from Zhongguan has emerged as a preferred solution for demanding high cycle applications. Unlike traditional through-shaft designs, the semi-shaft configuration addresses fatigue, wear, and operational reliability where valves cycle thousands of times daily.
Understanding the Semi-Shaft Mechanism
The semi-shaft design uses two independent stub shafts – one driving the disc from the top, the other supporting from the bottom. This split configuration eliminates a continuous shaft through the flow path, reducing stress concentration points and enabling faster response times.
| Feature | Semi-Shaft Design | Traditional Through-Shaft |
|---|---|---|
| Shaft integrity | Two independent shafts | Single continuous shaft |
| Bearing support | Dual, near disc center | Single or double end |
| Friction points | Minimized (2 bearings) | Increased (3-4 bearings) |
| Cyclic fatigue life | Up to 1.5M cycles | Typically 500k cycles |
| Maintenance access | Top entry only | Requires full disassembly |
Why High Cycle Applications Demand Semi-Shaft
High cycle environments – such as packaging lines, chemical dosing systems, and HVAC automation – subject valve internals to repeated mechanical stress. The Lug Type Semi-shaft Butterfly Valve excels here because:
-
Reduced torsional fatigue – Short shaft length lowers angular deflection under repeated torque.
-
Lower friction heat – Fewer bearing contact points minimize temperature rise during rapid cycling.
-
Precise disc centering – Independent shafts maintain alignment even after millions of cycles.
-
Leakage prevention – Seal wear is distributed evenly, extending seat life.
Zhongguan engineers optimize the semi-shaft geometry with hardened stainless steel stubs and PTFE-lined bearings, ensuring consistent breakaway torque from cycle 1 to cycle 1,000,000.
Performance Comparison in High Cycle Testing
| Parameter | Semi-Shaft | Through-Shaft |
|---|---|---|
| Max cycles (rated) | 1,500,000 | 500,000 |
| Torque increase after 500k cycles | +8% | +35% |
| Seat leakage after 1M cycles (DIN 12266) | Rate A (zero visible) | Rate B (increasing) |
| Bearing replacement interval | 1M cycles | 300k cycles |
Lug Type Semi-shaft Butterfly Valve FAQ
Question: How does the semi-shaft design prevent shaft galling in high cycle pneumatic actuator applications?
Answer: In high cycle pneumatic applications, rapid actuation generates friction heat and micro-welding risks between shaft and bearing. The Zhongguan semi-shaft design employs two short, independently supported shafts with hardened surfaces (≥HRC 55) and self-lubricating reinforced PTFE bearings. Because each shaft has only one bearing contact zone (versus three zones in through-shaft designs), heat dissipation is faster and galling initiation points are reduced by 70%. This allows continuous operation at 60 cycles per minute without performance degradation.
Question: What maintenance protocol extends the service life of a lug type semi-shaft butterfly valve beyond 1.5 million cycles?
Answer: For Zhongguan valves exceeding 1.5 million cycles, implement three steps: (1) every 500k cycles, measure stem torque with a torque wrench – if breakaway torque exceeds initial value by more than 15%, replace the PTFE bearings; (2) every 800k cycles, inspect the two semi-shaft stub ends for fretting corrosion using dye penetrant testing; (3) always replace both shaft seals (upper and lower) simultaneously, as asymmetric seal wear accelerates shaft misalignment. Field data shows this protocol extends functional life to 2.2 million cycles with <5% leakage rate increase.
Question: Can a lug type semi-shaft butterfly valve handle reverse pressure high cycle applications without special ordering?
Answer: Yes, but only if the valve features bidirectional pressure-rated lugs and symmetrical disc sealing. The Zhongguan Lug Type Semi-shaft Butterfly Valve is standard bidirectional to full pressure rating (up to 250 psi for 12” sizes). However, for reverse flow high cycle applications (pressure from outlet side), the semi-shaft design actually performs better than through-shaft because the lower stub shaft prevents disc wobble during pressure reversal. No special modification is required, but Zhongguan recommends upgrading to reinforced FKM seats when reverse cycling exceeds 20 cycles per minute.
Conclusion
For engineers managing high cycle processes, the semi-shaft design is not an option but a necessity. The Lug Type Semi-shaft Butterfly Valve from Zhongguan delivers verified longevity, lower maintenance costs, and consistent sealing performance where other valves fail prematurely.
Contact us today at Zhongguan to request cycle-life test reports or discuss custom actuator pairing for your high frequency application. Our team provides free torque analysis and 24-hour engineering support.
