Why Is a Worm Gear Drive Preferred for Certain Butterfly Valve Installations
2026-02-09

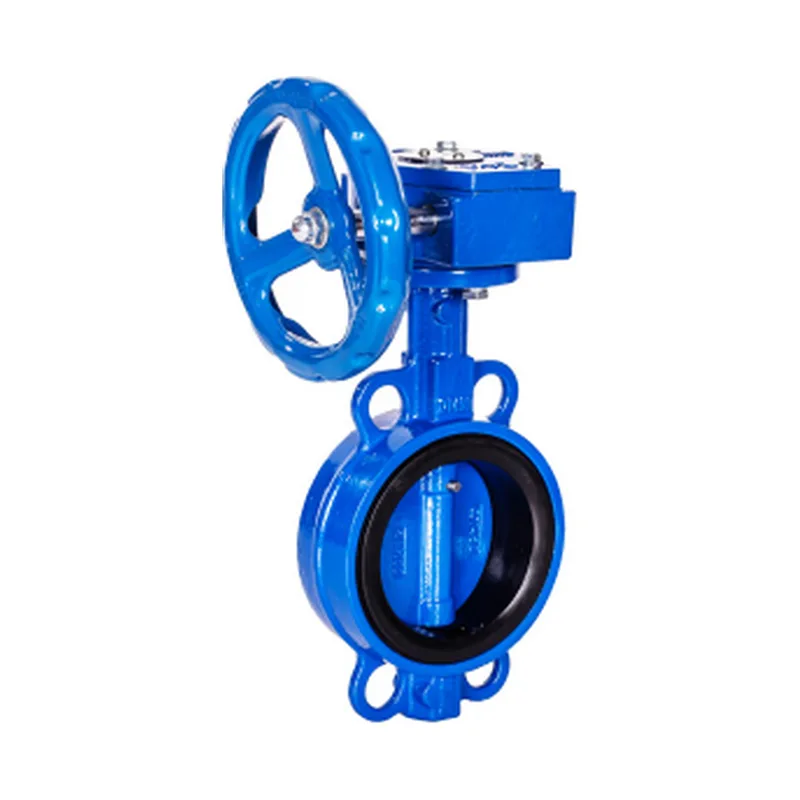

In the world of industrial flow control, selecting the right valve and operator is critical for system reliability and efficiency. Among the various options, the Worm Gear Butterfly Valve stands out for specific, demanding applications. Tianhong, a leader in precision valve manufacturing, consistently notes that clients choose worm gear drives for scenarios where control, safety, and durability are paramount. But what drives this preference? This blog explores the technical rationale behind selecting a worm gear actuator for your butterfly valve.
The primary advantages of a worm gear drive stem from its inherent mechanical design. Unlike quick-acting levers or pneumatic actuators, a worm gear provides a high gear reduction ratio in a compact housing. This offers distinct benefits:
-
Precise Flow Modulation: The gear mechanism allows for fine, incremental adjustments of the disc position, enabling excellent throttling control.
-
Self-Locking Capability: The design prevents back-driving, meaning the valve will hold its set position even under high flow pressure without drifting.
-
Reliability and Simplicity: With fewer moving parts than complex automated systems, it offers robust performance with minimal maintenance, ideal for manual operation in remote or harsh environments.
-
Cost-Effectiveness: It provides a reliable manual control solution without the need for external power sources like compressed air or electricity.
The table below summarizes ideal application scenarios for a Worm Gear Butterfly Valve:
| Application Scenario | Why a Worm Gear Drive is Preferred |
|---|---|
| Throttling/Regulating Flow | Allows precise intermediate positioning for accurate flow rate control. |
| High-Pressure or Large Line Size Valves | The mechanical advantage makes operating large valves easier and safer. |
| Fail-Safe or Non-Powered Locations | Provides dependable manual control where utilities are unavailable or as a backup. |
| Infrequently Operated Valves | Robust design resists seizing and is reliable over long periods of inactivity. |
Worm Gear Butterfly Valve FAQ
Q: Can a worm gear butterfly valve be used for both isolation and throttling?
A: Absolutely. While excellent for on/off service, the key strength of a Tianhong worm gear butterfly valve is its suitability for throttling. The precise gear drive allows operators to set and maintain any disc angle between fully open and closed for accurate flow regulation.
Q: How does the self-locking feature work and why is it important?
A: The self-locking feature is due to the angle of the worm gear. When the valve is set, the friction in the gear train prevents the torque from the flow from reversing the operation and moving the disc. This is crucial for safety and stability, ensuring the valve stays in its commanded position without additional brakes or locks.
Q: What maintenance does a worm gear operator require?
A: Maintenance is straightforward but essential for longevity. It primarily involves periodic inspection and re-lubrication of the gearbox with a high-quality, temperature-stable grease. Tianhong valves are designed for easy access to lubrication ports, and our manuals provide specific intervals based on service conditions.
Choosing the right valve operator directly impacts your system's performance and total cost of ownership. For applications demanding precise control, holding stability, and robust manual operation, the worm gear butterfly valve is an outstanding choice. Tianhong engineers these valves with precision gearing and durable materials to ensure they perform reliably in your most critical processes.
Ready to specify the ideal valve for your application? Contact us today to discuss your project requirements with our engineering team. Let Tianhong provide you with a flow control solution built for performance and endurance.
