Why Choose an AL Bronze Wafer Butterfly Valve for Your Industrial Applications?
2026-06-15
When it comes to controlling the flow of liquids and gases in industrial pipelines, selecting the right valve is crucial for efficiency, safety, and durability. Among the various options available, the AL Bronze Wafer Butterfly Valve has emerged as a popular choice across industries such as water treatment, chemical processing, HVAC systems, and marine applications. Its compact design, corrosion resistance, and ease of installation make it an ideal solution for both new projects and retrofitting existing systems.
At Waits Valve Co., Ltd., we specialize in manufacturing high-quality AL Bronze Wafer Butterfly Valves, ensuring that every unit meets strict industry standards for performance and reliability. But what sets this valve apart, and why should it be considered over other types of butterfly or ball valves?

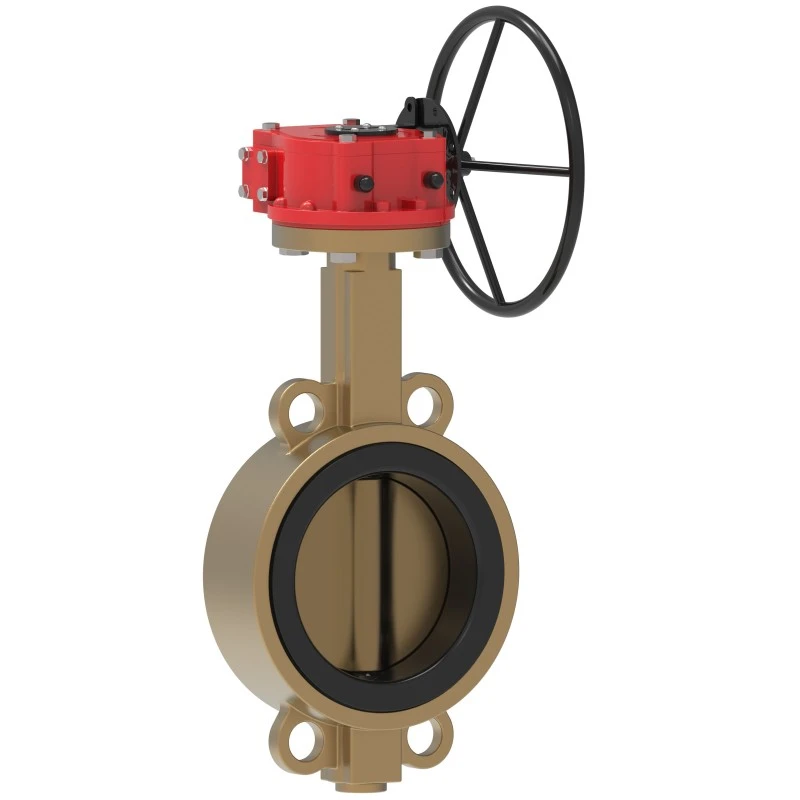

What Is an AL Bronze Wafer Butterfly Valve?
An AL Bronze Wafer Butterfly Valve is a type of quarter-turn valve that uses a rotating disc to regulate flow within a pipeline. The "wafer" design means the valve is sandwiched between two pipe flanges, offering a compact footprint that minimizes space requirements and simplifies installation. Bronze, known for its excellent corrosion resistance and long lifespan, is the primary material, making it suitable for a wide range of fluids including water, oil, and mild chemicals.
Key features include:
- Material: AL Bronze body and disc
- Design: Wafer-style, fits between flanges
- Operation: Manual lever, gear-operated, or automated actuator
- Seal: EPDM, NBR, or PTFE for leak-tight performance
How Does an AL Bronze Wafer Butterfly Valve Work?
The operation of an AL Bronze Wafer Butterfly Valve is straightforward yet highly effective. By rotating the valve disc 90 degrees, the flow can be fully opened, throttled, or completely closed.
Operational Steps:
- Open Position: Disc aligns parallel to flow, allowing maximum fluid passage
- Partially Open: Disc rotates partially, controlling flow rate precisely
- Closed Position: Disc rotates perpendicular to flow, creating a tight seal
This simple mechanism reduces the need for complex maintenance while offering reliable performance even in challenging conditions.
AL Bronze Wafer Butterfly Valve vs. Other Butterfly Valves
Choosing the right valve often involves comparing materials and designs. Here's how the AL Bronze variant stands out:
| Feature | AL Bronze Wafer Butterfly Valve | Stainless Steel Butterfly Valve | PVC Butterfly Valve |
|---|---|---|---|
| Corrosion Resistance | Excellent in water, oil, and mild chemicals | Excellent, stronger in acidic environments | Limited, mostly for water or low-pressure applications |
| Temperature Range | -20°C to 200°C | -40°C to 250°C | 0°C to 60°C |
| Installation | Compact wafer design, easy between flanges | Flanged or lugged, heavier | Lightweight, easy but less durable |
| Durability | Long-lasting, high wear resistance | Very durable, costly | Moderate, prone to wear over time |
| Cost | Moderate | Higher | Lower |
As seen above, the AL Bronze Wafer Butterfly Valve offers a balanced combination of cost-effectiveness, durability, and versatility, making it a preferred choice for many industrial applications.
Benefits and Applications
The AL Bronze Wafer Butterfly Valve offers several benefits that make it indispensable in industrial setups:
- Corrosion Resistance: Ideal for water treatment, seawater, and mild chemicals
- Space-Saving Design: Wafer style reduces footprint in pipelines
- Ease of Maintenance: Simple disc design for fast inspection and repair
- Versatility: Compatible with manual or automated operation
- Cost-Effective: Balanced price without compromising quality
Common Applications:
- Water and wastewater treatment plants
- HVAC systems and chilled water pipelines
- Food and beverage processing
- Marine and shipbuilding industries
- Chemical and petrochemical plants
How to Ensure Optimal Performance
To maximize the lifespan and efficiency of an AL Bronze Wafer Butterfly Valve, consider the following:
- Proper Installation: Ensure flange alignment and correct torque on bolts
- Regular Maintenance: Inspect seals and discs periodically for wear
- Correct Material Selection: Choose appropriate seals (EPDM, PTFE) for fluid type
- Actuator Compatibility: Match valve with proper manual or automated actuator
By adhering to these simple practices, industrial operators can enjoy reliable performance for years.
Why Waits Valve Co., Ltd. Is Your Trusted Supplier
At Waits Valve Co., Ltd., we combine over a decade of experience with strict quality control to deliver AL Bronze Wafer Butterfly Valves that meet international standards. Each valve undergoes rigorous testing to ensure leak-tight performance, durability, and smooth operation.
Whether you are looking for individual valves for small-scale projects or bulk supply for industrial pipelines, we provide tailored solutions to meet your requirements.
FAQs About AL Bronze Wafer Butterfly Valves
Q1: What is the maximum pressure rating for AL Bronze Wafer Butterfly Valves?
A1: Typically, up to 16 bar, depending on size and design.
Q2: Can these valves be used for seawater applications?
A2: Yes, bronze material provides excellent corrosion resistance in seawater.
Q3: Are automated actuators compatible with wafer butterfly valves?
A3: Yes, both electric and pneumatic actuators can be mounted.
Q4: How often should maintenance be performed?
A4: Generally, inspection every 6–12 months is recommended.
In conclusion, the AL Bronze Wafer Butterfly Valve is a versatile, durable, and cost-effective solution for controlling flow in industrial pipelines. Its combination of corrosion resistance, space-saving design, and reliable operation makes it a standout choice for many industries.
For high-quality AL Bronze Wafer Butterfly Valves that meet your exact requirements, contact us at Waits Valve Co., Ltd. today to discuss your project needs and request a quote.
