Which Industries Benefit Most from Double Eccentric Butterfly Valve Technology
2026-03-02

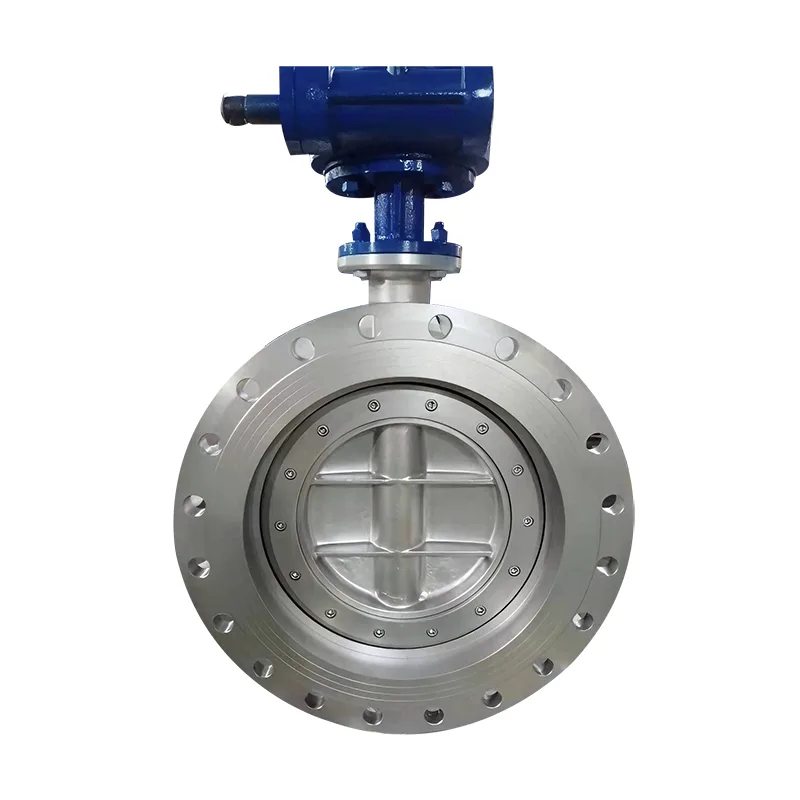

When selecting flow control solutions, engineers and procurement specialists consistently ask which industries benefit most from Double Eccentric Butterfly Valve technology. The unique design of the Double Eccentric Butterfly Valve—featuring a shaft offset from both the seat and the pipe centerline—delivers superior sealing, reduced wear, and lower torque requirements. At Gongchuang, we have observed that this engineering advantage translates into measurable operational benefits across multiple sectors.
Primary Industries Leveraging This Technology
The table below outlines the key industries where the Double Eccentric Butterfly Valve has become the preferred choice, along with specific applications and benefits.
| Industry Sector | Common Applications | Key Benefits Provided |
|---|---|---|
| Water & Wastewater | Treatment plants, pumping stations, distribution networks | Bi-directional sealing, corrosion resistance, minimal maintenance |
| HVAC & District Cooling | Chilled water systems, cooling towers, large-scale buildings | Low torque operation, space-saving design, tight shut-off |
| Power Generation | Cooling water circuits, ash handling, boiler isolation | High temperature tolerance, durability under pressure fluctuations |
| Marine & Shipbuilding | Ballast systems, seawater cooling, fuel handling | Compact size, lightweight, resistance to saline corrosion |
| Chemical Processing | Acid transfer, solvent lines, intermediate process flows | Wide material compatibility, zero leakage capability |
| Mining & Minerals | Slurry handling, tailings lines, process water | Abrasion-resistant options, robust construction |
Why These Industries Rely on the Double Offset Design
The industries listed above share common challenges: they require reliable isolation, face space constraints, or operate under demanding pressure and temperature conditions. The Double Eccentric Butterfly Valve addresses these needs through its fundamental geometry.
As the valve opens, the disc lifts completely out of the seat, eliminating rubbing and seat wear. This Double Eccentric Butterfly Valve characteristic ensures a longer service life compared to conventional designs. Furthermore, the reduced friction means actuators can be smaller, lowering installation and operational costs.
For sectors like water treatment and HVAC, where valves cycle frequently, this longevity directly translates to lower total cost of ownership. In chemical and power applications, the ability of a Gongchuang Double Eccentric Butterfly Valve to maintain a bubble-tight seal under high pressure is critical for safety and efficiency.
Double Eccentric Butterfly Valve FAQ
Q: What is the main difference between a concentric valve and a Double Eccentric Butterfly Valve?
A: A concentric valve has its stem centered on the disc, causing constant contact with the seat during operation, which leads to wear. In a Double Eccentric Butterfly Valve, the stem is positioned behind the disc (first offset) and the disc axis is offset from the pipe center (second offset). This creates a cam action during rotation, lifting the disc away from the seat immediately upon opening. This design significantly reduces friction, extends seat life, and lowers operating torque, making it ideal for applications requiring frequent operation or tight shut-off.
Q: Can a Double Eccentric Butterfly Valve handle high-temperature fluids effectively?
A: Yes, absolutely. The Double Eccentric Butterfly Valve is particularly well-suited for high-temperature applications up to 425°C (depending on materials). The offset design prevents the seat from being compressed by the disc during operation, which is a common failure point in standard butterfly valves. By using metal seats and appropriate body materials, a Gongchuang Double Eccentric Butterfly Valve can maintain reliable sealing even under significant thermal expansion, making it a standard choice in power plants and industrial process lines.
Q: How does the bi-directional sealing capability work in this valve type?
A: Unlike some high-performance valves that seal effectively in only one direction, a properly designed Double Eccentric Butterfly Valve achieves bi-directional, drop-tight shut-off. This is accomplished through the precise geometry of the offsets and the design of the seat. When pressure is applied from either direction, the disc is forced into the seat, creating a tighter seal. This capability is essential in applications like pump isolation or treatment plant basins where flow direction may reverse or where double-block isolation is required.
Partner with Gongchuang for Your Flow Control Needs
Selecting the right valve technology impacts your plant efficiency, safety, and bottom line. Whether you operate in water treatment, power generation, or chemical processing, the Double Eccentric Butterfly Valve offers proven performance advantages. With years of engineering experience and a commitment to quality, Gongchuang provides reliable solutions tailored to your specific industrial requirements.
Contact us today to discuss your application details and discover how a Gongchuang Double Eccentric Butterfly Valve can optimize your system performance.
