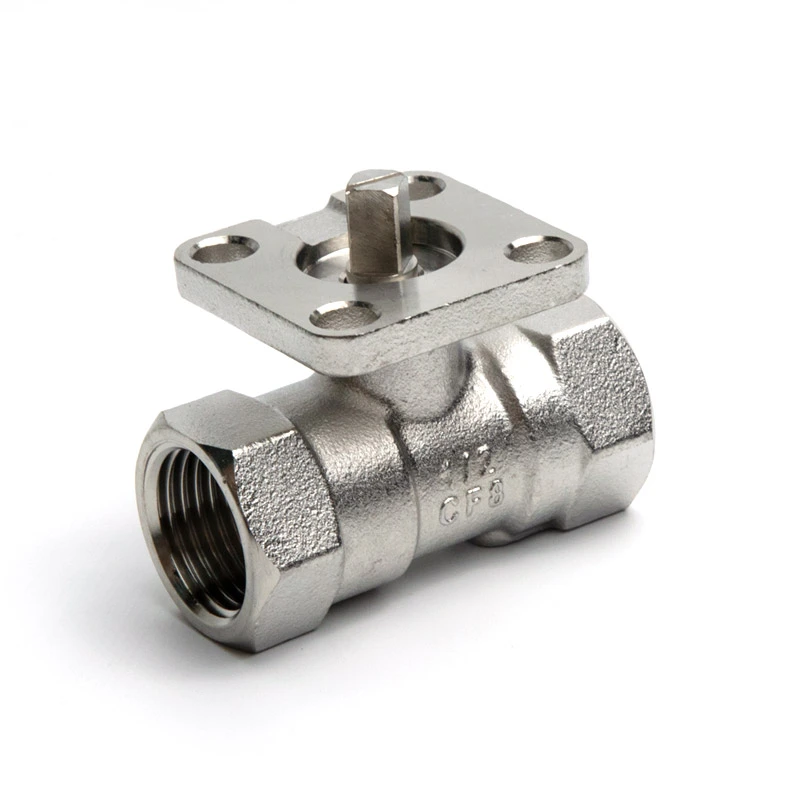

Selecting the right valve for high-purity, sanitary, or corrosive service starts with understanding its operating envelope. A 1PC Electropolished Stainless Steel Direct Mount Ball Valve from Shangtai is engineered to deliver reliable shutoff across demanding pressure and temperature conditions, and knowing the exact ratings helps you specify with confidence. This guide breaks down typical pressure-temperature performance, the factors that influence derating, and the practical limits you should verify before installation.
Understanding the Pressure-Temperature Relationship
Pressure and temperature ratings are not independent numbers. As temperature rises, the allowable working pressure of a 1PC Electropolished Stainless Steel Direct Mount Ball Valve decreases because material strength and seat performance change. Shangtai publishes a pressure-temperature (P-T) curve for every valve series, and engineers should always consult that curve rather than relying on a single maximum value.
| Factor | Typical Range for Shangtai 1PC Valves | Engineering Note |
|---|---|---|
| Body material | SS316 / SS304 | SS316 preferred for chloride-bearing media |
| Maximum working pressure | 1000 psi (68.9 bar) at ambient | Verify against P-T curve at operating temperature |
| Temperature range (standard seats) | -20°C to 180°C (-4°F to 356°F) | PTFE seats; higher limits with special seats |
| Temperature range (high-temp seats) | up to 260°C (500°F) | Confirm seat material before ordering |
| End connections | Threaded, clamp, weld | Rating depends on connection standard |
| Surface finish | Electropolished, Ra ≤ 0.4 µm | Improves cleanability and corrosion resistance |
Key Ratings to Confirm Before Purchase
-
Ambient pressure rating: Most 1PC Electropolished Stainless Steel Direct Mount Ball Valve models are rated to 1000 psi WOG at 20°C, but the rating drops at elevated temperatures.
-
Seat material limit: Standard PTFE seats suit most sanitary duties; PEEK or modified PTFE seats extend the upper temperature ceiling.
-
Connection derating: Clamp and threaded ends may carry lower ratings than welded ends, so match the connection to the system design pressure.
-
Direct mount actuator load: The direct mount pad must be rated for the actuator torque plus safety margin, especially at temperature extremes.
-
Electropolished surface integrity: Electropolishing improves corrosion resistance but does not raise the pressure rating; treat it as a cleanliness and durability enhancement.
Factors That Affect Actual Performance
Media chemistry, cycling frequency, and thermal cycling all influence service life. A 1PC Electropolished Stainless Steel Direct Mount Ball Valve used in steam service should be specified with high-temperature seats and verified against the P-T curve. In clean utility lines, standard PTFE seats and ambient ratings are usually sufficient. Shangtai recommends a 1.5× safety factor on actuator torque and confirms each order against the application data sheet.
FAQ
Q: What is the maximum pressure rating of a 1PC Electropolished Stainless Steel Direct Mount Ball Valve?
A: Most Shangtai models carry a 1000 psi (68.9 bar) WOG rating at ambient temperature, but the allowable pressure decreases as temperature rises. Always read the published P-T curve for the specific model and seat material, and apply a safety margin for cycling and actuator loads.
Q: What temperature range can a 1PC Electropolished Stainless Steel Direct Mount Ball Valve handle?
A: With standard PTFE seats, the typical range is -20°C to 180°C (-4°F to 356°F). Specifying high-temperature seats such as PEEK or modified PTFE raises the ceiling to approximately 260°C (500°F). Confirm the seat material and P-T curve with Shangtai before ordering for steam or hot-oil service.
Q: Does electropolishing change the pressure or temperature rating of a 1PC Electropolished Stainless Steel Direct Mount Ball Valve?
A: No. Electropolishing enhances surface finish, cleanability, and corrosion resistance, but it does not alter the mechanical pressure-temperature rating. The rating is governed by body material, seat material, and connection type, so verify those parameters independently of the surface treatment.
