What makes a Pneumatic Three-Pieces Stainless Steel Ball Valve suitable for high-cycle industrial automation processes
2026-05-07

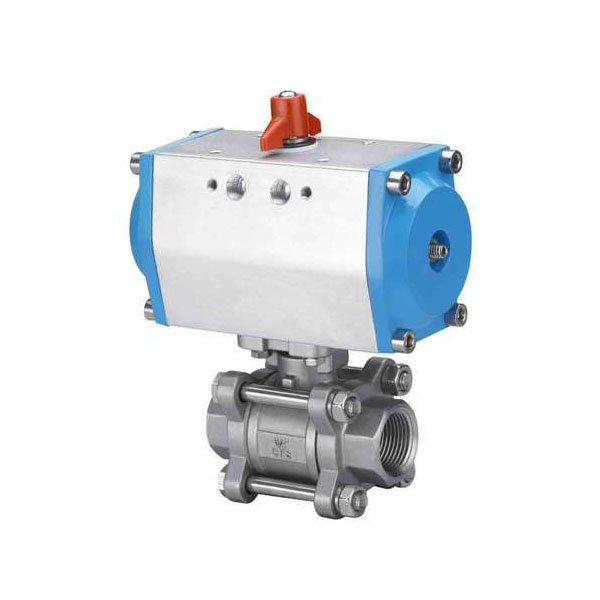

In modern automated systems, the Pneumatic Three-Pieces Stainless Steel Ball Valve has become a preferred solution for repeated, high-frequency operation. At FYL, we engineer these valves to endure millions of cycles while maintaining tight shutoff and rapid actuation. But what exactly enables this durability and precision under continuous use?
Key design features for high-cycle performance
The table below outlines the core attributes that make a Pneumatic Three-Pieces Stainless Steel Ball Valve excel in automation environments.
| Feature | Benefit for High-Cycle Automation |
|---|---|
| Three-piece body construction | Allows inline maintenance without removing pipework, reducing downtime |
| Stainless steel (CF8/CF8M/316L) | Resists wear, corrosion, and thermal stress over millions of cycles |
| Reinforced PTFE or PEEK seats | Minimizes friction and provides consistent sealing under repetitive actuation |
| Rack-and-pinion pneumatic actuator | Delivers fast, reliable open-close action with adjustable stroke |
| Low emission packing system | Prevents leakage even after 100,000+ cycles |
Why automation engineers choose FYL
FYL integrates precision-machined ball components with ISO 5211 mounting pads, ensuring direct actuator alignment. This eliminates side loading – a common failure point in lesser valves. Additionally, the three-piece design enables rapid seal replacement without disturbing upstream or downstream piping.
Pneumatic Three-Pieces Stainless Steel Ball Valve FAQ
Question 1: How many cycles can a Pneumatic Three-Pieces Stainless Steel Ball Valve from FYL reliably perform before maintenance is required?
Answer 1: Under standard pneumatic actuation with clean media (air, water, light oil), FYL valves typically exceed 500,000 cycles with original PTFE seats. For high-temperature or dry gas applications, upgrading to PEEK seats can extend service life beyond 1 million cycles. Regular visual inspection of the stem seal and actuator linkage is recommended every 200,000 cycles or annually.
Question 2: What happens if the valve loses air supply during a critical automation sequence?
Answer 2: Most FYL Pneumatic Three-Pieces Stainless Steel Ball Valves can be fitted with a spring-return actuator, which automatically returns the ball to a pre-set position (normally open or normally closed) upon air failure. Alternatively, double-acting actuators will remain in their last position. For safety-critical loops, we recommend adding a position feedback sensor and a lock-up tank to hold position on pressure drop.
Question 3: Can the valve handle abrasive slurries without rapid seat wear in high-cycle service?
Answer 3: Yes, with appropriate modifications. Standard PTFE seats may wear quickly in abrasive slurry applications. FYL offers hardened seats (PEEK with 15% carbon fiber or metal seat options) and a cavity-filled ball design to prevent particle ingress. In such cases, cycle life may reduce to 100,000–200,000 cycles, but seat replacement remains simple thanks to the three-piece body design.
Practical advantages in automated lines
-
Minimal downtime: End ports stay in place while the center body is removed for service.
-
Traceable materials: FYL provides full mill certificates per EN 10204 3.1.
-
Wide temperature range: -20°C to +220°C (PTFE) or up to +300°C (PEEK/metal seat).
-
Standardized automation accessories: Namur solenoid interface, visual position indicator, and limit switch boxes fit FYL valves directly.
Ready to optimize your high-cycle process
For critical automation lines where every cycle counts, FYL delivers reliability backed by engineering precision. Whether you need fire-safe design, ATEX-compliant actuators, or custom end connections, FYL provides documented performance data for your validation protocols.
Contact us today to discuss your cycle life requirements and request a tailored quote for FYL Pneumatic Three-Pieces Stainless Steel Ball Valve solutions.
