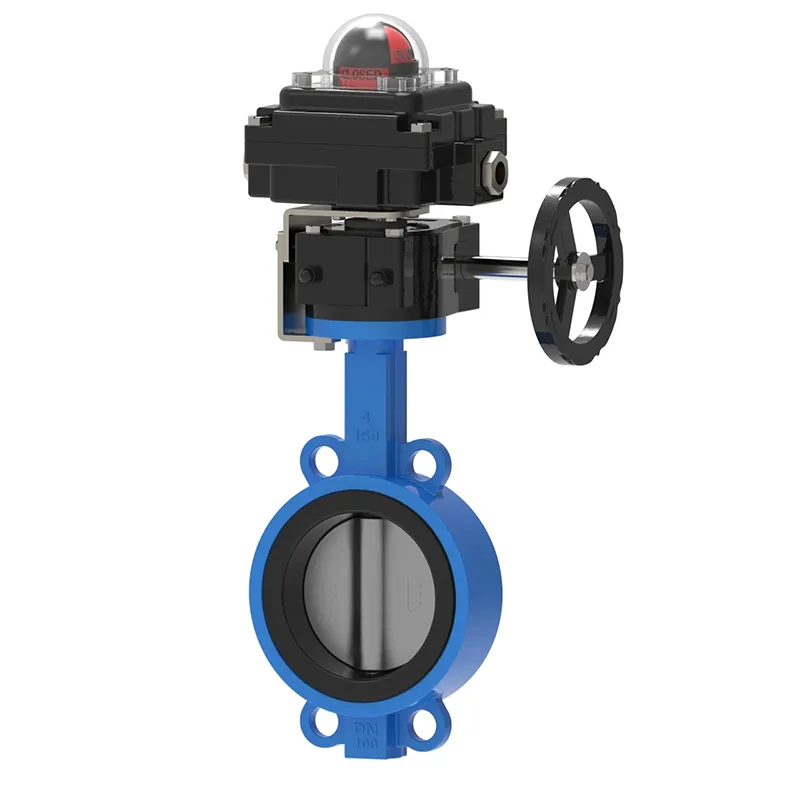

What Makes a Butterfly Valve with Limit Switch Essential for Modern Flow Control?

In modern industrial applications, controlling fluid flow with precision and safety is crucial. The Butterfly Valve with Limit Switch has become a cornerstone solution for industries such as water treatment, chemical processing, HVAC, and power plants. Unlike standard butterfly valves, this type of valve integrates a limit switch mechanism that provides real-time feedback on valve position, ensuring operators can monitor and automate processes more efficiently.

By combining the robust, compact design of a butterfly valve with the intelligence of limit switches, companies like Waits Valve Co., Ltd. provide solutions that optimize both operational safety and productivity.

Table of Contents

1. What is a Butterfly Valve with Limit Switch?

2. How Does It Work?

3. Key Advantages of Using a Limit Switch Butterfly Valve

4. Butterfly Valve with Limit Switch vs. Standard Butterfly Valve

5. Applications Across Industries

6. Installation and Maintenance Tips

7. FAQ

8. Conclusion

1. What is a Butterfly Valve with Limit Switch?

A Butterfly Valve with Limit Switch is a quarter-turn valve designed to regulate or isolate fluid flow. The limit switch is attached to the valve actuator and provides electrical signals when the valve reaches fully open or fully closed positions. This allows seamless integration with automated systems, SCADA monitoring, or safety shutdown mechanisms.

Key Components:

• Valve body

• Disc

• Actuator (manual, electric, or pneumatic)

• Limit switch assembly

• Seals and bearings

2. How Does It Work?

When the valve disc rotates 90 degrees, the limit switch detects the exact position and sends a signal to the control system. This ensures:

• Accurate flow monitoring

• Prevention of over-travel

• Remote operation feedback

This feature is particularly beneficial for high-risk environments where precise control is necessary.

3. Key Advantages of Using a Limit Switch Butterfly Valve

Here's why companies trust Butterfly Valves with Limit Switch:

Additional Benefits:

• Easy installation and retrofitting

• Suitable for corrosive and clean fluids

• Reliable operation in temperature extremes

4. Butterfly Valve with Limit Switch vs. Standard Butterfly Valve

The integration of the limit switch clearly adds value in automated and safety-critical systems, justifying the initial investment.

5. Applications Across Industries

Butterfly Valves with Limit Switch are versatile and used in:

• Water & wastewater treatment plants

• Chemical and petrochemical industries

• HVAC and power generation systems

• Food and beverage processing

• Pharmaceutical production

6. Installation and Maintenance Tips

• Correct Positioning: Ensure the limit switch aligns with the disc rotation.

• Regular Inspection: Check electrical connections and actuator calibration.

• Lubrication: Maintain smooth disc movement without excess friction.

• Environmental Protection: Use suitable enclosures for outdoor or corrosive environments.

7. FAQ

Q: Can the limit switch handle high-temperature fluids?
A: Yes, depending on the material and actuator selection. Waits Valve Co., Ltd. offers options suitable for temperatures up to 250°C.

Q: Are electric actuators compatible with these valves?
A: Absolutely. Both electric and pneumatic actuators can integrate limit switches for precise automation.

Q: How long is the service life?
A: With proper maintenance, the valve can last 10+ years even in demanding industrial conditions.

8. Conclusion

The Butterfly Valve with Limit Switch is more than just a flow control device—it's a solution that enhances operational efficiency, safety, and automation readiness. Whether for retrofitting existing systems or installing in new projects, Waits Valve Co., Ltd. provides high-quality valves engineered to meet industry standards and exceed expectations.
