What Makes a 1PC Electropolished Stainless Steel Direct Mount Ball Valve Ideal for Direct Actuator Mounting
2026-10-08
In sanitary and high-purity fluid systems, engineers increasingly specify a 1PC Electropolished Stainless Steel Direct Mount Ball Valve when automation is required. Shangtai has designed its direct mount series to eliminate the alignment problems, extra brackets, and contamination risks common in traditional valve-actuator assemblies. This article explains the technical reasons why this valve configuration is the preferred choice for direct actuator mounting.
Key Design Advantages of the Shangtai Direct Mount Configuration

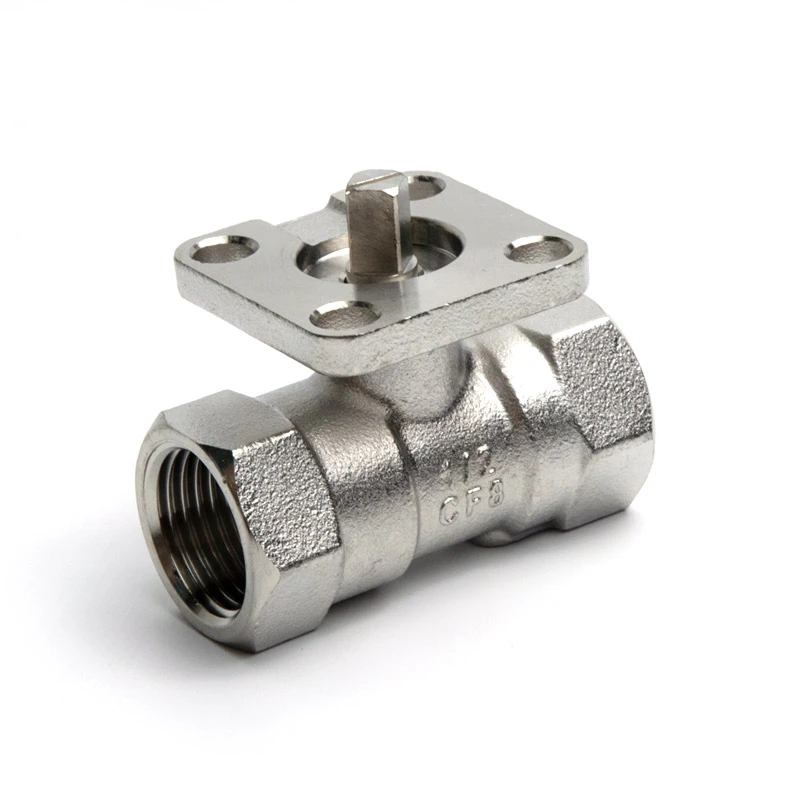

The 1PC Electropolished Stainless Steel Direct Mount Ball Valve from Shangtai integrates an ISO 5211 mounting pad directly onto the valve body. This eliminates the need for a separate mounting bracket and coupling, which reduces the number of potential leak paths and simplifies installation.
| Feature | Traditional Valve + Bracket | Shangtai Direct Mount Valve |
|---|---|---|
| Mounting Interface | Separate bracket and coupling | Integrated ISO 5211 pad |
| Alignment | Manual adjustment required | Factory-machined concentricity |
| Particle Generation | Higher due to bracket wear | Minimal, no bracket contact |
| Installation Time | 30–45 minutes | 10–15 minutes |
| Cleanability | Crevices around bracket | Smooth, crevice-free exterior |
| Actuator Compatibility | Limited by bracket design | Wide range of ISO 5211 actuators |
Why Electropolishing Matters for Direct Mounted Valves
Electropolishing removes the outer layer of stainless steel, creating a smooth, passive surface. For a 1PC Electropolished Stainless Steel Direct Mount Ball Valve, this treatment delivers:
-
Reduced surface roughness (Ra ≤ 0.4 μm), limiting particle adhesion and biofilm formation.
-
Enhanced corrosion resistance, critical in CIP/SIP processes.
-
Improved cleanability, meeting ASME BPE and 3-A sanitary standards.
-
Longer service life under frequent actuation cycles.
Shangtai applies electropolishing after machining and welding, ensuring the internal bore and mounting pad are uniformly treated.
Direct Actuator Mounting: Technical Benefits
-
Precise Torque Transmission – The integrated stem and mounting pad transfer actuator torque directly to the ball, with no backlash from couplings.
-
Repeatable Alignment – The ISO 5211 pad is machined in the same setup as the stem bore, guaranteeing concentricity.
-
Compact Footprint – Eliminates bracket overhang, saving space in skids and manifolds.
-
Simplified Maintenance – Actuator removal and replacement require no re-alignment or shimming.
-
Validated Hygiene – Fewer external crevices mean faster cleaning validation for Shangtai customers in pharmaceutical and food processing.
Applications Where Shangtai Direct Mount Valves Excel
-
Bioprocessing and sterile fill lines
-
WFI and purified water loops
-
Food and beverage CIP systems
-
Chemical dosing skids
-
Semiconductor high-purity gas and liquid delivery
1PC Electropolished Stainless Steel Direct Mount Ball Valve FAQ
Q: What is the maximum actuator torque a 1PC Electropolished Stainless Steel Direct Mount Ball Valve can handle?
A: Shangtai direct mount valves are available in sizes from 1/4" to 4" with ISO 5211 pads rated for actuator torques up to 1,200 in-lbs, depending on valve size and seat material. The integrated stem design eliminates coupling slip, so the full actuator torque is transmitted to the ball without loss.
Q: Can a 1PC Electropolished Stainless Steel Direct Mount Ball Valve be used in steam service?
A: Yes, when specified with the appropriate seat and seal materials. Shangtai offers PTFE, RPTFE, and PEEK seats with temperature ratings up to 450°F (232°C) for saturated steam. The electropolished surface and 316L stainless steel body resist oxidation and maintain sealing integrity under thermal cycling.
Q: How does the 1PC design affect maintenance compared to 2PC or 3PC valves?
A: The 1PC Electropolished Stainless Steel Direct Mount Ball Valve has a unibody construction that eliminates body joint leaks entirely. While seat and seal replacement requires removing the valve from the line, the absence of body joints means fewer parts, lower inventory costs, and higher reliability in continuous processes. Shangtai recommends the 1PC design for applications where leak prevention is paramount.
Q: Is the Shangtai direct mount pad compatible with third-party actuators?
A: Yes. Shangtai manufactures the mounting pad to ISO 5211 dimensions, ensuring compatibility with most pneumatic, electric, and hydraulic actuators. Custom stem adapters are available for non-standard actuator interfaces.
Conclusion
The 1PC Electropolished Stainless Steel Direct Mount Ball Valve from Shangtai combines hygienic surface finish, unibody leak protection, and precise ISO 5211 actuator mounting. For engineers designing automated sanitary systems, this valve reduces installation time, minimizes contamination risk, and delivers repeatable performance.
To discuss your specific flow control requirements or request a quote for Shangtai 1PC Electropolished Stainless Steel Direct Mount Ball Valve solutions, contact our engineering team today. We provide technical datasheets, 3D models, and actuator sizing support for your application.
