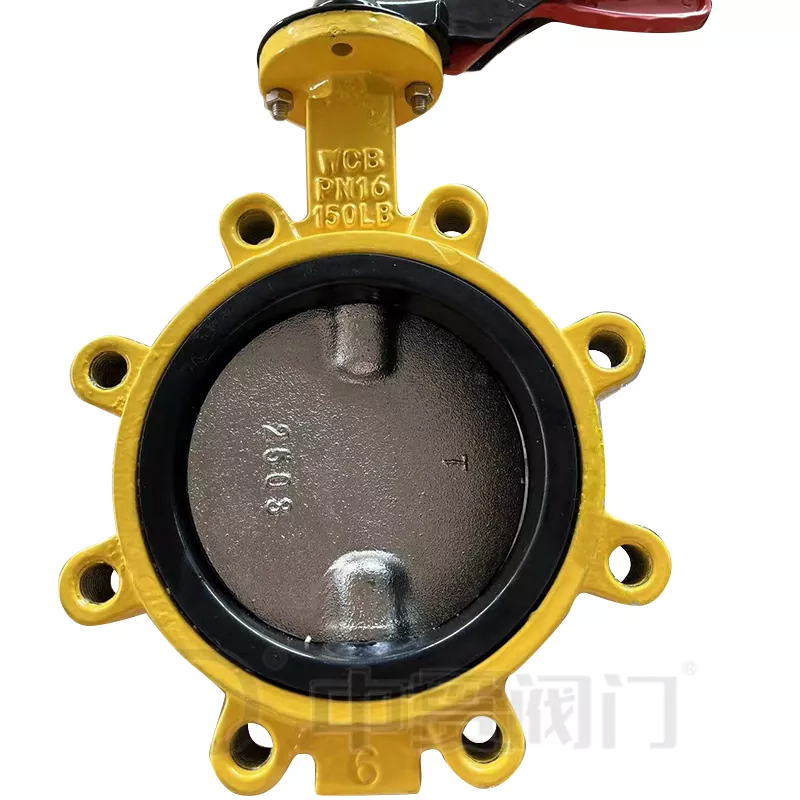

What Maintenance Practices Are Essential for a Lug Type Semi-shaft Butterfly Valve in High Pressure Environments
2026-05-11
When operating a Lug Type Semi-shaft Butterfly Valve under high pressure conditions, routine maintenance is not just a recommendation—it is a necessity. Industrial facilities worldwide rely on Zhongguan for robust valve solutions, and understanding proper upkeep ensures safety, longevity, and peak performance. High pressure environments accelerate wear on seals, shafts, and lug connections, making a structured maintenance plan critical.
Essential Maintenance Practices
| Maintenance Task | Frequency | Key Action Points |
|---|---|---|
| Visual Inspection | Weekly | Check for external leakage, corrosion on lugs, and flange alignment |
| Torque Verification | Monthly | Confirm bolt torque on lug connections; re-torque to spec if needed |
| Shaft Seal Check | Quarterly | Inspect stem packing for extrusion or hardening; replace if damaged |
| Seat and Disc Inspection | Semi-annually | Dismantle to examine PTFE or resilient seat for cracks or deformation |
| Operational Test | Bi-monthly | Cycle valve from fully closed to fully open under reduced pressure |
| Lubrication | Per manufacturer schedule | Apply approved grease to shaft bearings and lug threads |
Beyond routine tasks, high pressure systems demand documented records. Zhongguan recommends always using OEM-certified spare parts to maintain the original pressure rating of your Lug Type Semi-shaft Butterfly Valve.
Common Failure Points in High Pressure Service
-
Lug distortion: Over-torquing bolts or thermal cycling can warp lug inserts.
-
Shaft fretting: Micromotion between shaft and disc leads to wear debris.
-
Seat extrusion: High differential pressure forces soft seats into clearance gaps.
Lug Type Semi-shaft Butterfly Valve FAQ - Frequently Asked Questions
Q1: How often should I replace the seat of a Lug Type Semi-shaft Butterfly Valve in high pressure water service?
A1: For high pressure water applications (above 300 psi), the resilient seat typically requires replacement every 2 to 3 years, depending on cycle frequency and water quality. However, Zhongguan recommends conducting a thickness measurement and visual inspection every 6 months. If you observe chalking, cracking, or loss of elasticity, replace the seat immediately. Abrasive particles or frequent throttling can shorten seat life to 12-18 months. Always decompress the line before seat replacement and follow the valve's torque sequence for lug bolts.
Q2: Can I lubricate the shaft of a Lug Type Semi-shaft Butterfly Valve without disassembling the valve?
A2: Yes, most designs include a lubricant fitting or injection port on the upper shaft bearing area. For high pressure environments, Zhongguan advises using a high-viscosity, extreme-pressure (EP) grease that resists washout. Inject lubricant slowly while rotating the shaft slightly to ensure even distribution. Do not over-grease, as excess can migrate into the seat and attract debris. If no external port exists, partial disassembly is required every 12 months for bearing lubrication. Never mix different grease types, as this can cause chemical breakdown.
Q3: What are the signs that lug bolts have failed on a Lug Type Semi-shaft Butterfly Valve under high pressure
A3: Key failure indicators include visible fluid weeping between the lug and flange, uneven gap around the valve body, and a sudden drop in downstream pressure when upstream remains steady. You may also hear a high-pitched whistling noise during operation. Zhongguan emphasizes that lug bolts in high pressure systems should be replaced every 5 years even without visible damage due to stress corrosion cracking. If you find any bolt with elongation, thread galling, or rust on the shank, replace the entire set of lug bolts with the correct grade (e.g., B7 or B8M for high temp/pressure).
Conclusion and Contact Us
Proper maintenance of a Lug Type Semi-shaft Butterfly Valve in high pressure environments directly impacts plant uptime and worker safety. From scheduled torque checks to understanding seat wear patterns, every step matters. Zhongguan provides engineered documentation, field support, and certified repair kits tailored to high pressure service.
For a detailed maintenance log template or to arrange an on-site valve assessment, contact us today. Our team at Zhongguan helps you extend the service life of every Lug Type Semi-shaft Butterfly Valve in your critical piping network.
