What Is the Maximum Pressure Rating for a GB Carbon Steel Basket Strainer in Steam Systems

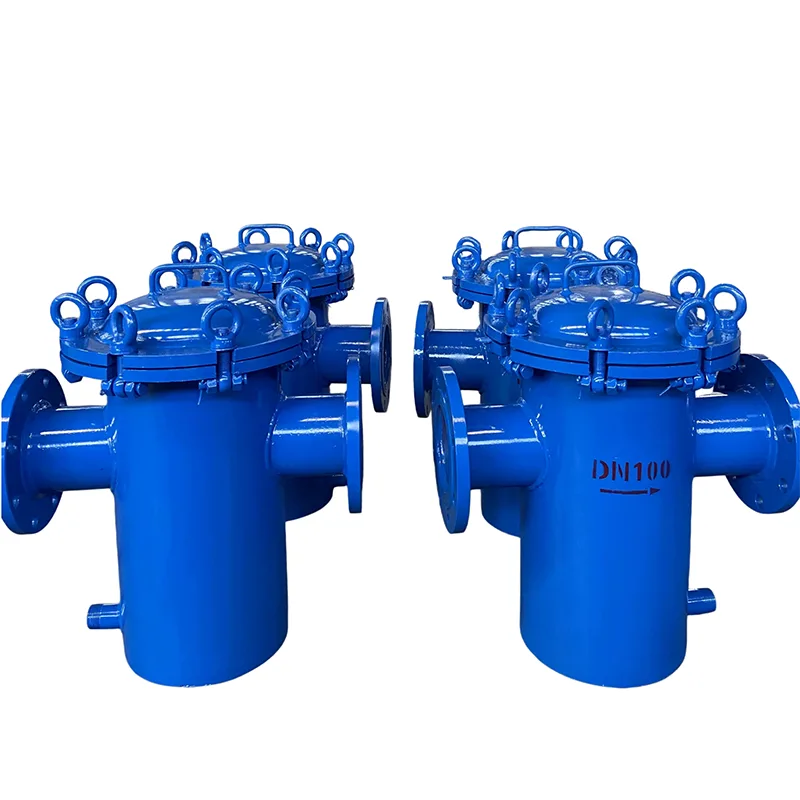

When specifying pipeline protection for high-temperature steam networks, engineers frequently ask about the pressure limits of strainer equipment. The GB Carbon Steel Basket Strainer manufactured by Huadu is designed to handle demanding thermal cycles, but its maximum allowable working pressure depends on multiple factors—including temperature, flange class, and shell thickness. Unlike standard water-service strainers, steam applications impose additional stress from thermal expansion and condensate hammer, which directly affect the pressure-retaining capability of the GB Carbon Steel Basket Strainer. Understanding these limits is not just a compliance exercise; it is a critical step to ensure operator safety and system reliability.

Pressure-Temperature Ratings for GB Carbon Steel Basket Strainers

The maximum pressure for a GB Carbon Steel Basket Strainer in steam service follows the ASME B16.5 flange rating system, adjusted for material grade (typically ASTM A105 for forged carbon steel). Below is the standard derating curve for a Class 150 and Class 300 GB Carbon Steel Basket Strainer in saturated steam conditions:

Note: These values assume a standard wall thickness and no additional corrosion allowance. For superheated steam, further derating applies—consult Huadu's technical datasheet for exact curves.

Factors That Reduce the Maximum Working Pressure

Even with a correctly rated flange, the actual safe operating pressure for a GB Carbon Steel Basket Strainer in steam systems can be lower due to:

• Cyclic thermal fatigue – Frequent start/stop cycles weaken shell welds over time.

• Erosion from wet steam – High-velocity droplets erode the basket and internal supports.

• Gasket relaxation – Compressed fiber or spiral-wound gaskets lose bolt load at high temperatures.

• Corrosion allowance depletion – Condensate with low pH accelerates wall thinning.

Huadu addresses these risks by using extra-thick shell forgings and optional stellite-faced sealing surfaces on all GB Carbon Steel Basket Strainer models intended for steam duty.

Practical Sizing Recommendation for Steam Lines

For saturated steam up to 200°C, Huadu recommends selecting a Class 300 GB Carbon Steel Basket Strainer even if the calculated static pressure is under 12 bar. This provides a safety margin for condensate hammer events, which can spike pressures to 3–4 times the normal value. Additionally, always install the strainer with the blow-down port facing downward and provide adequate drip-leg piping to prevent liquid accumulation inside the basket chamber.

3 Frequently Asked Questions About the GB Carbon Steel Basket Strainer in Steam Systems

Q1: Can I use a standard GB Carbon Steel Basket Strainer rated for water service in a 180°C steam line without derating?

A1: No. A water-service GB Carbon Steel Basket Strainer often uses a thinner shell and lower-grade bolts (e.g., B7 vs. B16). At 180°C, the yield strength of A105 carbon steel drops by approximately 18%, and the flange bolt preload relaxes significantly. Without proper derating, the strainer body may deform permanently, causing cover leakage or even catastrophic rupture. Huadu explicitly marks steam-rated GB Carbon Steel Basket Strainer units with a "S" suffix on the nameplate and provides a certified pressure-temperature chart for each batch.

Q2: How do I verify the actual maximum pressure for my specific GB Carbon Steel Basket Strainer model if the nameplate is worn?

A2: First, measure the shell outside diameter and wall thickness using an ultrasonic gauge. Then, cross-reference the flange face type (RF, FF, or RTJ) and bolt diameter with the original material test report (MTR). If the MTR is unavailable, Huadu offers a re-certification service where we perform hydrostatic testing at 1.5× the design pressure and recalculate the MAWP (Maximum Allowable Working Pressure) based on actual measured dimensions. Always record the test temperature, because a GB Carbon Steel Basket Strainer tested at 20°C may have a lower MAWP at 220°C—never extrapolate linearly without the ANSI derating formulas.

Q3: What happens if I exceed the maximum pressure for a short duration during steam system startup?

A3: Transient over-pressure—often called "spike"—is more dangerous than steady-state excess because it combines with thermal shock. A 15-second spike of 130% of the rated pressure can yield the shell bolts beyond their elastic limit, permanently reducing clamp load. Subsequent normal cycles will then cause gasket weeping. Huadu recommends installing a pressure-relief valve set at 90% of the GB Carbon Steel Basket Strainer's cold hydrostatic test pressure. Additionally, for systems with frequent startups, choose Huadu's heavy-series GB Carbon Steel Basket Strainer, which features a double-welded cover joint and Inconel bolting to withstand transient spikes up to 1.4× the nominal rating without permanent deformation.

Best Practices for Installation and Monitoring

To safely operate near the maximum pressure, Huadu advises:

• Use annealed copper or flexible graphite gaskets—never rubber-based.

• Apply anti-seize compound on all stud threads to ensure uniform torque.

• Install differential pressure gauges across the basket to detect clogging early—a blocked basket multiplies the effective pressure on the cover.

• Perform a post-weld heat treatment (PWHT) if field welding is done on the strainer connections.

Why Choose Huadu for Your Steam Strainer Needs

Huadu has over 18 years of experience in manufacturing GB Carbon Steel Basket Strainer units for power plants, chemical processing, and district heating networks. Every shell is fully radiographed and hydrostatically tested before shipping. Our steam-rated models come with a 3-year warranty against pressure-boundary failures when installed per our IOM manual.

Contact Us

Selecting the correct pressure rating for your GB Carbon Steel Basket Strainer is not a one-size-fits-all decision—it depends on your specific steam temperature, cycle frequency, and downstream equipment sensitivity. Huadu's engineering team provides free pressure-temperature calculations and material upgrade suggestions within 24 hours. Reach out to us via our website contact form or email [email protected] with your steam system parameters, and we will deliver a customized GB Carbon Steel Basket Strainer datasheet with guaranteed MAWP values for your exact operating conditions. Let Huadu safeguard your steam pipeline—contact us today for a no-obligation technical consultation.
