What Is the Maximum Pressure Rating for a Carbon Steel ASTM Basket Strainer in Steam Service

When specifying strainers for high-temperature steam pipelines, engineers often ask about pressure limits. The answer is not a single number—it depends on the ASTM material grade, flange rating, and operating temperature. For critical steam applications, Huadu provides Carbon Steel ASTM Basket Strainer solutions that comply with ASME B16.5 and B16.34, ensuring safe and reliable performance. This blog breaks down the pressure-temperature matrix, design factors, and maintenance best practices for steam service.

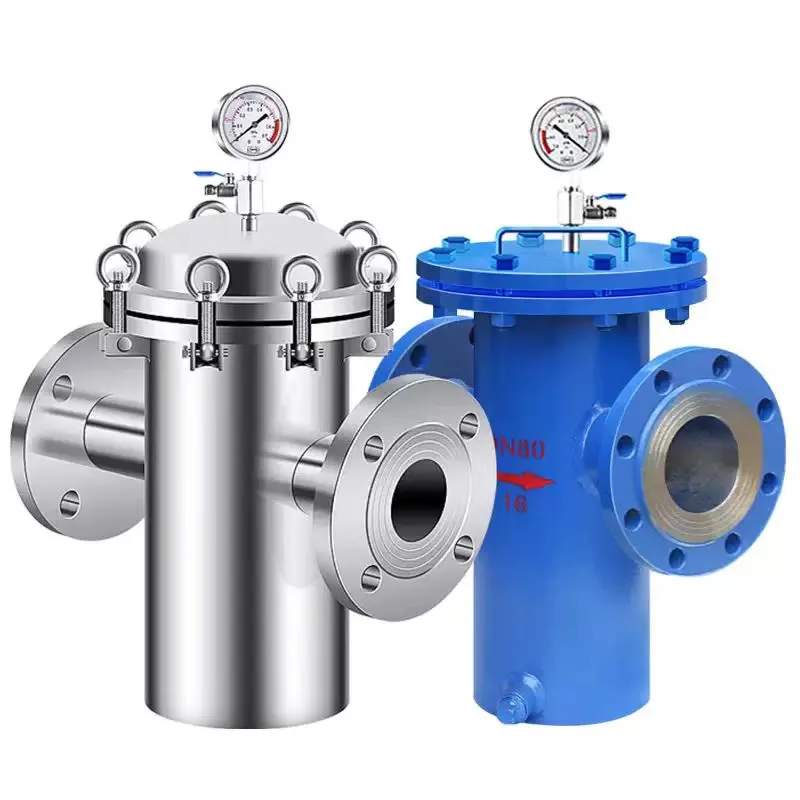

Pressure-Temperature Ratings for Carbon Steel ASTM Basket Strainers

The maximum allowable working pressure (MAWP) for a Carbon Steel ASTM Basket Strainer drops as temperature rises. Below is the typical rating for ASTM A216 WCB (the most common cast carbon steel grade) with Class 150 and Class 300 flanged ends, based on ASME B16.5-2020.

Note: For saturated steam at 350°F (approx. 150 psig), a Class 150 Carbon Steel ASTM Basket Strainer is acceptable, but for superheated steam above 500°F, Class 300 or higher is recommended.

Critical Design Factors for Steam Service

Steam is erosive and thermally cyclic. Therefore, the Carbon Steel ASTM Basket Strainer must consider:

• Shell thickness – calculated per ASME Section VIII Div. 1.

• Blind flange and cover bolting – ASTM A193 B7 studs with A194 2H nuts.

• Gasket material – spiral-wound 316SS/graphite for high-temperature sealing.

• Drain connection – often fitted with a steam trap jacketing option to prevent condensate hammer.

Huadu designs each Carbon Steel ASTM Basket Strainer with a minimum design margin of 15% above the rated MAWP, ensuring safety during startup surges.

Why ASTM Grade Matters

Not all carbon steels are equal. Common ASTM specifications for basket strainer bodies include:

• ASTM A216 WCB – standard for cast carbon steel, service up to 800°F.

• ASTM A105 – forged carbon steel for high-pressure small-bore strainers.

• ASTM A352 LCB – low-temperature carbon steel (not recommended for steam).

For steam above 650°F, creep becomes a concern. Huadu recommends derating the Carbon Steel ASTM Basket Strainer by 2.5% per 50°F increment beyond 650°F, per API 600 guidelines.

Recommended Installation Practices

To achieve the rated pressure, follow these rules:

• Install the strainer with the flow arrow pointing downstream.

• Provide adequate straight pipe runs (5D upstream, 3D downstream) for stable flow.

• Use a pressure gauge before and after the strainer to monitor ΔP.

• Never exceed the cold hydrostatic test pressure (1.5× MAWP) during commissioning.

Huadu offers custom nozzle orientations and bypass piping layouts for seamless integration into existing steam headers.

FAQ – Common Questions About Carbon Steel ASTM Basket Strainers in Steam

Q1: Can I use a standard carbon steel basket strainer for superheated steam at 750°F and 600 psig?

A1: No. At 750°F, the allowable stress for ASTM A216 WCB drops significantly below 600 psig (approximately 480 psig for Class 600). You would need either a chrome-moly alloy (e.g., ASTM A217 WC6) or reduce the operating pressure. Huadu can supply a Carbon Steel ASTM Basket Strainer with ASTM A105 forged body and extended neck flanges to handle up to 650°F at 600 psig, but for 750°F we strongly advise upgrading to WC6 material. Always consult the pressure-temperature table for your specific flange class before commissioning.

Q2: How does thermal expansion affect the bolting torque on a Carbon Steel ASTM Basket Strainer in steam service?

A2: Thermal expansion causes studs and nuts to elongate at different rates. For a Carbon Steel ASTM Basket Strainer operating at 500°F, the recommended re-torque procedure is: tighten to 70% of yield at ambient temperature, then re-torque after 24 hours of operation, and again after the first cooldown-warmup cycle. Huadu specifies ASTM A193 B7 studs with a coefficient of thermal expansion of 6.7 µin/in-°F, which matches the body material to minimize flange leakage. We also recommend using belleville spring washers to maintain gasket compression during thermal transients.

Q3: What is the maximum allowable differential pressure (ΔP) across the basket when the strainer is partially clogged in steam lines?

A3: For a clean Carbon Steel ASTM Basket Strainer, ΔP is typically 2–3 psi. However, the maximum structural ΔP for the perforated basket itself is limited to 50 psig at 400°F for a standard 0.125" thick 304SS basket. If ΔP exceeds 15 psig in steam service, the basket can collapse due to buckling. Huadu equips its Carbon Steel ASTM Basket Strainer with a heavy-duty basket (0.187" thickness) and an integral magnetic level indicator to warn operators. We strongly advise installing a ΔP transmitter with a high alarm set at 10 psig, and never allowing ΔP to surpass 25% of the MAWP to avoid basket deformation or cover gasket blowout.

Maintenance Schedule for Steam Strainers

Huadu provides OEM spare baskets in 316L, Monel, or Inconel for aggressive steam condensate with low pH.

Why Choose Huadu for Your Steam Filtration Needs?

With over 20 years in pressure vessel manufacturing, Huadu delivers Carbon Steel ASTM Basket Strainer units that are fully traceable, with mill certificates, PMI testing, and hydrostatic reports. Every strainer is nameplated with MAWP, test pressure, and serial number for full lifecycle tracking.
