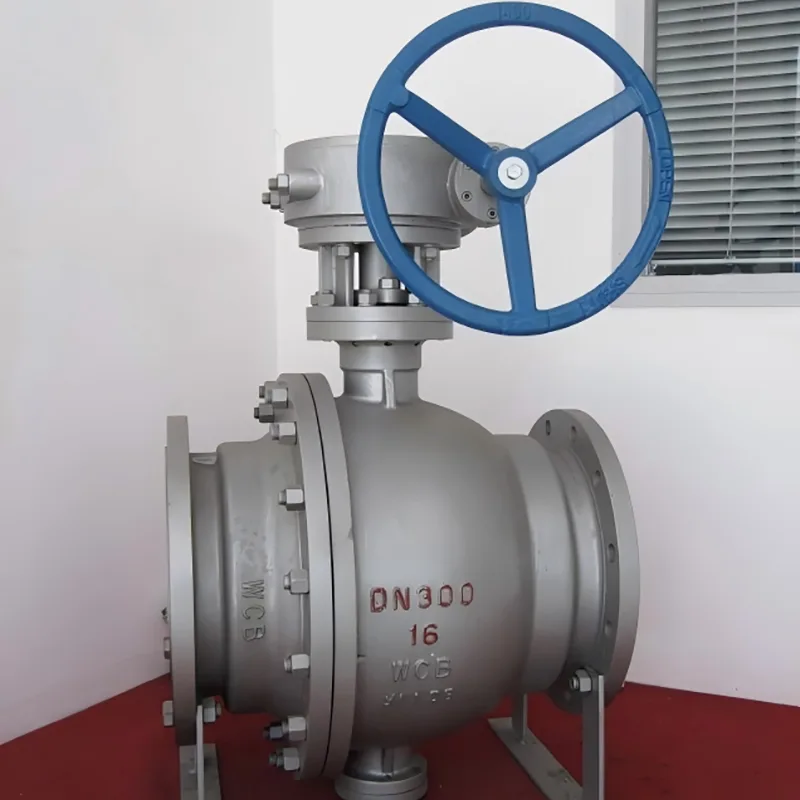

What Is a Metal-Seated Ball Valve and Why Is It Critical for Severe Service Applications?

In modern industrial fluid control systems, valves are not just components—they are performance-critical assets that directly influence safety, efficiency, and operational cost. Among various valve types, the Metal-Seated Ball Valve stands out as a robust solution designed for extreme working conditions where traditional soft-seated valves fail. With increasing demands from industries such as oil & gas, petrochemical, power generation, mining, and metallurgy, understanding the value and engineering behind the Metal-Seated Ball Valve is essential for long-term system reliability.

This article explores its structure, advantages, applications, and why manufacturers like Hebei Gongchuang Fluid Equipment Co., Ltd. are continuously innovating to deliver high-performance valve solutions for global markets.

Understanding the Metal-Seated Ball Valve Structure

A Metal-Seated Ball Valve uses metal-to-metal sealing between the ball and seat instead of polymer or elastomer materials. This design enables it to withstand high temperature, high pressure, and abrasive media.

Key structural elements include:

• Valve body (carbon steel, stainless steel, alloy steel)
• Precision-machined metal ball
• Hardened metal seat (often coated with tungsten carbide or chromium carbide)
• Stem and actuator connection
• Fire-safe and anti-static design components

Unlike soft-seated valves, the sealing surfaces are engineered with advanced hardening technologies to reduce wear and maintain sealing integrity under harsh conditions.

Why Choose a Metal-Seated Ball Valve?

The primary reason industries shift toward Metal-Seated Ball Valve systems is durability under extreme environments. Soft-seated valves may provide tight sealing initially, but they degrade quickly when exposed to high temperature, slurry, or corrosive fluids.

Key Advantages:

• High Temperature Resistance: Suitable for applications exceeding 400°C
• Abrasion Resistance: Ideal for slurry, ash, and particulate media
• Long Service Life: Reduced maintenance frequency and downtime
• Fire-Safe Performance: Maintains integrity in emergency conditions
• Bidirectional Sealing: Ensures stable flow control in both directions

These features make it a preferred solution in heavy-duty industrial pipelines.

Metal-Seated Ball Valve vs Soft-Seated Ball Valve

To better understand its value, consider the comparison below:

From the table, it is clear that the Metal-Seated Ball Valve is specifically engineered for demanding industrial environments where reliability cannot be compromised.

Main Applications of Metal-Seated Ball Valve

The versatility of the Metal-Seated Ball Valve allows it to serve a wide range of industries:

1. Oil & Gas Industry

Used in upstream and downstream processes for crude oil, natural gas, and refinery operations.

2. Power Generation

Ideal for coal-fired, thermal, and nuclear power plants handling steam, ash, and high-temperature fluids.

3. Metallurgy & Mining

Handles abrasive slurries, ore mixtures, and high-density particulate flows.

4. Chemical Processing

Resistant to corrosive media and high-pressure chemical reactions.

5. Water Treatment (Heavy Duty)

Used in sludge handling and industrial wastewater systems.

Working Principle of Metal-Seated Ball Valve

The operation is relatively simple yet highly precise:

1. The actuator rotates the stem by 90 degrees.
2. The ball rotates accordingly, aligning or blocking the flow path.
3. Metal seats ensure tight sealing even under high pressure.
4. Hard-faced surfaces reduce friction and wear during operation.

This quarter-turn mechanism ensures fast response time and reliable shutoff capability.

Technical Features That Matter

The performance of a Metal-Seated Ball Valve depends heavily on engineering precision. Key technical features include:

• Precision grinding of sealing surfaces
• Hard-facing treatment (HVOF coating technology)
• Anti-blowout stem design
• Fire-safe certification compliance
• Low torque operation design
• High-pressure rating (Class 150–2500 or higher)

These features ensure the valve performs consistently even under fluctuating operational conditions.

Why Hebei Gongchuang Fluid Equipment Co., Ltd. Stands Out

As a professional manufacturer in industrial fluid control systems, Hebei Gongchuang Fluid Equipment Co., Ltd. focuses on delivering high-quality Metal-Seated Ball Valve products tailored to global industry requirements.

The company emphasizes:

• Advanced CNC machining precision
• Strict quality control testing
• Customized engineering solutions
• International standard compliance (API, ANSI, ISO)
• Reliable after-sales technical support

By combining engineering expertise with manufacturing capability, Hebei Gongchuang Fluid Equipment Co., Ltd. ensures each Metal-Seated Ball Valve meets the highest standards of safety and durability.

Benefits of Using High-Quality Metal-Seated Ball Valve Systems

Choosing a premium-grade valve delivers long-term operational advantages:

• Reduced unplanned downtime
• Lower total cost of ownership
• Improved system safety
• Enhanced flow control efficiency
• Better resistance to extreme process conditions

In industries where failure is not an option, investing in high-quality valves becomes a strategic decision rather than a simple procurement choice.

Maintenance and Operational Considerations

Although Metal-Seated Ball Valves are designed for durability, proper maintenance enhances their lifespan:

• Regular inspection of sealing surfaces
• Periodic lubrication of stem components
• Monitoring torque and operational resistance
• Preventing dry operation under high load
• Ensuring correct installation alignment

Proper handling ensures stable performance over years of continuous operation.

Conclusion

The Metal-Seated Ball Valve is a vital component in modern industrial systems requiring durability, safety, and high performance under extreme conditions. Its ability to withstand high temperatures, abrasive media, and high-pressure environments makes it indispensable across multiple industries.

With continuous innovation and engineering excellence, Hebei Gongchuang Fluid Equipment Co., Ltd. provides reliable valve solutions that help industries operate more safely and efficiently.

If you are looking for a trusted partner for high-performance valve systems, contact us to learn more about our Metal-Seated Ball Valve solutions and customized engineering services.
