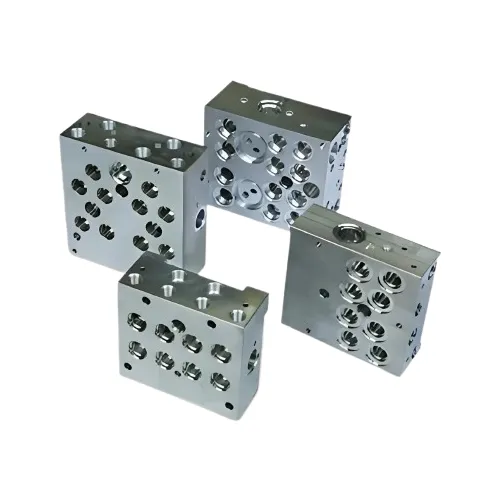

What Is a CNC Prototype Valve Body and Why Is It Critical for Modern Fluid Control Systems?

In precision manufacturing and advanced fluid control applications, rapid validation and functional accuracy are no longer optional—they are decisive factors. As industries such as automotive, hydraulics, pneumatics, and industrial automation evolve, the demand for highly accurate prototype components continues to grow. Among them, the CNC Prototype Valve Body plays a central role in testing flow paths, pressure resistance, and assembly feasibility before mass production. At Ningbo Wonderful Numerical Control Technology Co.,Ltd., we focus on transforming design intent into reliable physical prototypes that shorten development cycles and reduce risk.

Dual-Level Heading

CNC Prototype Valve Body vs Traditional Cast Valve Body

Which Is Better for Product Development?

Traditional cast valve bodies are cost-effective for large volumes but lack flexibility during early-stage development. In contrast, a CNC Prototype Valve Body allows engineers to verify internal channels, tolerances, and sealing performance with high precision.

Q1: What makes a CNC-machined prototype valve body superior for R&D?
A: Because CNC machining enables tight tolerances, complex internal geometries, and fast iteration, making it ideal for functional and performance testing tied directly to real operating conditions.

Key Functions and Roles

The valve body is the structural core of any valve system. Its main functions include:

• Housing internal flow channels

• Supporting sealing and control components

• Withstanding pressure, temperature, and mechanical stress

Using a CNC Prototype Valve Body ensures that these functions are validated early, preventing costly redesigns later.

Performance and Usage Effects

From a practical standpoint, prototype valve bodies produced by CNC machining deliver measurable benefits:

• Accurate simulation of real working conditions

• Immediate feedback on flow efficiency and leakage risks

• Improved assembly validation with mating components

Q2: Why does prototype accuracy directly affect final product performance?
A: Because any deviation in internal channels or mounting surfaces can alter flow behavior, and CNC prototypes reflect final production geometry far more reliably than alternative methods.

Technical Parameters Overview

Below is a simplified example of common prototype specifications:

These parameters highlight why a CNC Prototype Valve Body is indispensable for engineering validation.

Importance in Product Development

At Ningbo Wonderful Numerical Control Technology Co.,Ltd., we understand that speed and precision define competitiveness. I believe that early-stage prototypes should mirror production reality as closely as possible. We invest in advanced multi-axis CNC equipment to support complex valve body geometries while maintaining consistency.

Q3: How does a professional CNC supplier add value beyond machining?
A: By offering design feedback, material selection advice, and process optimization, ensuring the prototype truly supports decision-making.

I have seen firsthand how precise prototypes reduce trial-and-error costs, and we continuously refine our processes to meet international quality expectations.

Why Choose Ningbo Wonderful Numerical Control Technology Co.,Ltd.

• Experienced engineering and manufacturing team

• Stable quality control and inspection system

• Flexible support from single prototype to small batch production

If you are seeking a reliable partner for high-precision valve body prototyping and want to accelerate your product development with confidence, feel free to contact us for professional support and tailored solutions.
