PTFE Lined Valve: High-Performance Corrosion-Resistant Flow Control Solution
2025-08-06
In industries where aggressive chemicals and highly corrosive media are present, selecting the right valve becomes critical to ensure safety, reliability, and long-term durability. A PTFE Lined Valve stands out as an ideal choice, offering outstanding resistance to corrosion, minimal maintenance, and high sealing performance. Whether applied in chemical processing, pharmaceuticals, or wastewater treatment, PTFE-lined valves are engineered to handle the most demanding applications.
A PTFE Lined Valve is a flow control valve internally coated with Polytetrafluoroethylene – a highly inert and chemically resistant fluoropolymer. The PTFE lining protects the internal metallic components of the valve from corrosive media, greatly extending its service life and operational safety.
PTFE-lined valves are especially favored where conventional metal valves would corrode, such as in hydrochloric acid, sulfuric acid, caustic soda, chlorine gas, or other aggressive fluids.
Common Applications
PTFE Lined Valves are used across various industries that demand chemical resistance and clean flow:
| Industry | Application Examples |
|---|---|
| Chemical Processing | Acid/alkali handling, chlorine systems |
| Pharmaceutical | Solvent handling, sterile processing |
| Water Treatment | pH adjustment systems, sludge handling |
| Food and Beverage | CIP/SIP systems, ingredient dosing |
| Pulp and Paper | Bleaching chemical transfer |
| Semiconductor | Ultra-pure water (UPW) systems |
Technical Specifications
Here are typical specifications of a high-quality PTFE Lined Valve (standard types: ball and butterfly):
1. General Parameters
| Parameter | Specification |
|---|---|
| Valve Type | Ball, Butterfly, Plug, Diaphragm |
| Lining Material | Virgin PTFE, PFA (optional) |
| Valve Body Material | Ductile Iron, Carbon Steel, SS304/316 |
| Size Range | DN15 to DN600 (1/2" to 24") |
| Pressure Rating | PN10, PN16, ANSI Class 150 |
| Temperature Range | -29°C to +180°C (depending on PTFE grade) |
| Operation Type | Manual, Electric, Pneumatic |
| Face-to-Face Dimension | ANSI B16.10, DIN EN 558 |
| Flange Standard | ANSI B16.5, DIN PN10/PN16, JIS |
2. PTFE Lining Properties
| Property | PTFE Performance |
|---|---|
| Chemical Resistance | Excellent against >98% chemicals |
| Anti-adhesive Surface | Prevents scaling and fouling |
| Tensile Strength | Approx. 25 MPa |
| Thermal Stability | Stable up to 180°C |
| Electrical Insulation | Excellent |
Product Models Available
-
PTFE Lined Ball Valve (Full bore, floating or trunnion type)
-
PTFE Lined Butterfly Valve (Wafer, Lug, or Flanged end)
-
PTFE Lined Plug Valve
-

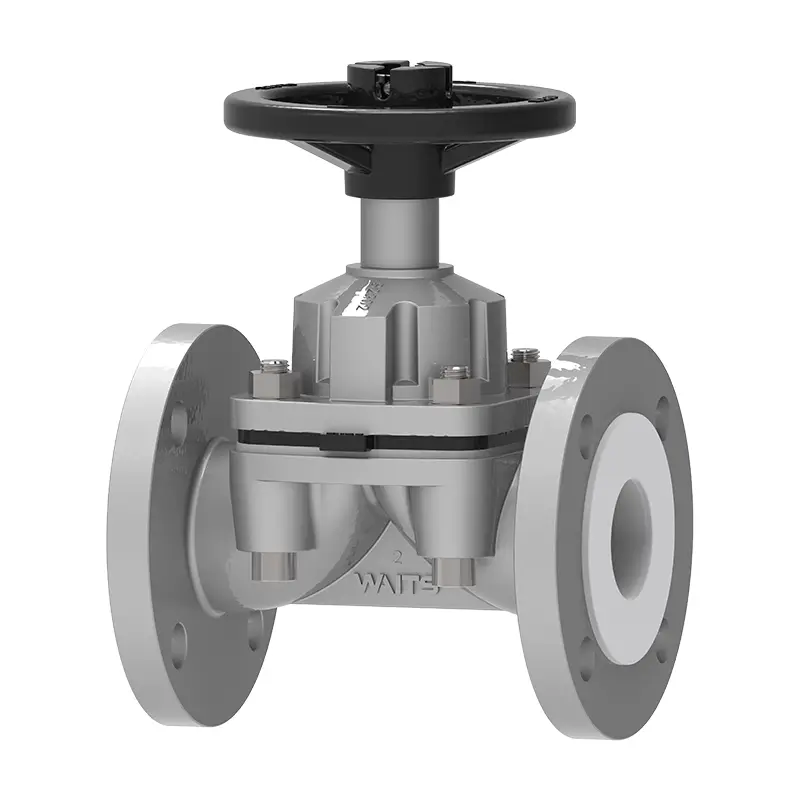

PTFE Lined Diaphragm Valve
-
PTFE Lined Check Valve
Each type can be customized in terms of actuation, flange compatibility, and special coatings for demanding environments.
Installation Guidelines
-
Ensure the pipeline is clean and free from foreign materials.
-
Use flat-faced flanges with soft gaskets to prevent PTFE surface damage.
-
Tighten flange bolts in a crisscross pattern and avoid overtightening.
-
Avoid using PTFE-lined valves in high-vacuum applications unless rated.
-
Store valves in a dry and dust-free area before installation.
Maintenance Tips
-
Periodically inspect PTFE linings for wear or degradation.
-
Avoid mechanical shocks during operation.
-
Do not expose the valve to temperatures beyond specified limits.
-
For actuated valves, regularly test limit switches and torque settings.
PTFE Lined Valve FAQ
Q1: What makes PTFE Lined Valves better than metal valves in corrosive applications?
A1: PTFE Lined Valves offer superior chemical resistance due to the inert nature of PTFE, which shields internal components from acidic or caustic attack. This reduces corrosion, leakage, and maintenance, unlike metal valves which often suffer from rapid degradation.
Q2: Can PTFE Lined Valves be used in high-temperature applications?
A2: Yes, but within limits. Most PTFE Lined Valves can operate safely up to 180°C, depending on the specific PTFE or PFA grade used. Beyond this, PTFE may degrade or lose mechanical strength, so it's important to check manufacturer data sheets before use.
Q3: How do I choose the right size and type of PTFE Lined Valve for my application?
A3: Begin by identifying the chemical media, pressure, temperature, and flow rate in your system. Select the valve type (ball, butterfly, etc.) based on process control needs. Always ensure the lining material matches the chemical compatibility requirements. Consult our engineers for tailored advice.
Why Choose Our PTFE Lined Valves?
We manufacture PTFE Lined Valves under rigorous quality standards, using certified materials and advanced lining technologies. Our products go through 100% hydraulic and leak testing before shipment. We offer:
-
Fast global delivery and local support
-
Customization for any specification
-
Compliance with international standards (ISO, CE, API)
-
Technical documentation and maintenance guides
Conclusion
A PTFE Lined Valve is an essential component in systems where aggressive fluids are present. With unmatched resistance to corrosion and long-term reliability, they provide peace of mind in even the harshest environments. Whether you're engineering a new chemical process plant or upgrading an existing line, PTFE-lined valves are the smart and safe choice. For detailed support, custom engineering, or bulk purchase inquiries, please contact our technical team.
