Key Selection Criteria for Slab Gate Valves in Pipeline Systems
2025-08-08
Introduction to Slab Gate Valves
Slab gate valves are critical flow control components designed for high-pressure pipeline systems, particularly in oil & gas applications. At Baoyi, we manufacture premium slab gate valves that meet the most stringent industry standards. This comprehensive guide outlines essential selection criteria, technical specifications, and application considerations for optimal valve performance.
Critical Selection Factors for Slab Gate Valves
1. Design & Performance Parameters
| Parameter | Importance | Baoyi Standards |
|---|---|---|
| Pressure Rating | Must exceed system requirements | ANSI 150#-2500# |
| Bore Design | Full-port for minimal flow restriction | API 6D compliant |
| Sealing System | Metal-to-metal or resilient seated | Dual-seal options |
| Stem Type | Rising or non-rising | OSHA-compliant designs |
2. Material Specifications
| Component | Standard Material | High-Performance Options |
|---|---|---|
| Body | A216 WCB | A351 CF8M, Duplex 2205 |
| Gate | 410 Stainless Steel | 17-4PH, Inconel 625 |
| Seats | 13% Chrome | Stellite 6, Tungsten Carbide |
| Stem | 17-4PH Stainless | Monel K500 |
3. Operational Characteristics
✔ Temperature range: -46°C to 650°C
✔ Bubble-tight shutoff: API 598 Class VI
✔ Cyclic life: 5,000+ full operations
✔ Fire-safe design: API 6FA compliant

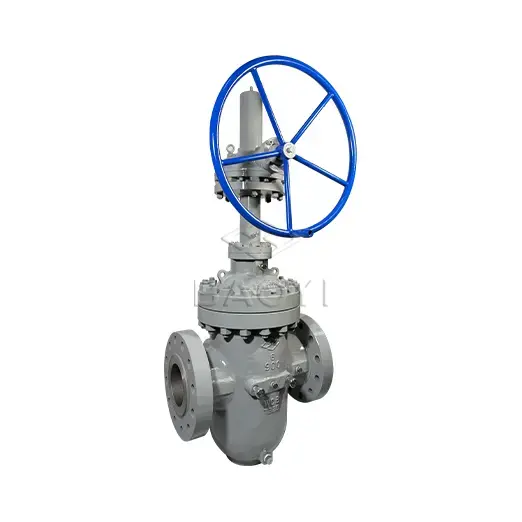

Baoyi Slab Gate Valve Product Line
Technical Specifications
| Model | Size Range | Pressure Class | Connection Type | Actuation |
|---|---|---|---|---|
| BY-SG100 | 2"-12" | 150#-900# | RF Flange | Manual |
| BY-SG200 | 14"-24" | 150#-1500# | RTJ Flange | Gear |
| BY-SG300 | 26"-48" | 900#-2500# | BW End | Hydraulic |
Advanced Features
✔ Double-block-and-bleed capability
✔ Cavitation-resistant trim designs
✔ Anti-static device per API 6D
✔ Stem injection grease system
✔ Emergency sealant injection
Application-Specific Selection Guide
By Industry Application
| Industry | Recommended Model | Critical Features |
|---|---|---|
| Crude Oil Pipelines | BY-SG200 | Abrasion-resistant trim |
| Natural Gas | BY-SG100 | Fire-safe, low emission |
| Refining | BY-SG300 | High-temperature design |
| Petrochemical | BY-SG200 | Corrosion-resistant alloys |
Fluid Service Considerations
✔ Abrasive fluids: Hard-faced seats & gates
✔ Cryogenic service: Extended bonnet design
✔ Sour gas: NACE MR0175 compliant materials
Installation & Maintenance Best Practices
Installation Guidelines
-
Flow direction: Install per body arrow marking
-
Pipe alignment: Avoid mechanical stress on valve
-
Support requirements: Follow API 6D spacing
-
Actuator orientation: Per manufacturer specs
Maintenance Schedule
| Interval | Task | Recommended Materials |
|---|---|---|
| Monthly | Stem lubrication | High-temp grease |
| Quarterly | Sealant injection | Valve sealant |
| Annually | Full function test | Torque measurement |
| 5 Years | Pressure testing | Hydrotest equipment |
FAQ: Slab Gate Valve Selection
Q: How to choose between through-conduit and slab gate valve designs?
A: Key comparison factors:
| Factor | Slab Gate Valve | Through-Conduit |
|---|---|---|
| Sealing | Double isolation | Single sealing |
| Maintenance | In-line repairable | Full removal |
| Weight | 20-30% lighter | Heavier |
| Cost | Higher initial | Lower |
| Best For | Pigging pipelines | General service |
Baoyi recommends:
-
Slab gate valves for piggable pipelines
-
Through-conduit for general service applications
Why Choose Baoyi Slab Gate Valves?
✔ Forged body construction for maximum integrity
✔ Precision-machined sealing surfaces
✔ 100% factory tested to API standards
✔ 15-year design life in standard service
✔ Global certifications (API 6D, PED, GOST)
