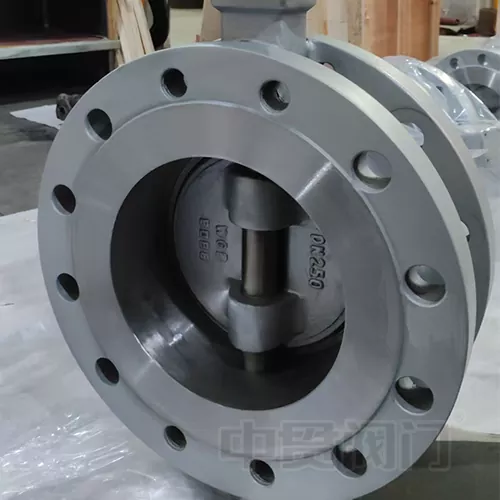

Is the WCB Triple Eccentric Flange Butterfly Valve the Ultimate Solution for Your Demanding Industrial Applications?

For over two decades in the valve industry, one question consistently arises: how can we achieve superior shut-off in high-pressure, high-temperature systems while minimizing maintenance and lifetime cost? The answer, increasingly, lies in a sophisticated piece of engineering: the WCB Triple Eccentric Flange Butterfly Valve. This isn't your standard butterfly valve; it's a precision-engineered solution designed to outperform traditional gate and ball valves in the most challenging conditions. If you're dealing with steam, corrosive chemicals, or other critical media, understanding this valve's capabilities is essential.

Zhejiang Zhongguan Valve Manufacture Co., Ltd. has been at the forefront of manufacturing these high-performance valves, combining robust materials with impeccable design to ensure unmatched reliability.

Why the Triple Eccentric Design is a Game-Changer

The "Triple Eccentric" design is the heart of this valve's superiority. Let's break down what this means:

1. First Eccentric (Axis Offset): The shaft is positioned behind the centerline of the valve seat. This allows the disc to lift away from the seat immediately upon opening, eliminating scraping and wear.

2. Second Eccentric (Shaft Offset): The shaft is also offset from the centerline of the pipe. This creates a cam action during operation, further ensuring no friction occurs between the disc and seat until the final moment of closure.

3. Third Eccentric (Angled Seat): The seat surface is conically angled relative to the pipe centerline. This geometric principle ensures a tight, uniform sealing surface.

The cumulative effect of these three eccentricities is a valve that provides bubble-tight sealing with minimal operational torque and virtually zero wear. Unlike resilient-seated butterfly valves, the metal-to-metal seat of the triple eccentric design allows it to withstand extreme temperatures and pressures.

Where Engineering Meets Excellence?

To appreciate the capability of the WCB Triple Eccentric Flange Butterfly Valve, let's examine its key specifications. The following list and table outline the critical parameters that define its performance envelope.

Key Features & Benefits:

• Bubble-Tight Sealing: Achieves zero leakage, meeting international standards like API 609, ensuring safety and environmental protection.

• Low Operating Torque: The eccentric design reduces operating torque by up to 40% compared to gate valves, allowing for smaller, more cost-effective actuators.

• High-Temperature and Pressure Resistance: Ideal for superheated steam, thermal oil, and other high-energy fluids.

• Exceptional Corrosion Resistance: The WCB body material provides excellent resistance against a wide range of corrosive media.

• Bi-Directional Flow Capability: Designed to seal effectively regardless of flow direction, adding to installation flexibility.

• Long Service Life & Minimal Maintenance: The non-rubbing design during operation prevents seat and disc wear, drastically reducing maintenance costs over the valve's lifetime.

Technical Specification Table

WCB Triple Eccentric Flange Butterfly Valve FAQ Common Problem

Q1: How does the WCB Triple Eccentric Butterfly Valve achieve a bubble-tight seal, and how does it compare to a gate valve?

A1: The bubble-tight seal is achieved through its unique triple eccentric geometry. As the valve closes, the disc wedges seamlessly into the conical seat without any sliding friction. This creates a uniform, high-integrity metal-to-metal seal. In contrast, a gate valve relies on a perpendicular sliding motion of a gate against two stationary seats, which can cause wear and galling over time, leading to leakage. The triple eccentric valve's non-rubbing action guarantees a longer-lasting, more reliable seal, especially in high-cycle applications, making it a superior modern alternative to traditional gate valves.

Q2: What are the primary applications where this valve type excels, and where should it not be used?

A2: The WCB Triple Eccentric Flange Butterfly Valve excels in demanding applications such as:

• Power Generation: Main steam lines, turbine bypass, feedwater systems.

• Oil & Gas: Refinery process lines, hydrocarbon transmission, offshore platforms.

• Chemical & Petrochemical: Handling corrosive and abrasive media at high temperatures.

• Marine & Shipbuilding: Seawater cooling, fire-fighting, and ballast systems.

It is generally not recommended for applications involving slurries or fluids with high concentrations of solid particles. The abrasive nature of such media can damage the precise sealing surfaces of the disc and seat. For these services, a specialized knife gate valve or a lined valve would be more appropriate.

Q3: What maintenance is required for these valves, and what is their expected service life?

A3: The maintenance requirements are exceptionally low due to the non-contact design during operation. Routine maintenance typically involves:

• Periodic visual inspection for external corrosion or damage.

• Checking the operation of the actuator or gear operator for smooth functioning.

• Occasionally lubricating the stem bearings (if applicable).

The service life is significantly longer than that of conventional valves, often exceeding 20 years with proper application and minimal upkeep. The robust construction, especially from a reputable manufacturer like Zhejiang Zhongguan Valve Manufacture Co., Ltd., ensures that the valve can withstand years of continuous operation without degradation in performance. The key to longevity is selecting the correct valve with the right materials of construction for your specific service conditions from the outset.

Conclusion

The WCB Triple Eccentric Flange Butterfly Valve represents a pinnacle of valve technology, offering unparalleled sealing, durability, and cost-efficiency for critical industrial processes. It is more than just a component; it is an investment in the safety, reliability, and profitability of your operations.

When your project demands a valve that won't compromise, you need a partner with the expertise and manufacturing excellence to deliver. For over two decades, Zhejiang Zhongguan Valve Manufacture Co., Ltd. has specialized in producing high-quality valves that meet the most stringent international standards. Our commitment to quality control, customer service, and technical support ensures that you receive not just a product, but a solution tailored to your needs.

Contact Zhejiang Zhongguan Valve Manufacture Co., Ltd. today to discuss your specific requirements. Let our experienced team help you select the perfect WCB Triple Eccentric Flange Butterfly Valve to optimize your system's performance and longevity.
