How to Troubleshoot a Stuck or Leaking Slab Gate Valve in the Field

A Slab Gate Valve is a critical component for isolation in demanding pipeline services. When one becomes stuck or starts leaking in the field, it can cause significant downtime and safety concerns. As a leading manufacturer, Baoyi designs valves for reliability, but understanding field troubleshooting is essential for maintenance teams. This guide provides a systematic approach to resolving these common issues.

Systematic Troubleshooting Steps

Begin by ensuring the system is safely depressurized and isolated before any intervention. Follow this logical sequence:

1. For a Stuck Valve:

   • Check Actuator/Operator: Verify hydraulic pressure, pneumatic supply, or electrical power to the actuator. Manually override if possible.

   • Apply Penetrating Lubricant: Apply a high-quality lubricant to the stem threads and yoke area. Allow it to soak in and attempt gradual operation.

   • Assess Thermal Binding: In high-temperature services, thermal expansion can cause sticking. Allow the system to cool to ambient temperature if process conditions permit.

   • Investigate Internal Obstruction: Foreign material or scale may jam the slab gate. Consider minor cycling or, as a last resort, partial disassembly for inspection.

2. For a Leaking Valve:

   • Identify Leak Source: Determine if the leak is from the stem seals (external) or past the gate (internal).

   • Stem Packing Leak: Gently tighten the gland follower bolts in a cross pattern. If leaking persists, the packing may need replacement.

   • Internal Seat Leak: Slight movement of the gate can sometimes dislodge debris and reseat it. If leakage continues, the seat or gate sealing surface may be damaged and require servicing.

Key Baoyi Design Features for Reliability

Baoyi Slab Gate Valves incorporate specific features to minimize these field issues, ensuring longer service life and easier maintenance.

• Hardened Seats & Gates: Our valves use surface-hardened or overlay-welded seats and gates for superior erosion and galling resistance.

• Advanced Stem Packing: Multi-ring chevron packing sets with anti-extrusion rings are standard, providing a robust seal.

• Rugged Yoke Design: The engineered yoke structure ensures perfect alignment, reducing stem binding under load.

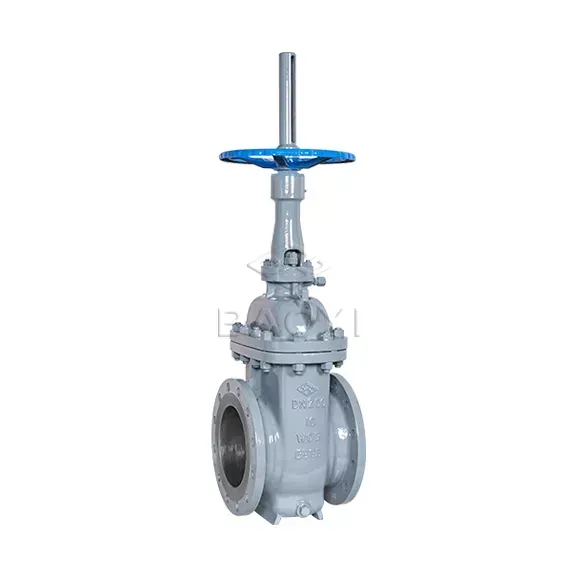

Baoyi Slab Gate Valve: Key Performance Parameters

Slab Gate Valve FAQ

Q: Can a slab gate valve be used for throttling or flow control?
A: No. Slab Gate Valves are designed strictly for full open or full shut isolation. Using them for throttling will cause rapid erosion of the seat and gate surfaces, leading to premature failure and leakage.

Q: What is the main advantage of a slab gate design over other gate valves?
A: The primary advantage is a self-cleaning, through-conduit flow path. In the open position, the single slab gate retracts fully into the bonnet, creating a smooth, unobstructed bore that minimizes pressure drop and prevents debris buildup.

Q: How often should the stem packing on a slab gate valve be maintained?
A: There is no fixed schedule. Maintenance should be performance-based. If routine visual inspection reveals minor weeping at the stem, the gland can be adjusted. Full packing replacement is needed if tightening does not stop a persistent leak. Baoyi valves use durable packing materials to extend service intervals.
