Introduction to Wedge Gate Valves
Wedge gate valves are essential flow control devices designed for complete shut-off in high-pressure piping systems. At Baoyi, we engineer industrial-grade wedge gate valves that meet the most demanding applications in oil & gas, water treatment, and power generation. This comprehensive guide provides professional selection criteria and technical specifications for optimal valve performance.
https://www.baoyiglobal.com/wedge-gate-valve
Key Selection Factors for Wedge Gate Valves
1. Valve Design Parameters
| Parameter | Importance | Baoyi Standards |
|---|---|---|
| Pressure Class | Must exceed system requirements | 150#-2500# |
| Bore Type | Full port for minimal pressure drop | API 600 compliant |
| Wedge Design | Flexible, solid, or split wedge options | 3 types available |
| Stem Type | Rising vs. non-rising | OS&Y or NRS |
2. Material Specifications
| Component | Standard Material | Optional Upgrades |
|---|---|---|
| Body | WCB, LCB | CF8M, Duplex |
| Wedge | ASTM A216 Gr.WCB | 13Cr, Stellite |
| Seat | 13% Cr | 316SS, PTFE |
| Stem | 410 SS | 17-4PH, Monel |
3. Performance Characteristics
✔ Temperature range: -29°C to 425°C (standard)
✔ Leakage class: ANSI B16.104 Class VI
✔ Operation torque: 30-800 Nm (size dependent)
✔ Cycle life: 10,000+ operations

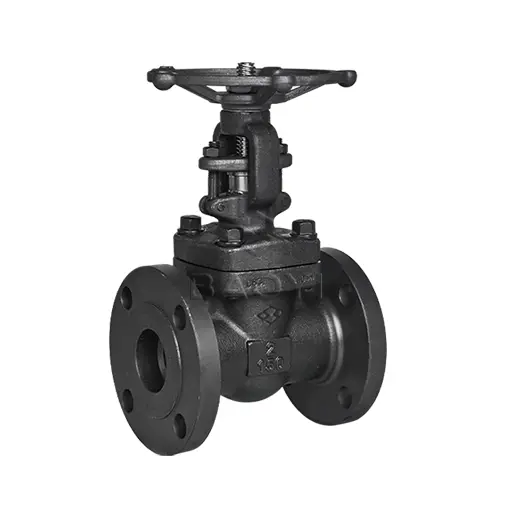

Baoyi Wedge Gate Valve Product Line
Technical Specifications
| Model | Size Range | Pressure Rating | Connection Type | Actuation |
|---|---|---|---|---|
| BY-WG100 | 2"-24" | 150#-900# | Flanged | Manual |
| BY-WG200 | 3"-36" | 150#-1500# | Butt Weld | Gear |
| BY-WG300 | 4"-48" | 900#-2500# | Socket Weld | Pneumatic |
Special Features
✔ Fire-safe design (API 607 certified)
✔ Cryogenic version (-196°C)
✔ Anti-blowout stem
✔ Double block & bleed option
✔ Position indicators
Application-Specific Selection Guide
By Industry
| Industry | Recommended Model | Critical Features |
|---|---|---|
| Oil & Gas | BY-WG200 | API 6D, Full Port |
| Water Treatment | BY-WG100 | EP Coating |
| Power Generation | BY-WG300 | High-Temp Trim |
Fluid Compatibility
✔ Water: Standard WCB body
✔ Corrosives: CF8M/CF8 body
✔ Abrasive Slurries: Hard-faced trim
Installation & Maintenance
Best Practices
-
Flow direction: Always install per arrow marking
-
Pipe alignment: Avoid strain on valve body
-
Lubrication: Apply high-temp grease to stem
-
Operation: Fully open/close to prevent seat erosion
Maintenance Schedule
| Interval | Task | Recommended Materials |
|---|---|---|
| Monthly | Stem lubrication | Molykote 111 |
| Quarterly | Packing adjustment | Graphite packing |
| Annually | Seat inspection | Lapping compound |
FAQ: Wedge Gate Valve Selection
Q: How to choose between flexible and solid wedge designs?
A: Consider these factors:
| Factor | Flexible Wedge | Solid Wedge |
|---|---|---|
| Thermal Variation | Better compensation | Rigid |
| Sealing Performance | Excellent | Good |
| Cost | Higher | Lower |
| Best For | Steam, hot oil | Water, gas |
Baoyi recommends:
-
Flexible wedge for temperature >200°C
-
Solid wedge for high-pressure gas
-
Split wedge for slurry applications
