How to Select the Right Gate Valve for Your Application
2025-08-15
Selecting the proper gate valve is critical for ensuring optimal performance, safety, and longevity in your piping system. This comprehensive guide from Zhongguan covers essential selection criteria, technical specifications, and application considerations for gate valves across industries. We'll examine valve types, material compatibility, pressure ratings, and operational requirements to help you make informed decisions for your specific needs.
1. Understanding Gate Valve Types and Their Applications
Gate valves are available in several designs, each suited for particular operating conditions:
Rising Stem vs. Non-Rising Stem
-
Rising stem (OS&Y): Visual position indication, ideal for above-ground installations
-

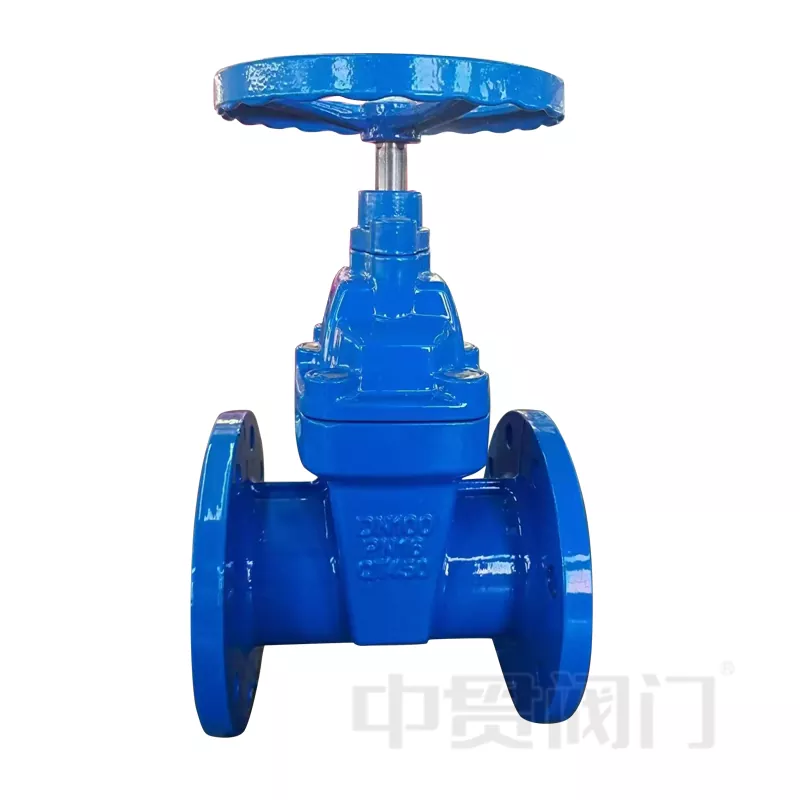

Non-rising stem (NRS): Space-saving design for confined areas
Wedge Types
| Wedge Design | Best For | Temperature Range | Pressure Rating |
|---|---|---|---|
| Solid Wedge | General service | -29°C to 425°C | 150#-2500# |
| Flexible Wedge | Thermal variation | -46°C to 650°C | 150#-1500# |
| Split Wedge | Slurry service | -29°C to 350°C | 150#-900# |
Specialty Valves
-
Knife gate valves for viscous media
-
Pressure seal valves for high-pressure steam
-
Cryogenic valves for LNG applications
2. Material Selection and Technical Specifications
Choosing appropriate materials ensures compatibility with your media and environment:
Body Materials
-
Cast Iron (ASTM A126): Water, air, gas (non-corrosive)
-
Carbon Steel (A216 WCB): Steam, oil, general service
-
Stainless Steel (CF8/CF8M): Corrosive fluids, chemicals
-
Alloy Steel (WC6/WC9): High-temperature steam
Zhongguan Product Specifications
| Model | Size Range | Pressure Class | Body Material | Stem Material | Seat Material |
|---|---|---|---|---|---|
| ZG-GV100 | 2"-24" | 150#-900# | WCB | 410 SS | 13% Cr |
| ZG-GV200 | 3"-36" | 150#-2500# | CF8M | 17-4PH | Stellite 6 |
| ZG-GV300 | 1/2"-12" | 800#-4500# | WC6 | Monel | Tungsten Carbide |
3. Key Selection Criteria for Different Industries
Oil & Gas Applications
-
API 600 compliant designs
-
Full port, fire-safe construction
-
Anti-static device per API 6D
-
Preferred: ZG-GV200 series with flexible wedge
Water Treatment Plants
-
Resilient seated designs
-
Epoxy-coated internals
-
Non-rising stem for buried service
-
Preferred: ZG-GV100 series with solid wedge
Power Generation
-
High-temperature alloys
-
Pressure seal bonnet
-
Extended bonnet for cryogenic
-
Preferred: ZG-GV300 series with split wedge
Chemical Processing
-
Corrosion-resistant materials
-
PTFE seats for chemical compatibility
-
Bellows seal stem
-
Preferred: ZG-GV200 series with CF8M body
4. Installation and Maintenance Best Practices
Installation Guidelines
✔ Proper alignment with piping (avoid stress)
✔ Adequate support for large valves
✔ Correct gasket selection
✔ Flow direction per manufacturer marking
✔ Accessibility for operation/maintenance
Maintenance Schedule
| Task | Frequency | Procedure |
|---|---|---|
| Operational Test | Quarterly | Full open/close cycle |
| Packing Adjustment | Annually | Torque to spec |
| Lubrication | Semi-annually | High-temp grease |
| Full Inspection | Every 5 years | Disassemble, lap seats |
Troubleshooting Common Issues
-
Leakage: Tighten bonnet bolts or repack stem
-
Stiff Operation: Lubricate stem, check alignment
-
Seat Damage: Lap or replace seating surfaces
-
Corrosion: Upgrade material specification
For expert guidance in selecting the perfect gate valve for your application, contact our engineering team today. With 25 years of valve manufacturing expertise, I guarantee Zhongguan provides reliable, high-performance solutions tailored to your specific requirements.
