How to Replace a Fully Automatic Washing Machine Solenoid Valve Step by Step
2026-09-29
A faulty Fully Automatic Washing Machine Solenoid Valve is one of the most common reasons a washer stops filling, overflows, or leaks during a cycle. At LIHE, we have manufactured and tested thousands of inlet valves for residential and commercial washers, and we know that a correct replacement depends on matching the valve to your machine's voltage, port configuration, and water pressure rating. This guide walks you through the entire replacement process, from diagnosis to final leak test.
Why the Solenoid Valve Matters

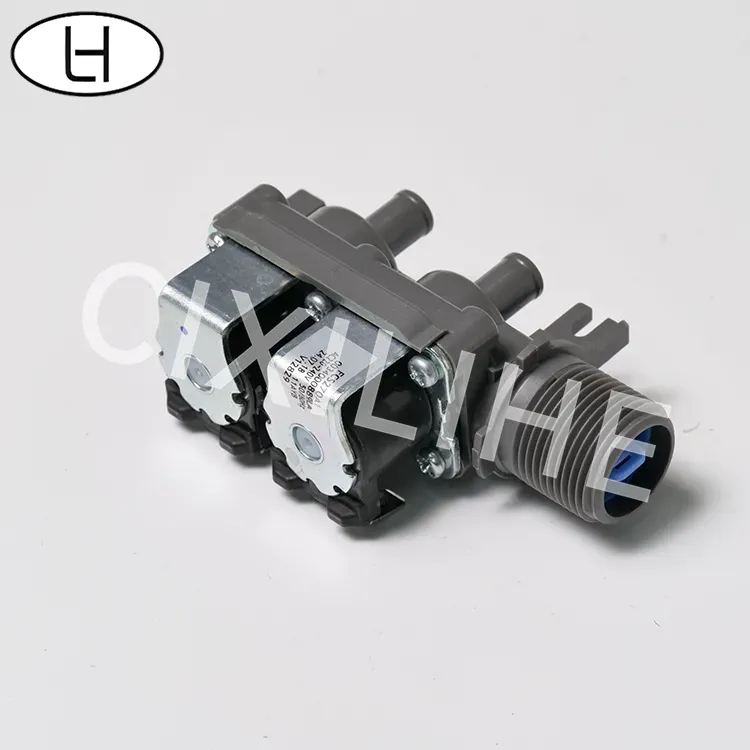

The Fully Automatic Washing Machine Solenoid Valve controls water entry into the drum. When the control board sends voltage, the coil energizes, the plunger lifts, and water flows through the inlet ports. A weak coil, mineral buildup, or torn diaphragm will interrupt this sequence.
| Symptom | Likely Cause | Recommended Action |
|---|---|---|
| No water entering drum | Burned coil or no voltage | Test coil resistance, check harness |
| Slow fill | Clogged inlet screen | Clean or replace screen |
| Water keeps running | Stuck plunger or debris | Replace LIHE valve |
| Leak at valve body | Cracked housing or worn seal | Install new valve |
Tools and Parts You Will Need
-
New LIHE Fully Automatic Washing Machine Solenoid Valve matched to your model
-
Phillips and flathead screwdrivers
-
Adjustable pliers or hose clamp pliers
-
Multimeter
-
Towels and a shallow pan
-
PTFE tape (if threaded fittings are used)
Step-by-Step Replacement
Step 1 — Disconnect Power and Water
Unplug the washer and close both hot and cold supply valves. Pull the machine away from the wall to access the rear panel.
Step 2 — Remove the Inlet Hoses
Place a towel and pan under the hoses. Unscrew the hot and cold hoses from the old Fully Automatic Washing Machine Solenoid Valve. Expect residual water.
Step 3 — Access the Valve
Remove the rear access panel or top lid, depending on your model. The valve is usually mounted on the back frame near the water inlet.
Step 4 — Photograph the Wiring
Before removing any wires, take a photo of the harness orientation. Label each connector if multiple coils are present. This prevents miswiring the new LIHE valve.
Step 5 — Test the Old Valve (Optional but Recommended)
Set your multimeter to ohms. A healthy coil typically reads between 500 and 1,500 ohms. An open or infinite reading confirms coil failure.
Step 6 — Remove the Old Valve
Unscrew the mounting screws and detach the outlet hose from the valve to the dispenser. Pull the valve free.
Step 7 — Install the New LIHE Valve
Position the new Fully Automatic Washing Machine Solenoid Valve onto the mounting bracket. Reconnect the outlet hose and secure the screws. Reattach the wire harness exactly as photographed.
Step 8 — Reconnect Hoses and Test
Reconnect hot and cold hoses. Open supply valves slowly. Plug in the washer and run a short fill cycle. Check every connection for drips.
| Checkpoint | Acceptable Result | If It Fails |
|---|---|---|
| Coil resistance | 500–1,500 ohms | Replace valve |
| Fill time | Matches model spec | Inspect screen |
| Leak test | No drips after 5 minutes | Tighten or reseat |
Frequently Asked Questions
How do I know if my Fully Automatic Washing Machine Solenoid Valve is bad? A bad Fully Automatic Washing Machine Solenoid Valve usually shows no water entry, a humming sound without filling, intermittent filling, or water continuing to run after the cycle stops; confirming with a multimeter resistance test and a voltage check at the harness gives a definitive answer.
Can I replace a Fully Automatic Washing Machine Solenoid Valve myself? Yes, replacing a Fully Automatic Washing Machine Solenoid Valve is a straightforward repair for most homeowners because it requires only basic hand tools, a multimeter, and careful attention to hose and wire placement, though you must always disconnect power and water first.
Are LIHE Fully Automatic Washing Machine Solenoid Valves compatible with major washer brands? LIHE produces Fully Automatic Washing Machine Solenoid Valves in multiple port counts, voltage ratings, and mounting configurations, so compatibility depends on matching your model number, coil voltage, and inlet port layout; our technical team can confirm the correct part before you order.
Contact Us
Need the right Fully Automatic Washing Machine Solenoid Valve for your washer model? Contact LIHE today for specifications, bulk pricing, and technical support. Our engineers will help you match the exact valve, confirm voltage and port configuration, and ship quickly so your repair is finished right the first time.
