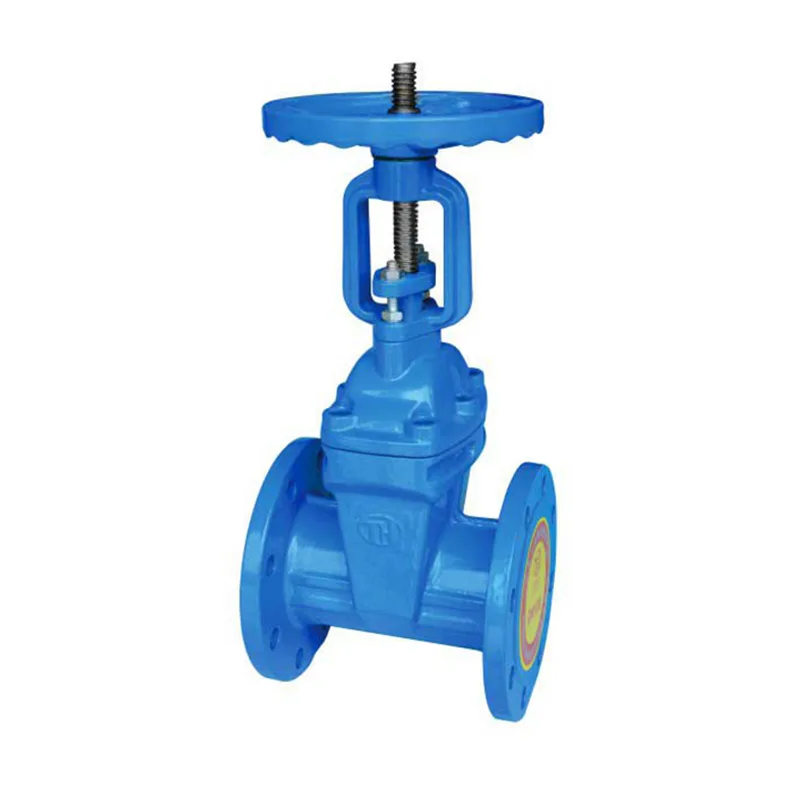

How Does the Material Composition Affect the Performance of a Rising Stem Flange Gate Valve

Selecting the right Rising Stem Flange Gate Valve is critical for ensuring operational safety and efficiency in industrial piping systems. At Tianhong, we understand that the longevity and reliability of these valves are determined almost entirely by their material composition. The choice of materials directly impacts the valve's resistance to corrosion, pressure tolerance, and overall mechanical strength.

The Role of Materials in Valve Integrity

The body, stem, seat, and disc of a Rising Stem Flange Gate Valve must withstand specific environmental stresses. Using the incorrect material can lead to premature failure, leaks, or even catastrophic system damage.

Below is a comparison of common materials used in valve construction and their typical applications:

Key Performance Factors Influenced by Material

The material composition of your Rising Stem Flange Gate Valve dictates how it will perform under pressure.

• Pressure and Temperature Tolerance: Carbon steel retains structural integrity at high temperatures, making it suitable for steam lines. In contrast, ductile iron is better suited for ambient temperature water applications.

• Corrosion Resistance: Stainless steel grades (such as 304 or 316) contain chromium that forms a protective layer against oxidation and corrosive media. For harsh chemical environments, this is non-negotiable.

• Sealing Capability: The interface between the gate and the seat often utilizes different materials or hard-facing to ensure a bubble-tight seal, preventing fugitive emissions.

• Stem Strength: The stem, which rises to indicate valve position, must resist bending and galling. Hardened stainless steel is often used to ensure smooth operation over time.

Frequently Asked Questions

What is the best material for a Rising Stem Flange Gate Valve in a high-temperature steam application?
For high-temperature steam, a Rising Stem Flange Gate Valve constructed from forged or cast carbon steel (like WCB or WCC) is typically the industry standard. Carbon steel maintains its mechanical properties under extreme heat and thermal cycling better than materials like ductile iron or bronze. For very high-temperature applications above 800°F, alloy steels may be required to prevent creep and maintain structural integrity.

How does material composition prevent corrosion in a Rising Stem Flange Gate Valve?
Corrosion prevention is achieved by matching the valve material to the fluid media. For example, if the media is seawater or a corrosive chemical, a Rising Stem Flange Gate Valve made from Stainless Steel 316 offers molybdenum, which provides enhanced resistance to chlorides and acids. For less aggressive media like fresh water, an epoxy-coated ductile iron valve provides sufficient corrosion resistance at a lower cost.

Can the material of the seat and disc be different from the body of the Rising Stem Flange Gate Valve?
Yes, it is common practice to use different materials for the seat and disc. This is often done to improve sealing performance and extend the life of the valve. For instance, a carbon steel body valve may feature a stainless steel or stellite-faced seat. This "overlay" or "hard-facing" technique provides a harder, more corrosion-resistant sealing surface without the expense of making the entire valve from a high-grade alloy.

Why Partner with Tianhong for Your Valve Needs

Ensuring you select the right material for your specific operating conditions is vital. Tianhong provides high-quality valves engineered to meet rigorous international standards. Our expertise helps clients avoid costly downtime by matching the exact material composition to the demands of their application.

Contact us today to discuss your project requirements and let our team help you select the perfect Rising Stem Flange Gate Valve for your system.
