How Does the Gear Ratio of a Bevel Gear Mechanism Influence the Throttling Capability of a Low Temperature Globe Valve
2026-04-13

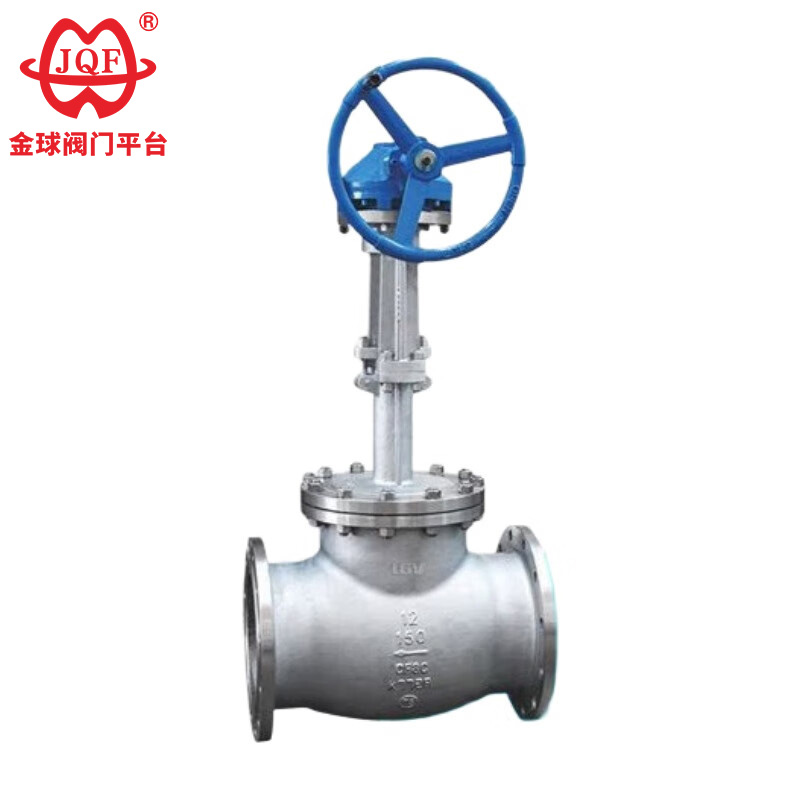

In cryogenic fluid control systems, the Bevel Gear Low Temperature Globe Valve is essential for safe and precise operation. Among its many design parameters, the gear ratio of the bevel gear mechanism plays a decisive role in throttling capability. A well-matched gear ratio allows operators to modulate flow with fine resolution, while an incorrect ratio can lead to poor control or valve damage. At JQF, we engineer these valves to balance mechanical advantage and throttling precision for demanding low-temperature applications.
Understanding the Bevel Gear Mechanism in Throttling Service
A bevel gear mechanism converts rotational input from a handwheel or actuator into vertical stem movement. The gear ratio determines how many handwheel turns are required to move the disc a given distance. This directly affects throttling control.
| Gear Ratio | Handwheel Turns per mm of Stem Travel | Throttling Precision | Operator Fatigue |
|---|---|---|---|
| Low (e.g., 10:1) | Fewer turns | Low (coarse control) | Lower |
| Medium (e.g., 30:1) | Moderate turns | Good | Moderate |
| High (e.g., 60:1) | Many turns | High (fine control) | Higher |
For a Bevel Gear Low Temperature Globe Valve, high ratios are preferred in cryogenic throttling services where small flow changes cause significant temperature shifts. However, excessive ratios slow response time, which can be hazardous in emergency isolation scenarios.
How Gear Ratio Affects Key Throttling Parameters
-
Resolution: Higher gear ratios increase the number of handwheel turns per unit disc lift, allowing finer adjustments. A JQF valve with a 50:1 ratio achieves twice the throttling resolution of a 25:1 design.
-
Torque Output: Higher ratios multiply input torque, making it easier to overcome ice formation or stem friction at -196°C. This is critical for consistent modulation.
-
Speed of Operation: Lower ratios allow faster full travel but sacrifice precision. For continuous throttling, JQF recommends ratios between 40:1 and 60:1 depending on line size.
Frequently Asked Questions about Bevel Gear Low Temperature Globe Valve Throttling
Q1: What is the ideal gear ratio for throttling cryogenic gases like LNG?
A1: For LNG and similar cryogenic gases, JQF typically recommends a gear ratio between 45:1 and 55:1 for nominal bore sizes 2 to 8 inches. This range provides sufficient torque multiplication to overcome low-temperature friction while maintaining fine enough resolution to prevent overfeeding or pressure spikes. For larger valves above 10 inches, ratios up to 80:1 may be required due to higher stem thrust needs.
Q2: Can a Bevel Gear Low Temperature Globe Valve with a high gear ratio be used for on-off service as well?
A2: Yes, but with trade-offs. A high-ratio (60:1 or more) valve can be used for on-off service, but the operator must rotate the handwheel many more times to fully open or close the valve. This delays emergency response. JQF offers dual-purpose valves with declutchable bevel gear mechanisms, allowing operators to disengage the high ratio for rapid on-off action and re-engage for precision throttling.
Q3: How does extreme cold affect the effective gear ratio of a bevel gear mechanism?
A3: Low temperatures cause contraction of gear materials and thickening of lubricants, which increases frictional resistance. This effectively makes the valve feel like it has a lower mechanical advantage—i.e., a 50:1 ratio may feel like 40:1 under cryogenic conditions. JQF counters this by using stainless steel gears with cryogenic-compatible lubrication and oversized bearing surfaces, ensuring that the nominal gear ratio is maintained even at -196°C.
Practical Recommendation from JQF
Selecting the correct gear ratio requires analyzing process conditions, required flow coefficient (Cv), and actuator type. Below is a simplified selection guide for Bevel Gear Low Temperature Globe Valve throttling applications:
| Application | Recommended Gear Ratio | Typical Valve Size | Key Consideration |
|---|---|---|---|
| LNG truck loading | 40:1 to 50:1 | 3 to 6 inches | Moderate speed and precision |
| Cryogenic storage tank blanketing | 55:1 to 65:1 | 2 to 4 inches | Very fine pressure control |
| Liquid nitrogen transfer | 45:1 to 55:1 | 4 to 8 inches | Balance torque and speed |
| Emergency shutdown with throttling | 30:1 with declutch | 6 to 12 inches | Fast closure capability |
Conclusion
The gear ratio of a bevel gear mechanism is not a secondary feature—it is a primary determinant of how well a Bevel Gear Low Temperature Globe Valve can throttle cryogenic fluids. Too low a ratio sacrifices control; too high a ratio reduces response speed. JQF designs each valve with application-specific gear ratios and offers custom solutions for challenging low-temperature duties.
Contact us today at JQF to discuss your cryogenic valve requirements. Our engineering team will help you select the optimal gear ratio and valve configuration for safe, precise throttling control in the harshest low-temperature environments.
