How Does Spring Assisted Single Disc Check Valve Performance Compare to Gravity Based Designs
2026-04-07

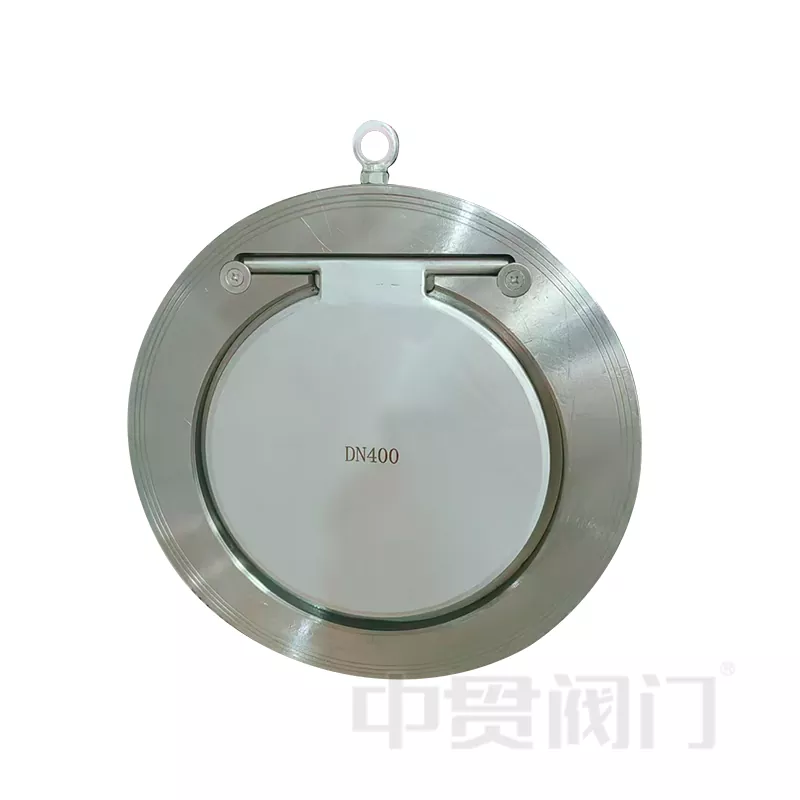

When selecting a Single Disc Check Valve for industrial fluid systems, engineers often face a critical choice between spring assisted and gravity based designs. Zhongguan, a trusted manufacturer in flow control solutions, provides both configurations to meet diverse operational demands. Understanding how these two types perform under real conditions directly impacts system reliability, maintenance costs, and energy efficiency.
Performance Comparison: Spring Assisted vs Gravity Based Single Disc Check Valve
| Feature | Spring Assisted Single Disc Check Valve | Gravity Based Single Disc Check Valve |
|---|---|---|
| Closing mechanism | Spring force pushes disc closed immediately | Disc returns by gravity when flow stops |
| Response time | 0.1–0.3 seconds | 0.5–1.0 seconds |
| Minimum upstream pressure required | Very low (0.5–1 psi) | Moderate (2–5 psi) |
| Vertical installation | Fully functional | Not recommended |
| Horizontal installation | Fully functional | Functional with proper orientation |
| Water hammer reduction | Excellent | Moderate to poor |
| Susceptibility to debris | Moderate | Low |
Key Performance Advantages of Spring Assisted Designs
The spring assisted Single Disc Check Valve from Zhongguan delivers superior performance in applications requiring rapid closure. The spring mechanism ensures the disc begins closing the instant forward flow decelerates, often preventing reverse flow before it fully develops. This characteristic proves invaluable in systems with reciprocating pumps or rapidly closing downstream valves.
Gravity based Single Disc Check Valve designs rely solely on the weight of the disc and the angle of installation. While simpler and more tolerant of dirty fluids, they require consistent upstream pressure to remain fully open. Any pressure fluctuation below the disc's lifting threshold causes partial closure, leading to disc flutter and accelerated wear.
Three Critical Scenarios Where Spring Assistance Excels
-
Vertical piping systems – Gravity based designs cannot close reliably in vertical flow-up configurations. The Zhongguan spring assisted Single Disc Check Valve operates flawlessly in any orientation.
-
Low flow velocity applications – Gravity designs may never fully open. Spring assistance ensures complete opening at lower velocities.
-
Pulsating flow systems – Without spring assistance, the disc chatters against the seat, causing premature failure.
Single Disc Check Valve FAQ
Q1: Can a gravity based Single Disc Check Valve be used in vertical pipelines with upward flow?
A1: No. A gravity based Single Disc Check Valve relies on gravitational force to return the disc to the closed position. In vertical upward flow, the disc would fall back by gravity while forward flow is still trying to push it open, causing immediate chattering and reverse flow the moment pressure drops. For vertical installations, Zhongguan strongly recommends a spring assisted Single Disc Check Valve, which uses mechanical spring force independent of orientation to close the disc reliably.
Q2: Which design offers longer service life in clean water applications with steady flow?
A2: A gravity based Single Disc Check Valve typically provides longer service life in clean, steady-flow water applications. The absence of a spring eliminates spring fatigue as a failure mode. However, this advantage disappears in systems with flow pulsations, frequent pump cycling, or variable pressure conditions. In such demanding environments, Zhongguan spring assisted Single Disc Check Valve models demonstrate extended life because controlled disc motion prevents slamming and seat damage.
Q3: How does maintenance complexity differ between the two designs?
A3: The gravity based Single Disc Check Valve has simpler maintenance with fewer moving parts – typically just the disc, hinge, and seat. Zhongguan spring assisted Single Disc Check Valve requires periodic spring tension verification and replacement every 2–3 years depending on cycle frequency. However, the spring design allows in-line servicing without removing the valve body from the pipeline, while some gravity designs require complete disassembly. Zhongguan provides full maintenance documentation for both configurations.
Making the Right Choice for Your System
Select between spring assisted and gravity based Single Disc Check Valve designs by evaluating your specific operating conditions. Use spring assistance when dealing with vertical lines, low pressures, pulsating flows, or stringent water hammer prevention. Choose gravity based designs only for horizontal, steady-flow, clean fluid applications with consistent pressure above 5 psi.
