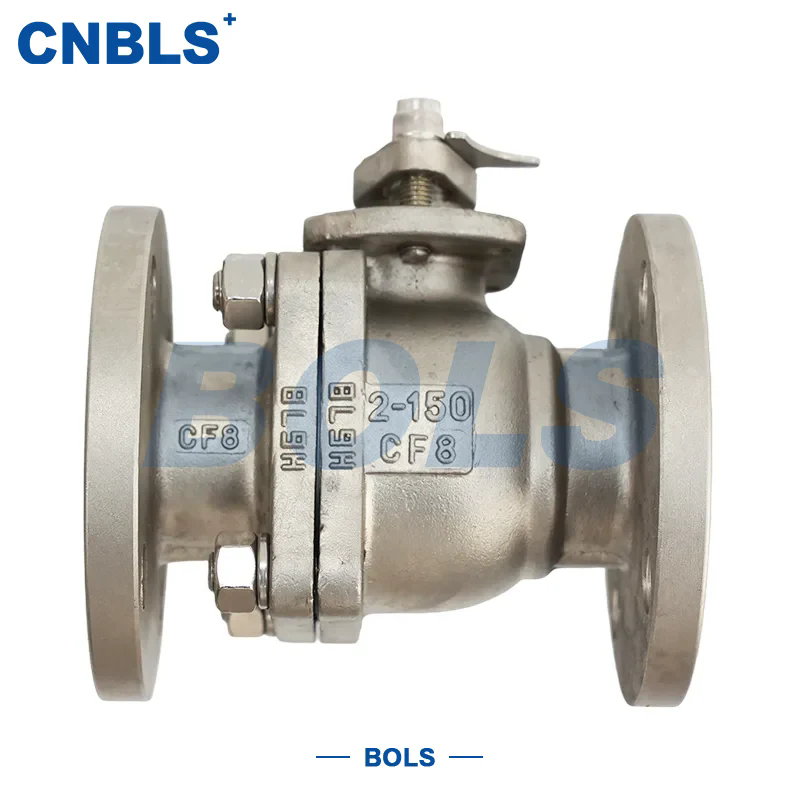

How Does Seat Material Affect the Temperature Limits of Stainless Steel Ball Valves?

2026-10-20

A piping engineer is specifying Stainless Steel Ball Valves for a thermal oil circuit operating at 180°C. The valve supplier offers a standard valve with PTFE seats. The engineer checks the PTFE temperature limit and finds that it is 200°C. The valve appears to be suitable. Six months later, the valve seat has softened and deformed. The valve cannot be closed tightly. The engineer investigates and discovers that the actual operating temperature at the valve seat is 210°C because of heat tracing and proximity to the pump. The PTFE seat has exceeded its limit. The engineer should have selected a valve with a higher-temperature seat material. This guide explains how seat material determines the true temperature limit of a stainless steel ball valve.

1. What Are the Temperature Limits of Common Seat Materials?

The seat is the soft component that creates the seal in a Stainless Steel Ball Valves. The seat material determines the maximum temperature at which the valve can operate reliably. The most common seat materials are PTFE, reinforced PTFE (RPTFE), PEEK, and metal. Each has a different temperature limit and a different set of trade-offs. The table below shows the temperature limits for these materials.

Seat material	Maximum continuous temperature	Maximum intermittent temperature	Pressure rating at max temperature
PTFE (virgin)	180°C	200°C	Derated to 60% of cold rating
RPTFE (15% glass fiber)	200°C	220°C	Derated to 70% of cold rating
PEEK	250°C	280°C	Derated to 85% of cold rating
Metal (Stellite or 316 SS)	500°C	550°C	Derated to 95% of cold rating

In our factory, we manufacture Stainless Steel Ball Valves with all four seat materials. The temperature limit is not the only factor. The pressure rating must also be derated at high temperature because the seat material loses strength. A PTFE seat that is rated for 40 bar at 20°C may only be rated for 24 bar at 180°C. Zhejiang Bolaisi Valve Co., Ltd. has been manufacturing stainless steel ball valves for over 15 years.

2. Why Does PTFE Fail Above Its Temperature Limit?

PTFE is a thermoplastic. When it is heated above its crystalline melting point (approximately 327°C), it loses its mechanical strength. But the practical limit is much lower because PTFE begins to soften and creep at 180°C to 200°C under pressure. Creep is the permanent deformation of the material under sustained load. In a ball valve, the seat is compressed between the ball and the body. At high temperature, the PTFE seat creeps, which reduces the contact stress and causes leakage. The table below shows the effect of temperature on PTFE seat compression set.

Temperature (°C)	Compression set after 1000 hours	Sealing performance	Recommended action
20	2 – 3%	Excellent	Standard application
100	5 – 8%	Good	Standard application
150	10 – 15%	Moderate	Monitor; consider RPTFE
180	20 – 30%	Poor	Use RPTFE or PEEK
200	40 – 50%	Failure	Use PEEK or metal seat

Piping engineer's note: The compression set is the percentage of the original thickness that is permanently lost after the load is removed. A compression set of 20 percent means that the seat has lost 20 percent of its thickness. The contact stress between the ball and the seat is reduced, and the valve may leak. In our factory, we recommend that PTFE seats not be used above 150°C for critical isolation service. For temperatures between 150°C and 200°C, we recommend RPTFE. For temperatures above 200°C, we recommend PEEK or a metal seat.

3. How Does PEEK Compare to PTFE at High Temperature?

PEEK (polyether ether ketone) is a semi-crystalline engineering thermoplastic. It has a higher melting point (343°C) and a higher glass transition temperature (143°C) than PTFE. It also has better creep resistance and a lower coefficient of thermal expansion. The table below compares the properties of PTFE, RPTFE, and PEEK at high temperature.

Property	PTFE	RPTFE	PEEK
Maximum continuous temperature	180°C	200°C	250°C
Compression set at 200°C (1000 h)	40 – 50%	25 – 35%	10 – 15%
Coefficient of thermal expansion (10⁻⁶/°C)	120	100	47
Pressure rating at 200°C (relative to 20°C)	50%	65%	85%

PEEK is more expensive than PTFE, but it provides a much higher temperature limit and better creep resistance. For thermal oil service at 180°C to 220°C, PEEK is the recommended seat material. For steam service above 250°C, a metal seat is required. In our factory, we manufacture Stainless Steel Ball Valves with PEEK seats for high-temperature thermal oil and steam applications. Zhejiang Bolaisi Valve Co., Ltd. provides temperature derating charts for each seat material.

4. What Other Components Are Affected by High Temperature?

The seat is the primary temperature-sensitive component, but it is not the only one. The stem packing, the O-rings, and the thrust washers are also affected by temperature. The table below shows the temperature limits for these components.

Component	Standard material	Maximum temperature	High-temperature alternative
Stem packing	PTFE	180°C	Graphite (500°C)
Body O-ring	Nitrile (NBR)	100°C	FKM (200°C) or PTFE
Thrust washer	PTFE	180°C	PEEK (250°C)
Anti-static device	Carbon-filled PTFE	180°C	Graphite

In our factory, we recommend that the entire valve be specified for the maximum operating temperature, not just the seat. A valve with a PEEK seat but a PTFE stem packing is still limited by the packing temperature. We provide a complete high-temperature configuration that includes a PEEK seat, graphite packing, FKM O-rings, and a PEEK thrust washer. This configuration is rated for continuous service at 250°C. Zhejiang Bolaisi Valve Co., Ltd. can supply this configuration for thermal oil, steam, and high-temperature chemical applications.

Frequently Asked Questions About Seat Material and Temperature Limits in Stainless Steel Ball Valves

Question 1: Can I use a standard PTFE-seated ball valve for steam service at 180°C?

Answer: A standard PTFE-seated Stainless Steel Ball Valves can be used for steam service at 180°C, but it is at the upper limit of the PTFE temperature range. The steam temperature at the valve seat may be higher than the bulk steam temperature because of superheat or because the valve is located near a heat source. We recommend using RPTFE or PEEK for steam service at 180°C to provide a safety margin. In our factory, we have seen PTFE seats fail in steam service at 180°C after 6 to 12 months. The failure mode is compression set, which causes leakage. For critical steam isolation, we recommend a PEEK seat or a metal seat. We can provide a temperature calculation for your specific steam conditions.

Question 2: What is the pressure derating for a PEEK seat at 250°C?

Answer: The pressure rating of a Stainless Steel Ball Valves with a PEEK seat is derated at high temperature because the PEEK loses some of its mechanical strength. The typical derating factor is 0.85 at 250°C. This means that a valve rated for 40 bar at 20°C is rated for 34 bar at 250°C. The exact derating factor depends on the valve size and the seat design. In our factory, we provide a pressure-temperature chart for each valve model. The chart shows the maximum allowable pressure at each temperature from -20°C to 250°C. We recommend that the system design pressure not exceed the derated rating. If the system pressure is higher, a larger valve or a metal seat should be used.

Question 3: Are metal-seated ball valves suitable for high-temperature service, and what are the trade-offs?

Answer: Metal-seated Stainless Steel Ball Valves are suitable for high-temperature service up to 500°C or higher, depending on the metal used. The trade-off is that a metal seat does not provide a bubble-tight seal like a soft seat. The leakage rate for a metal-seated valve is typically Class IV or Class V according to ANSI FCI 70-2, while a soft-seated valve can achieve Class VI (bubble-tight). For applications that require absolute isolation at high temperature, a metal-seated valve with a secondary soft seal or a combination seat may be used. In our factory, we manufacture both soft-seated and metal-seated valves. We recommend a metal seat for temperatures above 250°C or for abrasive service. For temperatures between 200°C and 250°C, a PEEK seat provides the best balance of temperature resistance and sealing performance.

Summary for Piping Engineers and Valve Specifiers

The seat material determines the true temperature limit of a Stainless Steel Ball Valves. PTFE is limited to 180°C, RPTFE to 200°C, PEEK to 250°C, and metal to 500°C or higher. The pressure rating must be derated at high temperature, and the stem packing and O-rings must also be rated for the operating temperature. When specifying a valve for high-temperature service, consider the actual temperature at the valve seat, not just the nominal system temperature. A complete high-temperature configuration includes a PEEK seat, graphite packing, FKM O-rings, and a PEEK thrust washer. Zhejiang Bolaisi Valve Co., Ltd. has been manufacturing Stainless Steel Ball Valves for over 15 years and provides full temperature and pressure rating data for our products.

Zhejiang Bolaisi Valve Co., Ltd. manufactures Stainless Steel Ball Valves with PTFE, RPTFE, PEEK, and metal seats, in sizes from DN15 to DN200. We provide pressure-temperature charts, derating data, and material certificates for all of our products.
