How does Belt Pulleys structural design support stable equipment operation?
2026-09-08
When a conveyor belt starts slipping, or an industrial fan begins to vibrate excessively, the first component blamed is often the belt itself. But in many cases, the root cause is not the belt—it is the Belt Pulley. A misdesigned or poorly manufactured pulley can cause a cascade of problems: uneven belt wear, heat buildup, bearing failure, and premature replacement of the entire drive. This guide is written for maintenance engineers who need to understand how the structural design of Belt Pulleys affects the long-term stability of the equipment they support.
1. How Does the Pulley Rim Profile Affect Belt Tracking?

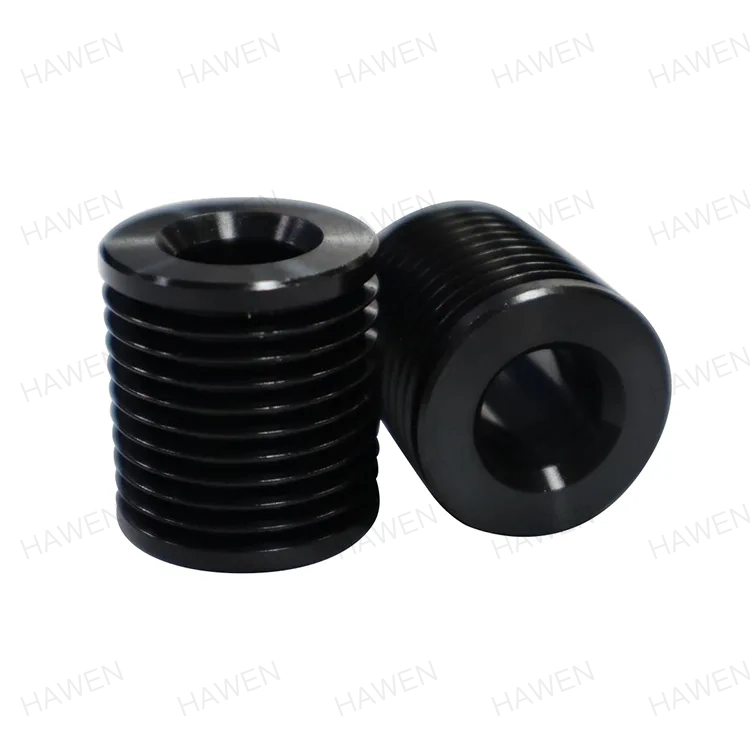

Belt tracking is the tendency of a belt to stay centered on the pulley. Poor tracking is one of the most common drive problems, and it is directly related to the rim profile. The rim of a Belt Pulley can have one of three basic profiles: flat, crowned, or grooved. A flat rim provides no inherent tracking force. A crowned rim, where the center of the rim is slightly higher than the edges, creates a self-centering effect. As the belt tries to move off center, it climbs the crown, which creates a restoring force that pushes it back. A grooved rim (used with V-belts) provides mechanical guidance. In our factory, we manufacture Belt Pulleys with a crown height of 1 to 2 percent of the face width, which provides adequate tracking for most flat belt applications. The crown profile is carefully machined to ensure a smooth transition from the center to the edge, preventing stress concentration on the belt.
Practical troubleshooting tip: If a belt consistently runs off to one side of the pulley, check the pulley alignment first. If the alignment is correct, measure the crown height. A crown that is worn or uneven will cause tracking issues. In many cases, the solution is to re-machine the crown rather than replace the entire Belt Pulley.
The rim profile also affects the belt's ability to transmit torque. A grooved pulley provides more positive engagement, which reduces slip and improves efficiency. However, grooved pulleys require more precise alignment to avoid belt wear. The choice of rim profile depends on the application: flat or crowned for fabric belts, grooved for V-belts, and a combination for special applications.
2. What Is the Role of Dynamic Balance in Preventing Vibration?
Vibration is the enemy of stable equipment operation. It causes bearing fatigue, loosens fasteners, and creates noise. A Belt Pulley that is out of balance will vibrate at its rotational frequency, and this vibration will be transmitted to the shaft, bearings, and supporting structure. The balance condition of a Belt Pulley is defined by the ISO 1940 balance grade. For general industrial applications, a grade of G6.3 is typically sufficient. For high-speed applications (above 3,600 RPM), a grade of G2.5 is recommended. In our factory, we balance every Belt Pulley to G6.3 as a minimum standard. For high-speed applications, we can balance to G2.5. The table below shows the recommended balance grades for different operating speeds.
| Application | Typical speed (RPM) | Recommended balance grade | Balance tolerance (gmm/kg) |
| Low speed conveyors, fans | 500 – 1,500 | G16 | 160 |
| General industrial drives | 1,500 – 3,600 | G6.3 | 63 |
| High speed compressors, blowers | 3,600 – 7,200 | G2.5 | 25 |
| Precision machinery, spindles | > 7,200 | G1.0 | 10 |
An unbalanced Belt Pulley can be identified by measuring the vibration level at the bearing housing. If the vibration is at the rotational frequency of the pulley, the problem is likely balance. In our factory, we balance each Belt Pulley on a dynamic balancing machine that measures both the amount of unbalance and its angular position. This allows us to correct the balance by adding or removing material at the appropriate location.
3. How Does the Hub and Shaft Fit Affect Torque Transmission?
The connection between the Belt Pulley and the shaft is critical for stable operation. A loose fit will cause fretting corrosion and wear, while a tight fit can cause stress on the shaft and the bearing. The standard fit for a Belt Pulley on a shaft is a press fit or a keyed fit. A keyed fit is the most common, with the key transmitting the torque and the hub providing the centering. The key should have a fit that is snug but not tight, to allow for assembly and disassembly. The table below shows the recommended fits for different shaft sizes.
| Shaft diameter (mm) | Recommended fit (H7/k6 or equivalent) | Key size (mm) | Maximum torque transmission (Nm) |
| 20 – 30 | H7/k6 | 6 x 6 | 150 |
| 30 – 40 | H7/k6 | 8 x 7 | 300 |
| 40 – 50 | H7/k6 | 10 x 8 | 550 |
| 50 – 65 | H7/m6 | 12 x 8 | 900 |
| 65 – 80 | H7/m6 | 14 x 9 | 1,400 |
In our factory, we machine the hub bore and keyway to precise tolerances. We also offer taper lock hubs, which provide a more secure fit and easier installation for larger Belt Pulleys. The taper lock system uses a split bushing that expands when the locking screws are tightened, creating a uniform clamping force around the shaft. This eliminates the fretting wear that can occur with standard keyed connections.
4. How Does the Pulley Material and Manufacturing Method Affect Long-Term Stability?
A Belt Pulley is usually made from cast iron, steel, or aluminum. Cast iron provides good damping properties, reducing vibration transmission. Steel provides higher strength and is used for high-load applications. Aluminum is used for light-duty applications where weight is a concern. The manufacturing method—casting, forging, or machining—also affects the structural integrity. In our factory, we use a combination of casting and CNC machining for our Belt Pulleys. The casting is done in our factory to ensure consistent material properties, and the machining is done to precise tolerances. We use a grade of grey cast iron (GG20 or GG25) that provides good damping and wear resistance. The flanges and ribs are designed to provide stiffness without excessive weight. The result is a Belt Pulley that is stable, durable, and resistant to deformation under load.
Frequently Asked Questions About Belt Pulley Design
Summary for Maintenance Engineers and Equipment Designers
The structural design of a Belt Pulley directly affects the stability of the equipment it serves. A well-designed pulley has a balanced rim profile, proper dynamic balance, accurate hub fit, and a generous transition radius. These design features reduce vibration, prevent belt tracking problems, and minimize wear on both the belt and the bearings. When you are evaluating a Belt Pulley for a new application or replacing an existing pulley, consider these design factors as you would the belt tension or the alignment. A high-quality pulley is not expensive, but the cost of a poorly designed pulley is measured in downtime and emergency repairs.
Zhejiang Hawen Electromechanical Co., Ltd. manufactures Belt Pulleys with precision machining, dynamic balancing, and material certification. We offer both standard and custom designs for a wide range of applications.
